Vestamatic IF SMI KNX 230VAC 16 Manual

1. Basic safety instructions

1.1 Intended use

1.2 Foreseeable misuse

1.3 Personnel's qualification

1.4 Signage

2. Product description

3. Declaration of conformity

4. Technical data
5. Installation / Mounting
5.1 Electrical connection – Overview
5.2 Configuration
5.3 Commissioning / Test run
6. Design and Function
6.1 Complete overview
6.2 Control and display elements
6.3 Local operation
7. Operation
7.1 Manual operation
7.2 Automatic operation
8. Troubleshooting
9. Re­learn motor addresses
10. Maintenance
11. Warranty
12. Disposal of waste
13. Service / Contact
DANGER!
Danger of life!
There is a risk of life when touching live parts.
– All tasks must be carried out exclusively by qualified personnel.
– Disconnect all power supplies before starting work.
Ä
CAUTION!
Material damage!
Incorrect wiring and configuration of the device can lead to dam­
age up to total failure.
– Ensure that the supply voltage corresponds to the specifica­
tions from the technical data for the device.
– Ensure that all external devices like push buttons and motors
are connected correctly according to the wiring diagrams.
– Refer to technical documentation of the motor manufacturer
for notes on required settings such as relais switching times.
– Refer to the software­helpfile for details on the configuration.
The motor control units are intended to control drives for blinds, awnings,
large louvre blades, roller shutters, windows, light domes, etc. within the
specified limits.
Any other use or extended use is considered to be improper.
© Vestamatic GmbH
G
IF SMI KNX
230 VAC / 24VDC 16
CONTENTS
1. Basic safety instructions
1.1 Intended use
IF SMI KNX 230VAC 16
IF SMI KNX 24VDC 16
Motor control for operating of
230VAC or 24VDC LoVo SMI drives
Installation and Operating Instructions
1.2 Foreseeable misuse
Any use for a purpose other than the above mentioned purpose is improper.
The risk of improper use or misuse is borne solely by the operator.
All types of claims due to damage arising from improper use are excluded.
1.3 Personnel's qualification
Improper use can cause considerable personal injury and material dam­
age!
All tasks for installation, connection and commissioning must be carried
out exclusively by a qualified electrician.
A qualified electrician is able to carry out work on electrical installations
due to her/his professional training, knowledge, and experience as well as
knowledge of the relevant standards and regulations. She/he can identify
and avoid possible dangers.
The qualified electrician is trained for the specific place of employment
in which she/he is working and is aware of the relevant standards and
regulations.
1.4 Signage
Symbol Meaning
Ä
General warning
Electrostatic discharge
p
CE label
2. Product description
Art.-no. Article description

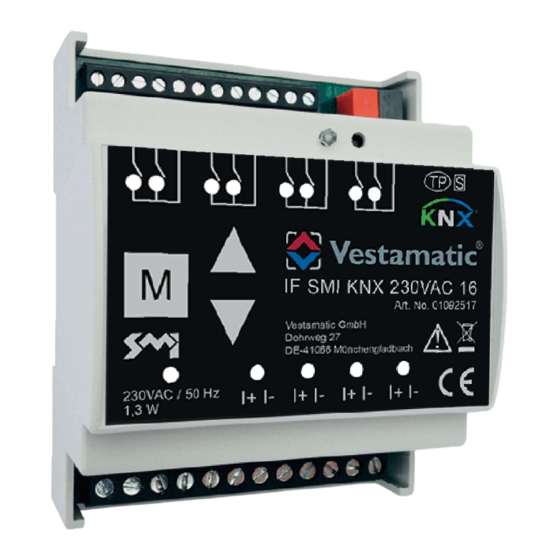

01092517 IF SMI KNX 230VAC 16
01092516 IF SMI KNX 24VDC 16
The motor control units are designed for the control of max. 16 LoVo drives
230 VAC or 24 VDC with SMI interface for blinds, awnings, large louvre
blades, roller shutters, windows, light domes, etc. in a KNX bus system.
Each device has 4 lines and inputs for the connection of 4 conventional
blind switches or 8 potential­free contacts.
Each channel or motor can be controlled individually via the KNX bus
and operating states, position and fault messages for the connected
drives / blinds can be transmitted.
3. Declaration of conformity
p
This product complies with the essential requirements. The
Declaration of Conformity concerning this product is available on
our website: www.vestamatic.com
1/4
G
IF SMI KNX 16
Art.-no.: 01092517
Art.-no.: 01092516
Subject to modifications.
