Microprocessor-powered motor controller for four sunshade controls
Standard 3-wire central input
Direct connection available for four Lovoline SMI / ME motors or 24VDC motors
Connection available for group button
Connection available for four individual buttons
Separate connection terminals for mains supply and central transmission
10 different operating modes can be set, incl. inching mode and intelligent
decentralised operation
Motor run time/tilting time can be individually set
Control via VRS radio remote control or VRS wall-mounted radio transmitter
(MC P4 LoVo VRS)
Control for creating sub-groups (GC 3-)
Ä
– Contact a professional electrician to install the control system.
– Check the control system for signs of mechanical damage after un-
packing. If you notice any shipping damage, do not start up the control
system and notify your supplier immediately.
– The control system should only be used for the purpose specified by
the manufacturer (refer to the operating instructions). Any changes or
modifications thereof are not permissible and will result in loss of all
warranty claims.
– If the control unit cannot be operated without presenting a hazard, it must
be switched off and prevented from being switched on unintentionally.
– When performing work on the windows, controls or connected shades,
protect them against unauthorised or unintentional operation.
Ä
WARNING!
Risk of injury due to improper installation and commissioning.
Improper installation and commissioning may lead to personal injury or
property damage.
Therefore:
– When connecting the device, observe the currently valid VDE standards
(in particular DIN VDE 0100/0700), your local power company's regula-
tions and the current accident prevention regulations.
– Connect the control in accordance with the wiring diagram.
– Only use central control with floating contact output.
Notes for professional electricians
1. Switch off the power supply.
2. Undo the housing cover screws and lift off the housing cover.
3. Use the four mounting holes at the edges of the housing to mount it.
4. Connect the power supply cables and external connections ac cord ing to the wiring
diagram. Do not lay cables above or below the PC board.
5. Set the desired operating mode.
6. Set the desired motor run time and the tilting time, if necessary.
7. Switch on the power supply.
8. Check the motor's direction of rotation and correct it, if necessary.
9. Replace the housing cover and tighten the housing cover screws.
© Vestamatic GmbH
G
MC P4 LoVo
MC P4 LoVo VRS
Art.-no.:
01077420 / 01077417
Short description
Accessories
Safety precautions
Assembly and installation
1/4
1/4
G
G

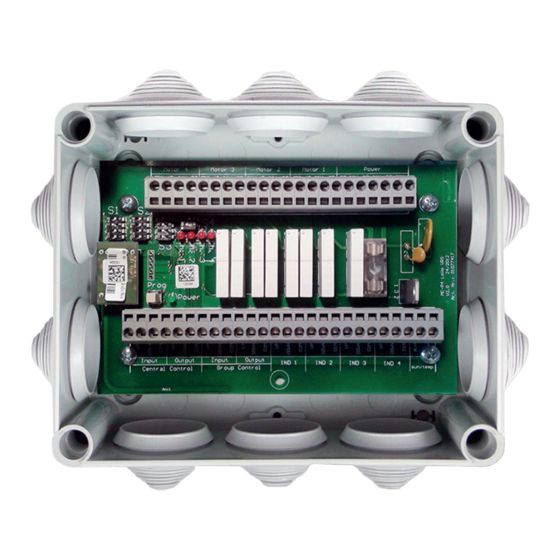

MC P4 LoVo
MC P4 LoVo VRS
Programmable motor controls for operating 4 sunshade devices
with group and individual controls, either wire-bound or
via 868 MHz radio link.

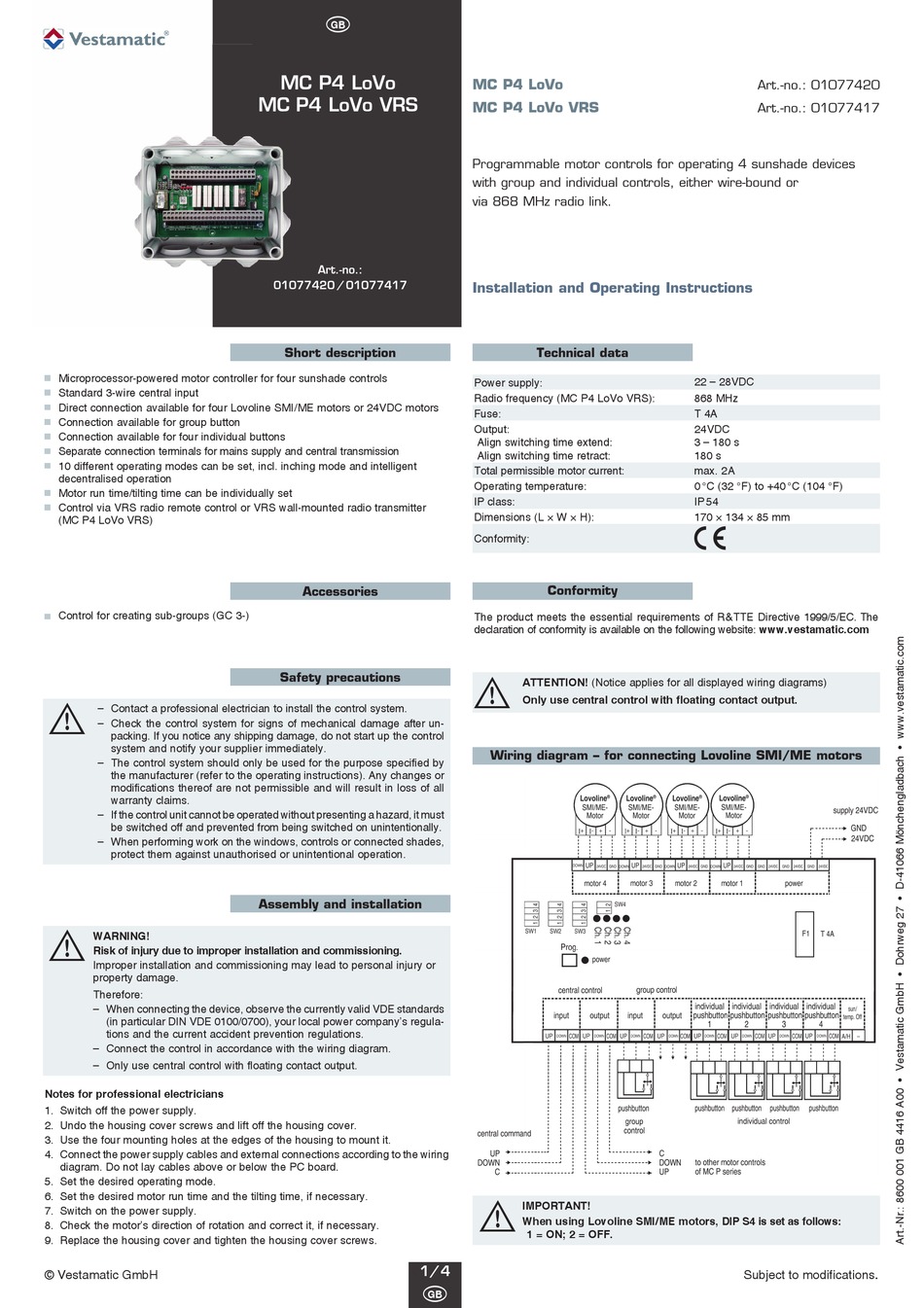

Installation and Operating Instructions
Technical data
Power supply:
Radio frequency (MC P4 LoVo VRS):
Fuse:
Output:
Align switching time extend:
Align switching time retract:
Total permissible motor current:
Operating temperature:
IP class:
Dimensions (L × W × H):
Conformity:
Conformity
The product meets the essential requirements of R & TTE Directive 1999 / 5 / EC. The
declaration of conformity is available on the following website: www.vestamatic.com
Ä
ATTENTION! (Notice applies for all displayed wiring diagrams)
Only use central control with floating contact output.
Wiring diagram – for connecting Lovoline SMI/ME motors
Ä
IMPORTANT!
When using Lovoline SMI / ME motors, DIP S4 is set as follows:
1 = ON; 2 = OFF.
MC P4 LoVo / VRS
Art.-no.: 01077420
Art.-no.: 01077417
22 – 28VDC
868 MHz
T 4A
24VDC
3 – 180 s
180 s
max. 2A
0 °C (32 °F) to +40 °C (104 °F)
IP 54
170 × 134 × 85 mm
p
Subject to modifications.
