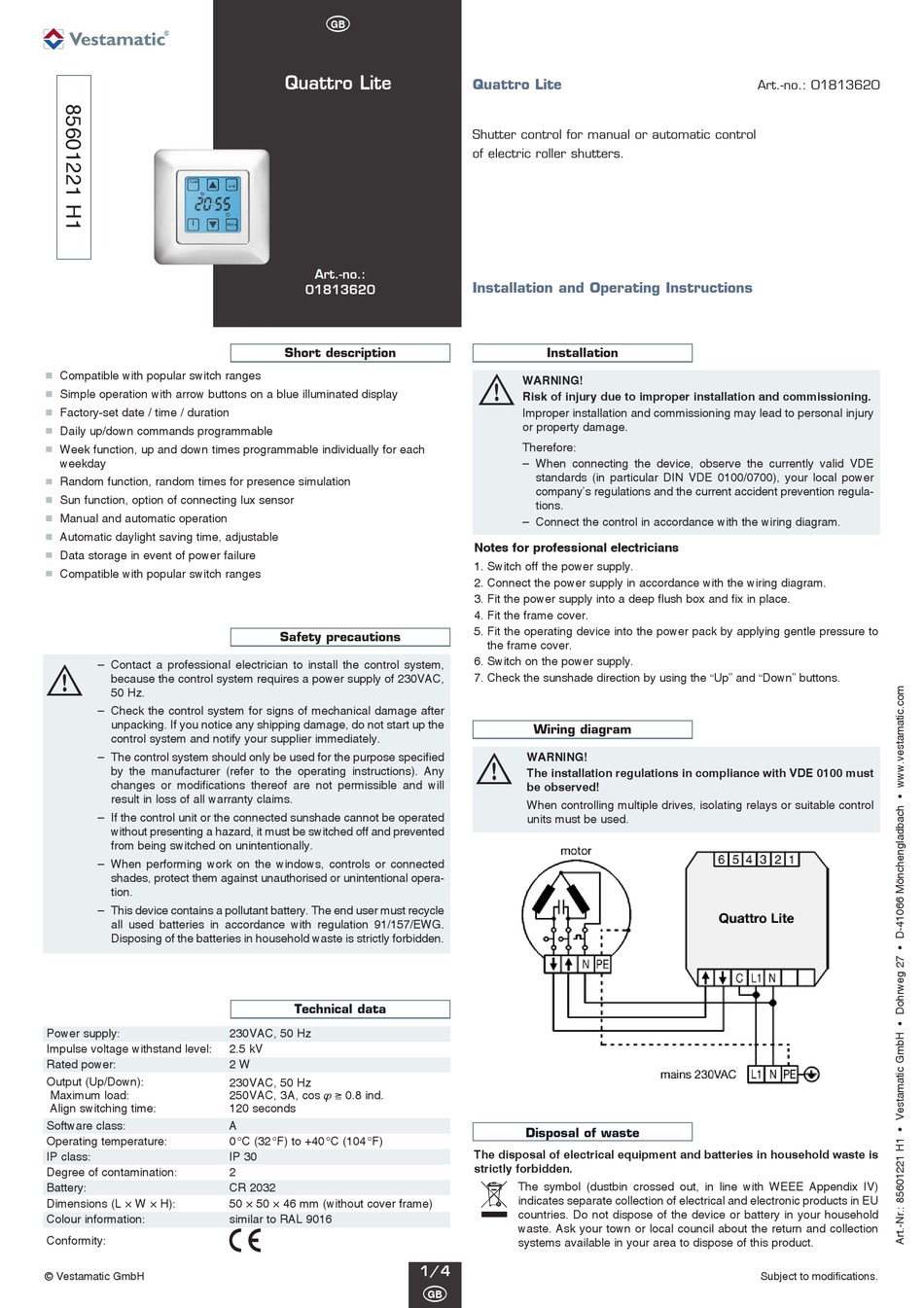

Vestamatic Quattro Lite Installation And Operating Instructions

Compatible with popular switch ranges
Simple operation with arrow buttons on a blue illuminated display
Factory­set date / time / duration
Daily up/down commands programmable
Week function, up and down times programmable individually for each
weekday
Random function, random times for presence simulation
Sun function, option of connecting lux sensor
Manual and automatic operation
Automatic daylight saving time, adjustable
Data storage in event of power failure
Compatible with popular switch ranges
– Contact a professional electrician to install the control system,
Ä
because the control system requires a power supply of 230VAC,
50 Hz.
– Check the control system for signs of mechanical damage after
unpacking. If you notice any shipping damage, do not start up the
control system and notify your supplier immediately.
– The control system should only be used for the purpose specified
by the manufacturer (refer to the operating instructions). Any
changes or modifications thereof are not permissible and will
result in loss of all warranty claims.
– If the control unit or the connected sunshade cannot be operated
without presenting a hazard, it must be switched off and prevented
from being switched on unintentionally.
– When performing work on the windows, controls or connected
shades, protect them against unauthorised or unintentional opera­
tion.
– This device contains a pollutant battery. The end user must recycle
all used batteries in accordance with regulation 91/157/EWG.
Disposing of the batteries in household waste is strictly forbidden.
Power supply:
Impulse voltage withstand level:
Rated power:
Output (Up/Down):
Maximum load:
Align switching time:
Software class:
Operating temperature:
IP class:
Degree of contamination:
Battery:
Dimensions (L × W × H):
Colour information:
Conformity:
© Vestamatic GmbH
G
Quattro Lite
Art.-no.:
01813620
Short description
Safety precautions
Technical data
230VAC, 50 Hz
2.5 kV
2 W
230VAC, 50 Hz
250VAC, 3A, cos f > 0.8 ind.
120 seconds
A
0 °C (32 °F) to +40 °C (104 °F)
IP 30
2
CR 2032
50 × 50 × 46 mm (without cover frame)
similar to RAL 9016
p
Quattro Lite
Shutter control for manual or automatic control
of electric roller shutters.
Installation and Operating Instructions
Installation
Ä
WARNING!
Risk of injury due to improper installation and commissioning.
Improper installation and commissioning may lead to personal injury
or property damage.
Therefore:
– When connecting the device, observe the currently valid VDE
standards (in particular DIN VDE 0100/0700), your local power
company's regulations and the current accident prevention regula­
tions.
– Connect the control in accordance with the wiring diagram.
Notes for professional electricians
1. Switch off the power supply.
2. Connect the power supply in accordance with the wiring diagram.
3. Fit the power supply into a deep flush box and fix in place.
4. Fit the frame cover.
5. Fit the operating device into the power pack by applying gentle pressure to
the frame cover.
6. Switch on the power supply.
7. Check the sunshade direction by using the "Up" and "Down" buttons.
Wiring diagram
Ä
WARNING!
The installation regulations in compliance with VDE 0100 must
be observed!
When controlling multiple drives, isolating relays or suitable control
units must be used.
Disposal of waste
The disposal of electrical equipment and batteries in household waste is
strictly forbidden.
The symbol (dustbin crossed out, in line with WEEE Appendix IV)
É
indicates separate collection of electrical and electronic products in EU
countries. Do not dispose of the device or battery in your household
waste. Ask your town or local council about the return and collection
systems available in your area to dispose of this product.
1/4
G
Quattro Lite
Art.-no.: 01813620
Subject to modifications.
