2.2

Jetronix-Eco Main Parts Description

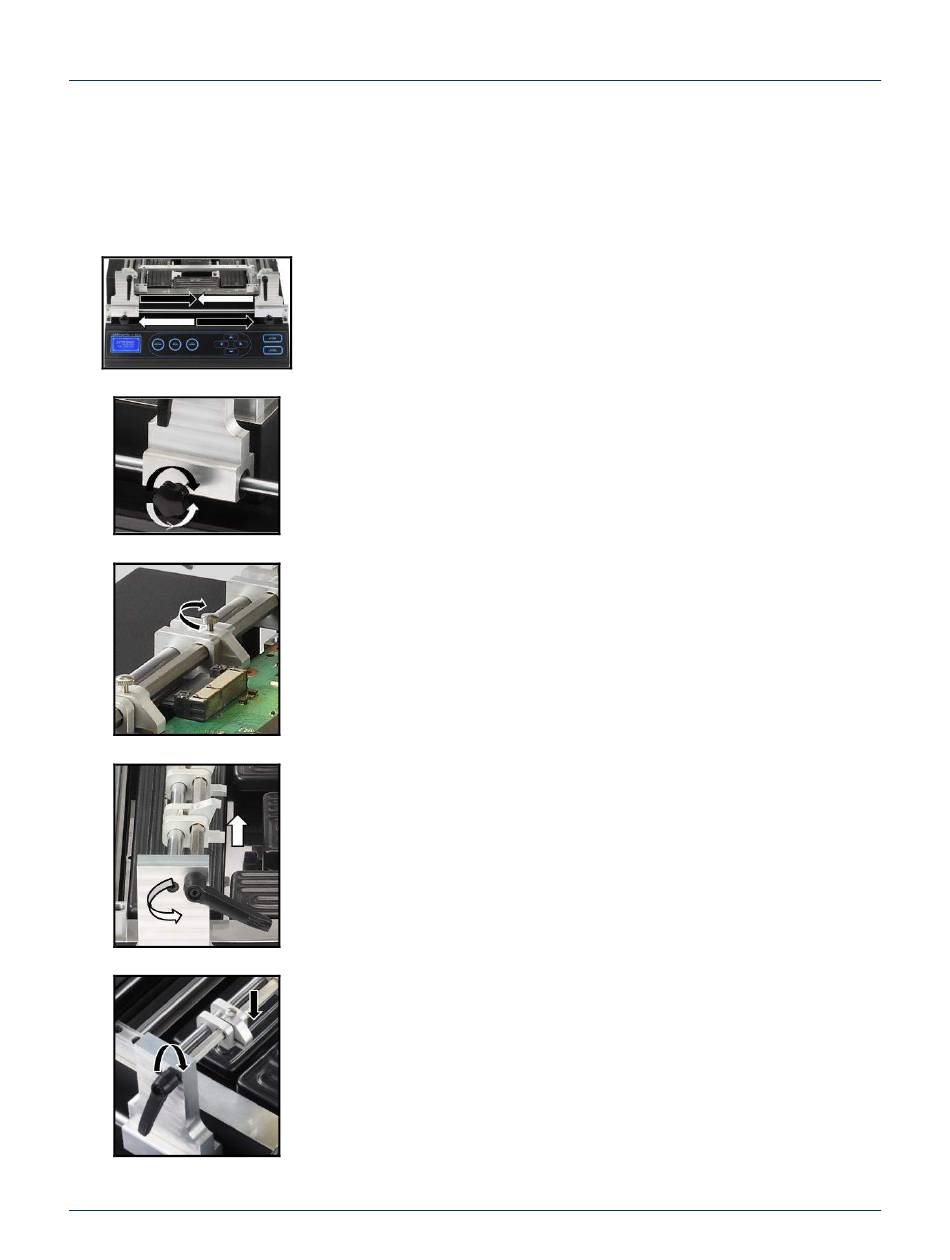

2.2.1 X/Y Movable PCB Holder
Page 7 of 22
The X/Y movable PCB holder, the base equipped
with bearing to guarantee smooth movement.
The maximum PCB size is 219mm x 315mm
The PCB holder base fastener is known to stop
the movement after placing the PCB over the
holder.
PCB clamp, to tighten the PCB over the holder
and the fastener screw is to prevent the PCB
from moving or sag during the heating process
PCB clamp to be open before placing the PCB.
There are four movables along the clamp rail, for
fixing the PCB from its flat edges.
PCB clamp to be closed after placing the PCB.
The used clamps should not be closed over or
make minimal stress to any PCB comments.
