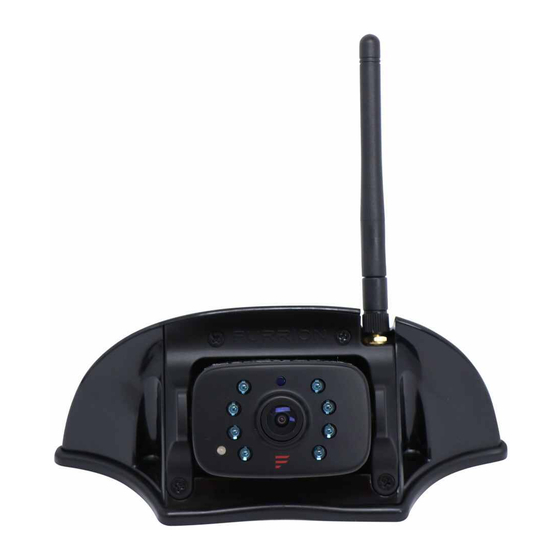

Furrion Vision S FCN48TASF Installation Manual

Sharkfin Camera

Installation Guide

Models: FCN48TASF
This Installation Guide will help you install and adjust the camera
properly. For further support and to download the complete
user manual please visit
https://furrion.com/pages/download-navigation.
IG-FCM00008_Installation Guide for Sharkfin Camera.indd 2
Prepare
1. Ensure that all items in your package match those shown
in the 'What's in the box' section on the packaging box.
2. Before installation, please read and understand all the
important safety-related instructions from the online user
manual.
3. Prepare tools you may need, including a #2 Phillips head
screwdriver, sealant, insulation tape, pencil and/or a
5/8" hole saw (needed only when drilling a new hole).
Mount bracket
Note: Skip this section if your RV is pre-installed with a
bracket for camera installation.
IMPORTANT: Before any installation and wiring operation,
remove the key from the ignition and isolate the 12V / 24V
power source.
Always seek professional assistance if you are unsure about
the installation and wiring operation.
1. Determine the mounting location on your RV. Ensure
that there is no obstacle blocking the camera view. The
recommended mounting location is shown below:
− For rear camera position:
At the top center on the rear of your RV and as high as
practicable (2" below the red marker light if available).
− For doorway camera position:
Above the top of the door.
Note: The RV shown here is for reference only. You can
mount Furrion Vision S products onto various types of long
vehicles such as trailers and Class A/B/C motorhomes.
Doorway camera position
≥ 2"
Rear camera
position
More information https://www.caravansplus.com.au

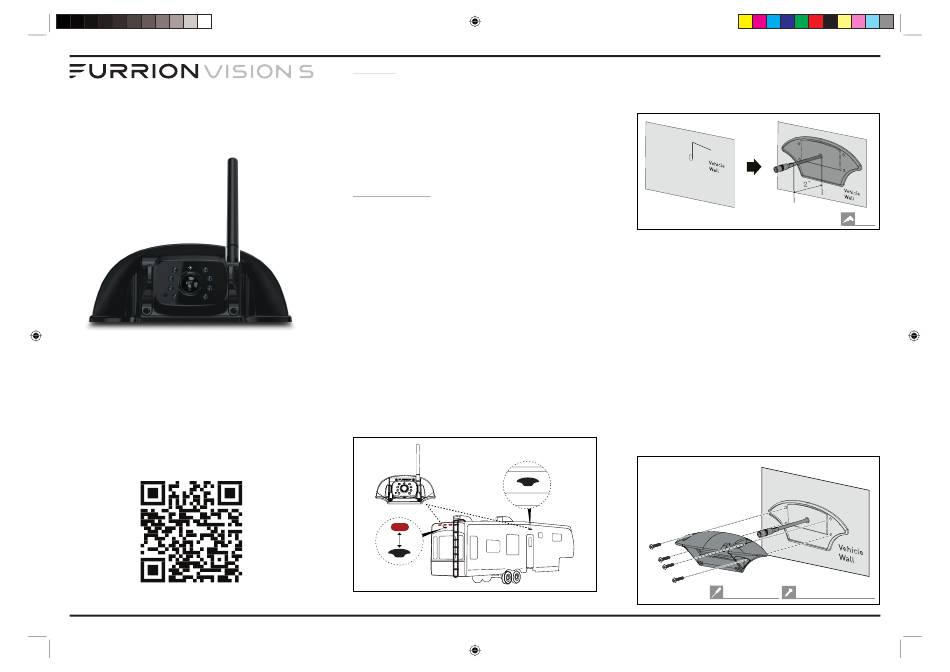

2. Use the gasket as a template to mark a basic outline on
the chosen location with a pencil. Drill a 5/8" center hole.
Then route the female connector of the camera power
cable through the hole and leave 2 inches of slack.
5 /
"
8
3. Connect the bare ends of the camera power cable to the
nearest 12V / 24V power supply.
− For rear camera position:
You are suggested to share the same power line from
the nearest marker light (such as the red marker light
at the top center on the rear if available).
− For doorway camera position:
You are suggested to share the power line from your
RV porch light (or the nearest light source from the RV/
trailer battery).
Note: Ensure that the fuse on the connected power line
provides additional 1A fusing current for the camera.
Ensure proper cable isolation for all bare ends (e.g., by using
insulation tape).
4. Fix the gasket and bracket with four #6x3/4" flat self-
tapping screws. If the mounting surface is uneven, apply
sealant around the gasket for better sealing.
#2 Phillips head #6x 3 /
5/8"
" flat self-tapping
4
