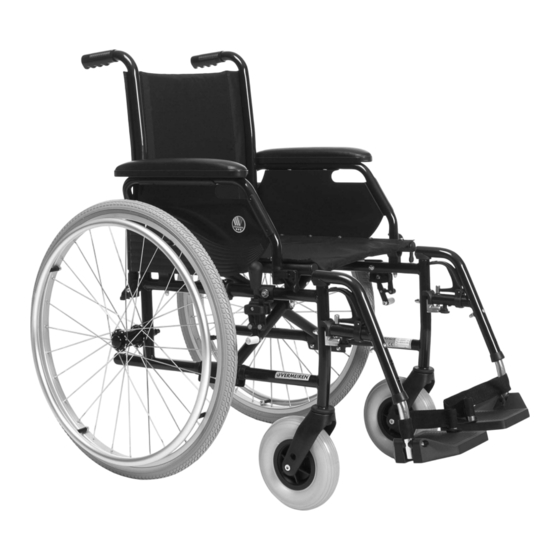

Vermeiren Jazz S50 Instruction Manual

Hide thumbs Also See for Jazz S50:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
V RM IR N
Jazz S50
I N S T R U C T I O N M
N U
L
N Á V O D K O B S L U Z E

Advertisement

Table of Contents
loading

Related Manuals for Vermeiren Jazz S50

Summary of Contents for Vermeiren Jazz S50

  • Page 1 V RM IR N Jazz S50 I N S T R U C T I O N M N Á V O D K O B S L U Z E...

  • Page 3: Table Of Contents

    Jazz S50 2019-04 Contents Contents......................1 Preface ......................2 Your product ..................3 1.1 Accessories .................... 3 Before use ................... 4 2.1 Intended Use ..................4 2.2 Explanation of symbols ................5 2.3 General safety instructions ..............5 Using your wheelchair ................. 6 3.1 Carrying the wheelchair .................

  • Page 4: Preface

    Damage to your product caused by improper use or lack of maintenance will cause the warranty to lapse. This manual reflects the latest product developments. Vermeiren has the right to implement changes to this type of product without any obligation to adapt or replace similar products previously delivered.

  • Page 5: Your Product

    11 = Footrests 12 = Seat 13 = Location identification plate 1.1 Accessories The following accessories are available for the Jazz S50:  Travel wheels (B86)  Armrests (B05) Contact your specialist dealer about other accessories. He will gladly advise you.

  • Page 6: Before Use

     When used on mats, carpeted floors or loose floor coverings, the floor covering can get damaged.  Use only Vermeiren approved accessories.  The manufacturer is not liable for damage caused by the lack of or improper service or as a result of not following instructions from this manual.

  • Page 7: Explanation Of Symbols

    Jazz S50 2019-04 2.2 Explanation of symbols Maximum mass Indoor and outdoor use Maximum Safe Slope CE conformity Type designation General safety instructions  To prevent injury and/or damage to your wheelchair, make sure that no objects and/or body parts are caught in the spokes of the driving wheels.

  • Page 8: Using Your Wheelchair

    Jazz S50 2019-04 Using your wheelchair This chapter describes the everyday use. These instructions are for the user and the specialist dealer. The wheelchair is delivered fully assembled by your specialist dealer. The instructions intended for the specialist dealer on how to set up the wheelchair are given in §4.

  • Page 9: Mounting Or Removing Of The Footrests

    Jazz S50 2019-04 3.4 Mounting or removing of the footrests Risk of injury CAUTION  Check that the footrests are securely locked in place before use.  Keep objects away from the footrests swing range while mounting or removing the footrests.

  • Page 10: Mounting Or Removing Of Armrests

    Jazz S50 2019-04 3.6 Mounting or removing of armrests Risk of injury WARNING  Check that the armrests are securely locked in place before use.  Keep fingers and clothes away from the bottom side of the armrest. The armrests of the wheelchair can be mounted by following instructions.

  • Page 11: Transfer In And Out The Wheelchair

    Jazz S50 2019-04 3.7 Transfer in and out the wheelchair Risk of injury and/or damage WARNING  In case you cannot perform the transfer in a safe manner, ask someone to assist you.  Do not stand on the foot plates.

  • Page 12: Negotiating Steps Or Curbs

    Jazz S50 2019-04 1. If available on the wheelchair, wear the safety belt. 2. Do not attempt moving on too high slopes. The maximum slope angles (upwards and downwards) are mentioned in §6. 3. Ask an attendant to help you moving on the slope.

  • Page 13: Transport In The Car

    Jazz S50 2019-04 Higher curbs are negotiated backwards: 1. Turn the wheelchair to have the rear wheels facing the curb. 2. Lean backwards and move your centre of gravity above the rear wheels. 3. Ask the attendant to pull the wheelchair on the curb.

  • Page 14: Use Of The Wheelchair As Seat In A Motor Vehicle

    Jazz S50 2019-04 3.13 Use of the wheelchair as seat in a motor vehicle WARNING  The wheelchair has passed the crash of ISO 7176-19: 2008 and, as such, has been designed and tested for use only as forward-facing seat in a motor vehicle.
  • Page 15 Jazz S50 2019-04 Steps to secure the wheelchair user: 1. Remove both arm rests. 2. If present, attach the wheelchair's pelvic belt. 3. Attach the occupant restraint belts according to the instructions of the strap- system manufacturer. 4. Wear the pelvic belt low across the front of the pelvis, so that the angle of the pelvic belt is within the preferred zone of 30°...

  • Page 16: Installation And Adjustment

    Installation and adjustment The instructions in this chapter are for the specialist dealer. The Vermeiren Jazz S50 has been designed as wheelchair with a minimum of adjustments. There is no need for extra stock of spare parts. To find a service facility or specialist dealer near you, contact the nearest Vermeiren facility.

  • Page 17: Adjust The Brakes

    Jazz S50 2019-04 4.4 Adjust the brakes Risk of injury – Brakes may only be adjusted by your specialist dealer. WARNING Adjust the brakes according to the following rules: 1. Install the wheels according to § 3.2. 2. Disconnect the brakes by pulling lever (1) backwards (Fig A).
  • Page 18 Jazz S50 2019-04 If you want to change the tyres or inner tubes, you should note the following: 1. Let all the air out of the inner tube. 2. Insert a tyre lever between the tyre and the rim. 3. Slowly and gently push the tyre lever downwards. This will pull the tyre over the edge of the rim.

  • Page 19: Maintenance

    CAUTION Repairs and replacements may only be undertaken by trained persons and only genuine replacement parts of Vermeiren should be used. The service frequency depends on the frequency and intensity of use. Contact your dealer to agree to a common timetable for inspection/maintenance/repair.

  • Page 20: Troubleshooting

    Jazz S50 2019-04 5.2.2 Cleaning Risk of damage by moisture CAUTION  Never use a hose or high-pressure cleaner to clean the wheelchair. Wipe all rigid parts of the wheelchair with a damp cloth (not drenched). If necessary, use a mild soap, suitable for varnishes and synthetics.

  • Page 21: Technical Specifications

    Jazz S50 2019-04 Technical specifications The technical details below are only valid for this wheelchair, at standard settings and optimal ambient conditions. Take these details into account during use. The values are no longer applicable if your wheelchair has been modified, damaged or suffers from severe wear.
  • Page 22 Jazz S50 2019-04 Front location of armrest structure 310 mm Hand rim diameter 535 mm Horizontal location of axle (deflection) 10 mm Minimum turning diameter 1820 mm Diameter Rear wheels 24" (optional 12”) Tyre pressure, rear (driving) wheels Max. 3.5 bar...
  • Page 23 Service registration form Service registration form This product (name): …………………………………….. was inspected (I), serviced (S), repaired (R) or disinfected (D): By (stamp): By (stamp): By (stamp): Kind of work: I / S / R / D Kind of work: I / S / R / D Kind of work: I / S / R / D Date: Date:...
  • Page 24 No part of this manual may be reproduced in any form what so ever (print, photocopy, microfilm or any other process) without written permission of the publisher, or processed, duplicated or distributed by using electronic systems. © Vermeiren Group 2019...
