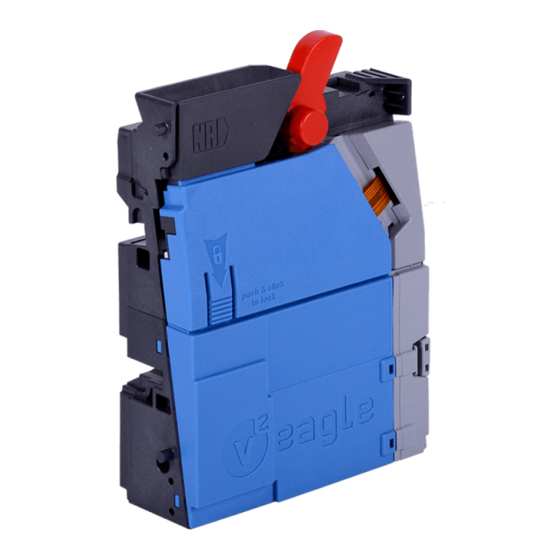

NRI v2 eagle Operating Instructions Manual

5“ coin validator with bdta/bacta interface
Hide thumbs Also See for v2 eagle:
Table of Contents

Advertisement

Quick Links

Operating Instructions
5" Coin Validator
with BDTA/BACTA Interface
06.14 Hns/GS/Roe
BA_v2_eagle_parallel_EN_1-0
CPI Crane Payment Innovations GmbH | Zum Fruchthof 6 | 21614 Buxtehude | Germany
Web: info@cranepi.com | www.cranepi.com | Phone: +49 (0) 41 61-729-0 | Fax: +49 (0) 41 61-729-115

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the v2 eagle and is the answer not in the manual?

Questions and answers

Related Manuals for NRI v2 eagle

Summary of Contents for NRI v2 eagle

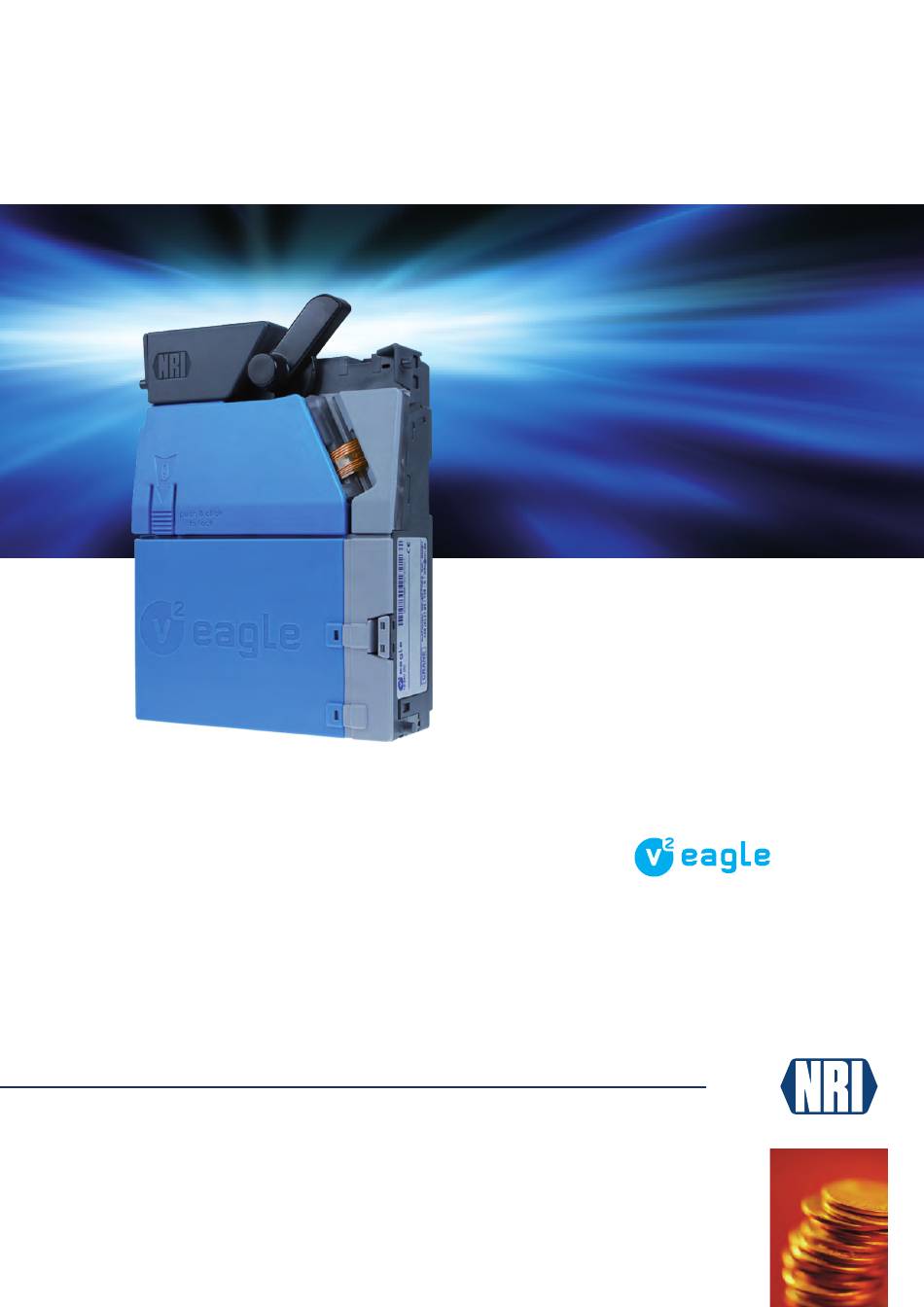

  • Page 1 Operating Instructions 5“ Coin Validator with BDTA/BACTA Interface 06.14 Hns/GS/Roe BA_v2_eagle_parallel_EN_1-0 CPI Crane Payment Innovations GmbH | Zum Fruchthof 6 | 21614 Buxtehude | Germany Web: info@cranepi.com | www.cranepi.com | Phone: +49 (0) 41 61-729-0 | Fax: +49 (0) 41 61-729-115...

  • Page 3: Table Of Contents

    able of conTenTs Table of contents Revision protocol About ... About these operating instructions 2.1.1 Text conventions 2.1.2 Additional useful technical documentation About the v eagle 2.2.1 The v eagle features 2.2.2 Models 2.2.2.1 Coin entry and return area 2.2.2.2 Internal 4-fold or 5-fold sorting mechanism Safety instructions Proper use...
  • Page 4 Sorting accepted coins (option) 5.7.1 Sorting principle of 5-fold in-line sorter (Ex8xPx. ..) (not with BACTA interface) 5.7.1.1 Sorting with NRI 4-way manifold (option) 5.7.2 Sorting principle of 4-fold sorter (Ex7xPx. ..) (not with BDTA interface) 5.7.2.1 Sorting with Money Controls 4-way manifold 5.7.2.2...
  • Page 5 able of conTenTs Operation Selecting the memory block ... 7.1.1 ... using the switch block on the coin validator 7.1.2 ... via machine control (option, only BDTA interface) Inhibiting coins/activating narrow coin channel 7.2.1 Inhibit functions – switch block S1 7.2.2 Inhibit functions –...
  • Page 6 BA_v2_eagle_parallel_EN_1-0...

  • Page 7: Revision Protocol

    evision pRoTocol Revision protocol Version Revision Chapters/sections concerned _1-0 First official version BA_v2_eagle_parallel_EN_1-0 BA_v2_eagle_parallel_EN_1-0...

  • Page 8: About

    bouT About ... This chapter is intended to provide a general overview of the advantages and options of the coin validator v eagle with parallel interface. The first section, however, is designed to help you navigate easily within these operating instructions. About these operating instructions These operating instructions describe the design and operation of the electronic 5" coin validator eagle with parallel BDTA or BACTA interface.

  • Page 9: Additional Useful Technical Documentation

    bouT 2.1.2 Additional useful technical documentation Apart from the operating instructions you already have, further documentation is available for the eagle, e.g. documentation concerning configuration. All documentation can be downloaded from the Crane Payment Innovations website (www.cranepi.com, Support) as pdf file. About the v eagle The v eagle coin validator with parallel BDTA/BACTA interface in the standardized 5“ format uses the patented multi-frequency technology (MFT) for reliable coin validation. Communication with the vending machine control system takes place via the 16-pin BDTA or the 17-pin BACTA connector.

  • Page 10: Models

    • Front entry and bottom return (E3xxPx. ..) The coin is inserted into the device from the side and returned, if not accepted, via the return area at the bottom. The coin validator with front entry generally has an NRI front plate fitted to the left-hand side of the device . However, this model is (cf.

  • Page 11: Safety Instructions

    afeTy insTRucTions Safety instructions Before starting up the device for the first time, please read these instructions and in particular the safety instructions carefully at least once. This is to ensure that you have understood the contents of this manual and how to operate the coin validator. Proper use The electronic 5“ coin validator v eagle with parallel BDTA or BACTA interface is intended for use in slot and vending machines with parallel BDTA or BACTA interface and is designed to check the coins inserted into the machine for specific properties and to accept (and sort) or reject them.

  • Page 12: Design

    esign Design This chapter describes • the main parts the v eagle consists of, and • all parts required for the operation of the coin validator. Overview of the front entry model with • 5-fold in-line sorter and • 4-fold sorter 4.1.1 v²...

  • Page 13: Eagle With 4-Fold Sorter

    esign 4.1.2 v² eagle with 4-fold sorter v² eagle BDTA v² eagle BACTA (not yet available) Fig. 2: Design – v eagle with 4-fold sorting mechanism 1 Coin insert funnel 10 Interface – service/configuration 11 Interface – sorter override (BACTA) 2 Coin return lever 12 Interface –...

  • Page 14: Coin Path (5-Fold In-Line Sorter Only)

    esign Coin path (5-fold in-line sorter only) Top entry Front entry with bottom return ... front return Fig. 3: Coin path (5-fold in-line sorter) BA_v2_eagle_parallel_EN_1-0...

  • Page 15: Product Label

    esign Product label The label of the coin validator [Fig. 1/10] [Fig. 2/4] contains all data defining the device such as device number and type, operating voltage and customer-specific currency and coin programming: 0010118880/0010/0004 E181P4.00/0.S XXXXXXXXXXXXXXXXXX XXXXXXXX E0P40-EU---20000A FW: 445-04.46 |BDTA| 12-24V DC EUR -,10 / -,20 / -,50 / 1,- / 2,- EUR -,10 / -,20 / -,50 / 1,- / 2,- Crane Payment Solutions GmbH +49 (0) 41 61/729-0 | info@craneps.com 11/13...

  • Page 16: Model Number Decoding

    esign MODEL NUMBER DECODING 4.3.1 Model number decoding 0010118880/0010/0004 E178C3.00/0.EFPS XXXXXXXXXXXXXXXXXX XXXXXXXX E181C0.00/0.EPS E0C30-EUEU-22002A |ccTalk| FW: 445-04.46 12-24V DC EUR -,10 / -,20 / -,50 / 1,- / 2,- EUR -,10 / -,20 / -,50 / 1,- / 2,- Crane Payment Solutions GmbH 11/13 +49 (0) 41 61/729-0 | info@craneps.com MADE IN GERMANY...

  • Page 17: Label - Switch Functions/Coin Channel Assignment

    esign Label – switch functions/coin channel assignment In order to enable easy operation of the coin validator E0P40-EU---20000A there is a label [Fig. 1/14] [Fig. 2/15], on the rear Block A Block B of the device briefly showing the functions of the EUR -,05 EUR -,10 DIL switches at the bottom (cf.

  • Page 18: Switch Blocks

    esign Switch blocks The coin validator has two switch blocks [Fig. 1/13] [Fig. 2/14] with ten DIL switches each (S1.1-10 and S2.1–10) on the rear of the device. The DIL switches can be used to set certain device functions: To find out how to set the individual functions with the help of the switch block, refer to Chap.

  • Page 19: Coin Return Lever

    esign Coin return lever The return lever [Fig. 1/2] [Fig. 2/2] on the top of the device is operated using the return button on the machine when coins which have been inserted are to be returned or e.g. a jam caused by coins which have become stuck needs to be removed.

  • Page 20: Function

    Since in most cases not all coin channels are assigned by customized factory programming, further coin types and the desired information can be assigned to these free channels at any time using the NRI configuration and service tools. Existing configurations can be changed. Eight coin channels are intended to be used for the teach mode. In these teach channels new tokens/coin types can be taught also without configuration and service tools, directly on the coin validator using the switch blocks.

  • Page 21: Memory Blocks

    uncTion Memory blocks The v eagle manages two separately programmed (memory) blocks A and B (cf. Chap. 4.3 Product . 16 coin channels with different coin types (also currencies), sorting information label, p. 15) etc. can be assigned to each block. Only one block at a time can be active and used for coin measurement and further coin processing.

  • Page 22: Transmission Of Coin Values Via Coin Pulses And Coin Signal Lines

    uncTion Transmission of coin values via coin pulses and coin signal lines By default each coin accepted by the coin validator sends a pulse to the machine control via the coin signal line assigned to it. A pulse signals to the machine control that a coin has been accepted.

  • Page 23: Tow Assignments Of The Bacta Machine Interface (Standard And Binary Mode)

    uncTion 5.4.3 Tow assignments of the BACTA machine interface (standard and binary mode) In order to be able to run the parallel or binary mode, two different functions are assigned to the 17 pins of the BACTA machine interface on the rear of the coin validator, except for the select line (pin 8).

  • Page 24: Coin Inhibition/Activation Of Narrow Coin Channels

    uncTion Coin inhibition/activation of narrow coin channels If coins are no longer to be accepted for payment on the machine you can either • inhibit coin acceptance completely, • inhibit all coin channels of a certain coin to ensure that this coin is no longer accepted, or • inhibit the normal coin channel of a certain coin so that this coin is accepted only in the narrow channel.

  • Page 25: Sorting Accepted Coins (Option)

    uncTion Sorting accepted coins (option) To direct accepted coins either to the cash-box or an external sorting device, e.g. change tubes or hoppers, the coin validator can be equipped with a 5-fold in-line sorter or a 4-fold sorter at the coin outlet. The chutes are controlled via a flap sorting system using three solenoids. In this section you learn all about the principle of • Longitudinal sorting –...

  • Page 26: Sorting With Nri 4-Way Manifold (Option)

    Sorting with NRI 4-way manifold (option) For the purpose of splitting-up and for better transport of the sorted coins you have the option of an NRI 4-way manifold which can be screwed to the coin validator from the bottom. This manifold is primarily used in AWP and SWP slot machines.

  • Page 27: Sorting Principle Of 4-Fold Sorter (Ex7Xpx

    uncTion 5.7.2 Sorting principle of 4-fold sorter (Ex7xPx. ..) (not with BDTA interface) The individual coin types can be distributed to the four sorting chutes independent of their dimensions. Each chute can be defined as cash box chute. Which coin is sorted into which of the chutes is determined by customized factory programming or set via the machine control system.

  • Page 28: Sorting With Money Controls 4-Way Manifold

    uncTion 5.7.2.1 Sorting with Money Controls 4-way manifold For the purpose of splitting-up and for better transport of the sorted coins you have the option of a Money Controls 4-way manifold which can be screwed to the coin validator from the bottom. This adapter is primarily used in AWP and SWP slot machines.

  • Page 29: Sorting With Active Money Controls 8-Way Manifold

    uncTion 5.7.2.2 Sorting with active Money Controls 8-way manifold For applications which require 8-fold sorting it is possible to mount a Money Controls 8-way manifold below the coin validator in the vending machine (cf. . This active 8-way Chap. 10.3.2 Manifolds/sorters, p. 52) sorter splits up the four sorting chutes of the coin validator into pairs of two each.

  • Page 30: Sorter Override For Tube-Full Signal Via

    uncTion 5.7.3 Sorter override for tube-full signal via ... 5.7.3.1 ... Single inhibit lines of BDTA interface If the machine control shall sort coins into the cash box chute or into an override sorting chute when the external sorting device sends a "full" signal, the coin validator can be programmed in the factory in such a way that, depending on the status of the single inhibit signal line 6 (pin 4) (high/low), the single inhibit signal lines 1–5 either • inhibit coins by default (single inhibit signal line 6 = low, single inhibit lines 1–5 = high) or...

  • Page 31: Manipulation Detection (Option)

    uncTion Manipulation detection (option) In case manipulation is detected while a coin is being accepted the coin validator emits a foul signal and a string signal as an option. 5.9.1 Foul signal (only v² eagle BACTA) The coin validator reports a manipulation of the acceptance gate by transmitting a foul signal (pulse length: at least 600 ms) via all signal lines in the standard mode (in the binary mode: via all signal lines except for the strobe line).

  • Page 32: Start-Up

    TaRT Start-up When carrying out any assembly and installation work on the coin validator, always observe the following safety instructions: • The coin validator must only be connected by a trained electrician. • The coin validator is not suited for outdoor use. • Never use the coin validator if there is damage to the device or the connecting cables.
  • Page 33 TaRT 5-fold in-line sorter 4-fold sorter (not yet available) 1 Switch block 2 Interface – machine (BDTA) 3 Mounting stud Fig. 12: BDTA installation 5-fold in-line sorter 4-fold sorter 1 Switch block 2 Interface – machine (BACTA) 3 Mounting stud 4 Interface –...

  • Page 34: Operation

    peRaTion Operation This chapter describes how to operate the coin validator, i. e. setting of certain functions on the coin validator: • Selecting a memory block • Inhibiting coins/activating narrow coin channel • Teaching coin channels in teach mode (option) The settings which are made directly on the coin validator are described.

  • Page 35: Inhibiting Coins/Activating Narrow Coin Channel

    peRaTion Inhibiting coins/activating narrow coin channel Using the two switch blocks on the coin validator you can inhibit on site each of the 16 coin channels of the activated memory block or each coin assigned to certain coin channels, which means that the inhibited channels are not used for payment on the machine: • Accept coin unrestrictedly: all channels assigned are enabled • Narrow the acceptance band of a coin: inhibit normal channel...
  • Page 36 peRaTion Example The coin validator shall not use coin channels 3 and 10 for coin acceptance, so that coin channels 3 and 10 must be inhibited With this setting, coin channels 3 and 10 are no longer used! If one normal and one narrow coin channel are programmed for a coin type on the coin validator, you must inhibit the normal coin channel as described above to activate the narrow coin channel.

  • Page 37: Teaching Coin Channels In Teach Mode (Optional)

    peRaTion Teaching coin channels in teach mode (optional) If the v eagle has been programmed accordingly in the factory, up to eight coin channels (teach channels) can be taught on the coin validator via the bottom switch block in order to create new acceptance bands.
  • Page 38 peRaTion To save with the normal acceptance band: Reset DIL switch S2.9 to OFF (down). The system indicates successful saving with a single actuation of the acceptance gate and an error at saving with a double actuation (a brief clicking noise in each case) if the acceptance band of the inserted coins and that of an already programmed coin channel overlap or the generated measured values are too different and the tolerances would be too high, for example.

  • Page 39: Maintenance And Service

    ainTenance anD seRvice Maintenance and service This chapter describes how to • clean the v eagle and • remedy the cause of malfunctions. Please observe the following safety instructions during all cleaning and maintenance work: • Pull the mains plug of the machine before removing and cleaning the coin validator.
  • Page 40 ainTenance anD seRvice Fig. 14: Opening and closing the flight deck of the coin validator Make sure that in particular the measurement surface with the inductive coil and the three optical sensors [Fig. 15/1] and the runway [Fig. 15/2] on the flight deck are clean. In case these areas are not clean, repeat steps 4 and 5 and check again for cleanliness. Fig.

  • Page 41: Troubleshooting

    ainTenance anD seRvice Troubleshooting Malfunctions can occur in all electronic devices. These do not always have to be faults in the device. In many cases improper connections or incorrect settings are the reason. Therefore: please check first of all whether the malfunction can simply be remedied using the following table. Problem Possible cause Remedy, hints Status LED flash- es continuously Coin validator powered...

  • Page 42: What Subsequent Settings Can Be Made

    9.1.1 PC configuration software heartbeat The PC software heartbeat serves for diagnostics and individual configuration of the new NRI coin validator generation and for updating the complete coin and device configuration using data blocks currently provided by NRI (data block upload). The heartbeat software identifies the coin validator connected to the PC and its device-specific data and displays the data on the screen of your PC for diagnostics and configuration. The heartbeat tutorial describes how to connect the coin validator to your PC and how to install and use the software.
  • Page 43 haT subsequenT seTTings can be MaDe • Sorting via channel assignment of – Default sorting chute – Override sorting chute (option) • Sensitivity of the string sensor • Function statistics via line assignment for – Coin validator connected to current –...

  • Page 44: Technical Data

    echnical DaTa Technical data This chapter contains • all relevant v eagle data • details concerning the machine interface • information concerning v eagle accessories 10.1 Device data Supply voltage 10 V to 28 V DC Current consumption max. Acceptance solenoid: approx. 3 W when accepting coins Sorting solenoid: approx.
  • Page 45 echnical DaTa Device dimensions Standard 5” format, exact dimensions depend on validator model, cf. separate installation drawings Mounting position vertical, max. deviation: ± 2° Directives applied EMC: 2004/108/EC EN 55 014-2 (interference resistance) EN 55 022 (interference emission) Machinery: 2006/42/EC R&TTE: 1999/5/EC (Radio and telecommunications terminal equipment)

  • Page 46: Interfaces

    echnical DaTa 10.2 Interfaces On the following pages you will find the pin assignment, interface description and connection diagram for connecting the v eagle to the machine. 10.2.1 BDTA interface The Bundesverband der Deutschen Tabakwaren-Großhändler und Automatenaufsteller (BDTA) (association of German tobacco wholesalers) determined the DTG standard 2 for the electrical interface to the vending machine. This standard includes the specification of the supply voltage, the coin signal lines, inhibit functions and the return signal. In addition to further standardization requirements for validators the measurement quality of validators is also specified.

  • Page 47: Bdta Interface Description

    echnical DaTa 10.2.1.2 BDTA interface description Coin lines Coin validator signals the coin accepted in the respective coin channel (usually by one pulse, if there are not sufficient lines by multiple pulses) Return line After pressing of the return lever/return button the coin validator signals opening of the measurement and validation area Common inhibit line Machine inhibits coin acceptance...

  • Page 48: Bacta Interface

    echnical DaTa 10.2.2 BACTA interface For AWP and SWP coin validators in the gambling machine industry a parallel interface is used as provided for in the British BACTA standard (British Amusement Catering Trade Association). To transmit coin and inhibit signals a 17-pole connector is primarily used today. The connector features different pin assignments for standard mode and binary mode.

  • Page 49: Bacta Pin Assignment, Standard Mode

    echnical DaTa 10.2.2.2 BACTA pin assignment, standard mode Function Level Coin line 6: VCOM active high/low active high/low Coin line 5: VCOM active high/low active high/low – VCOM (coin validator output high/low) active high Coin line 1: VCOM active high/low active high/low –...

  • Page 50: Sorter Override Interface (Only Bacta)

    echnical DaTa 10.2.3 Sorter override interface (only BACTA) Pin I/O Function Level – Ground (GND) – Polarising key Full-signal line, path 7, active low Full-signal line, path 6, active low Full-signal line, path 5, active low Full-signal line, path 4, active low Full-signal line, path 3, active low...

  • Page 51: Accessories

    DaTa 10.3 Accessories To adapt the v eagle to your individual requirements you can acquire the following NRI accessories from Crane Payment Innovations: 10.3.1 Front plates Designation Order no. for front entry and bottom 30202 return Front plate (233 x 77 mm) for...

  • Page 52: Manifolds/Sorters

    echnical DaTa 10.3.2 Manifolds/sorters Designation Order no. for v eagle with 5-fold in-line sorting 12811 mechanism 4-way manifold for v eagle with 4-fold sorting mechanism 35580 (with 8 mm extension) for v eagle with 4-fold sorting mechanism 36566 (without extension) for v eagle with 35197...

  • Page 53: Service Tools

    echnical DaTa 10.3.3 Service tools Designation Order no. On-site service tool For updating the complete coin/device configuration and HENRI for v eagle firmware version (including license, USB-PC cable, coin validator cable) Power supply 33573 In the machine, via HENRI transformer In the workshop, via 12V 26482 power supply with international adapters...

  • Page 54: Index

    nDex Index Very narrow 20 Symbole Chapter summary 8 4-fold sorter 10 CIM signal 23 4-way manifold 28 Cleaning 39 8-way manifold 29 Closing device, flight deck 13 Pinning 50 Coin 5-fold sorter 10 Inhibit 24 4-way manifold 28 Procedure 35 New 30 Procedure 37 Accentuations in the text 8...
  • Page 55 nDex Connection 32 Connections Firmware 8-fold manifold 13 Number/version 15 Connection diagram 47 Update 42 Description 46 Flap sorting system 25 Pin assignment 46 Flight deck 13 Service/configuration 12 Closing device 12 Sorter override 12 Open 39 Vending machine 12 Foul signal, accepted coin sensor 31 Current Front...
  • Page 56 nDex Interface 8-way manifold (option) 13 Open coin validator 39 BACTA 23 Operating BDTA 22 Instructions, additional 9 Label 15 Voltage 44 Service/configuration 12 Operation 34 Sorter override 12 Options 10 Vending machine 12 Order number Internet address, cranepi 9 Accessories 51 Introduction Coin validator 15...
  • Page 57 nDex Teaching coins 30 Safety instructions 8 Select line 23 Procedure 37 Serial number/order 15 Technical data 44 Settings 8 Temperature On site (HENRI+) 42 Change 44 Order numbers 53 Range 44 Tilt, mounting position 45 PC programming station (heartbeat) 42 Order numbers 53 Top entry and bottom return 10 Single inhibit line 46...
