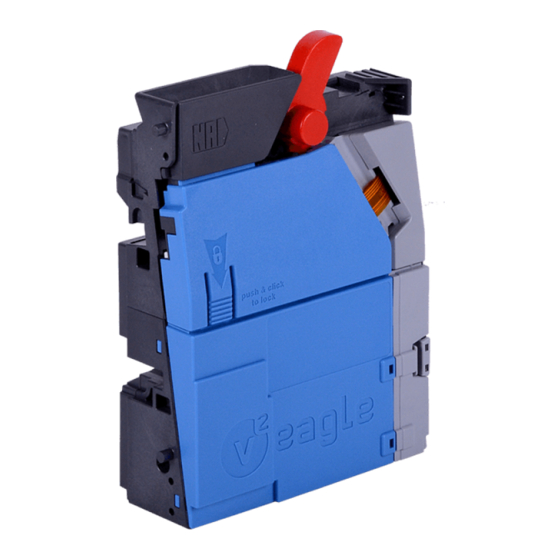

NRI v2 eagle Operating Instructions Manual
5" coin validator with bdta interface
Hide thumbs
Also See for v2 eagle:
- Operating instructions manual (57 pages) ,
- Operating instructions manual (50 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NRI v2 eagle
Summary of Contents for NRI v2 eagle

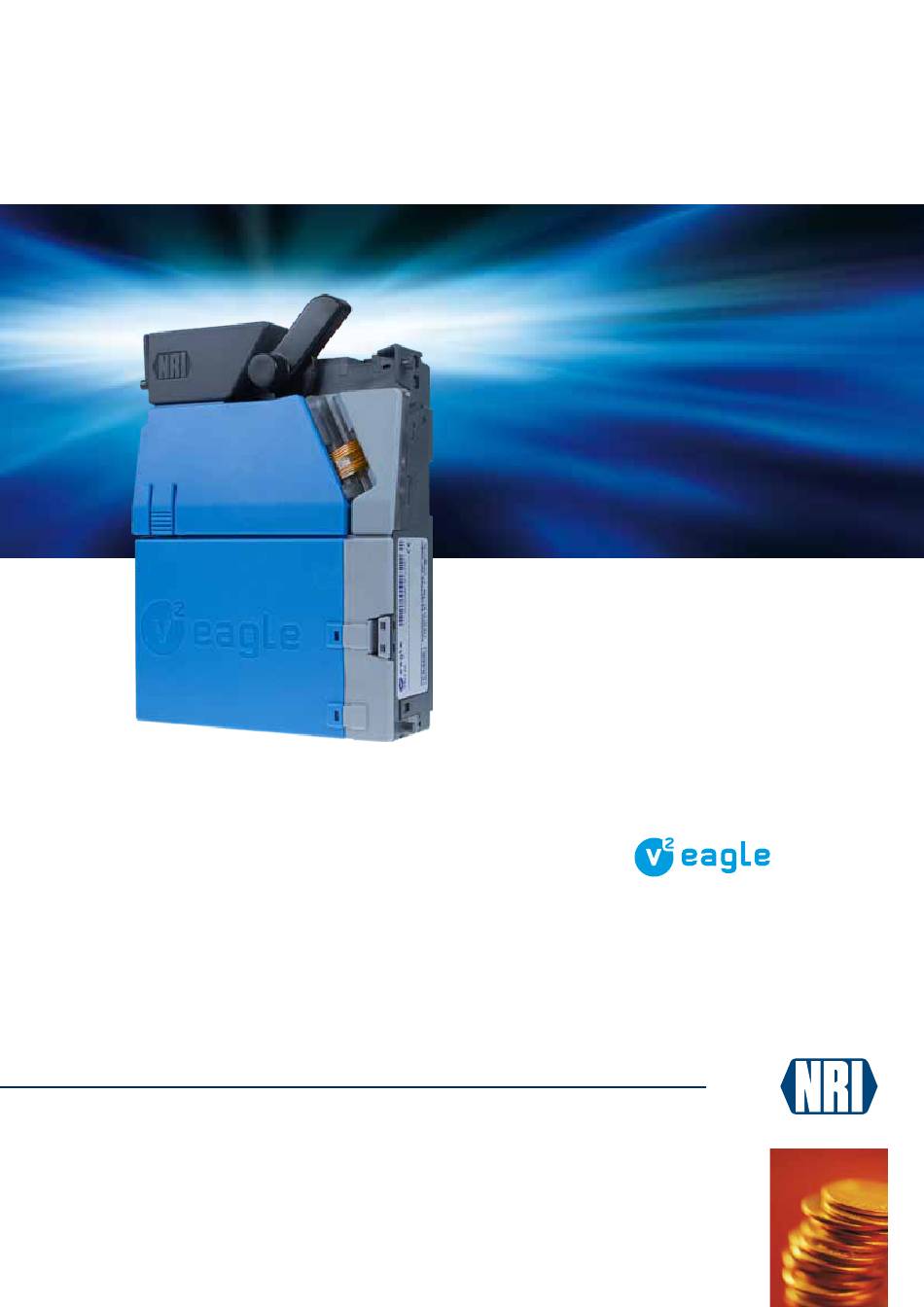

- Page 1 Operating Instructions 5“ Coin Validator with BDTA interface 01.13 Hns/GS/Roe BA_v2_eagle_BDTA_EN_1-4 Crane Payment Solutions GmbH | Zum Fruchthof 6 | 21614 Buxtehude | Germany Web: info@craneps.com | www.craneps.com | Phone: +49 (0) 41 61-729-0 | Fax: +49 (0) 41 61-729-115...
-
Page 3: Table Of Contents
able of conTenTs Table of contents Revision protocol About ... About these operating instructions 2.1.1 Text conventions 2.1.2 Additional useful technical documentation About the v eagle 2.2.1 The v -eagle features 2.2.2 Models 2.2.2.1 Coin entry and return area 2.2.2.2 Internal 5-fold sorting Safety instructions Proper use... - Page 4 Inhibiting individual coins/coin channels via the switch blocks 22 Sorting accepted coins (option) 5.6.1 Sorting principle of 5-fold longitudinal sorting (Ex8xP4. ..) 5.6.1.1 Sorting with NRI 4-fold sorting adapter (option) 5.6.2 Activation of a cash-box/spare sorting chute (option) Teach mode (option) String recognition (option)
- Page 5 able of conTenTs Maintenance and service Cleaning the coin runway Troubleshooting What subsequent settings can be made? 9.1 Service and configuration tools 9.1.1 PC configuration software heartbeat 9.1.2 On-site service tool HENRI Which device functions can be set? Technical data 10.1 Device data 10.2 Machine interface 10.2.1 Pin assignment 10.2.2...
-
Page 7: Revision Protocol
evision pRoTocol Revision protocol Version Revision Chapters/sections concerned 7.2 "Inhibiting coins/activating narrow _1-1 Figure in example added coin channel" Revised model number decoding 4.3.1 "Model number decoding" _1-2 Enhanced accessories 10.3 "Accessories" Additional label on the rear of the device 4.1 "Overview"... -
Page 8: About
bouT About ... This chapter is intended to provide a general overview of the advantages and options of the coin validator v eagle with parallel BDTA interface. The first section, however, is designed to help you navigate easily within these operating instructions. About these operating instructions These operating instructions describe the design and operation of the electronic 5" coin validator eagle with parallel BDTA interface. -
Page 9: Additional Useful Technical Documentation
2.1.2 Additional useful technical documentation Apart from the operating instructions you already have, further documentation is available for the eagle, e.g. documentation concerning configuration. All documentation can be downloaded from the NRI homepage (www.nri.de) as pdf file. About the v eagle The v -eagle coin validator with parallel BDTA interface in the standardized 5“ format uses the patented multi-frequency technology (MFT) for reliable coin validation. -
Page 10: Models
• Front entry and bottom return (E3xxP4. ..) The coin is inserted into the device from the side and returned, if not accepted, via the return area at the bottom. The coin validator with front entry generally has an NRI front plate fitted to the left-hand side . However, this model is also of the device (cf. -
Page 11: Safety Instructions
Pull the mains plug of the machine before installing, cleaning or removing the coin validator. Contact NRI if you want to modify the device beyond the scope of the modifications or attachments described here. Keep water and other liquids away from the coin validator. -
Page 12: Design
esign Design This chapter describes • the main parts the v eagle consists of, and • all parts required for the operation of the coin validator. Overview Fig. 1: Design 7 Coin outlet – return 1 Coin insert funnel (cf. Chap. 4.2 Coin path, p. 13) 8 Mounting stud (front entry model, open on the side (cf. -
Page 13: Coin Path
esign Coin path Top entry Front entry with bottom return ... Front return Fig. 2: Coin path BA_v2_eagle_BDTA_EN_1-4... -
Page 14: Labels
EUR -,05 / -,10 / -,20 / -,50 / 1,- / 2,- / TK1794 NATIONAL REJECTORS, INC. GMBH CRANE +49 (0) 41 61 / 729 - 0 * info@nri.de Fig. 3: Label 1 Device type 7 Coin programming – memory block B... -
Page 15: Label - Switch/Coin Channel Assignment
esign Label – switch/coin channel assignment In order to be able to easily operate the coin validator, E0P40-EU---20000A there is a label on the rear of the device [Fig. 1/13] Block A Block B briefly showing the functions of the DIL switches at EUR -,05 EUR -,10 the bottom and above (cf. -
Page 16: Model Number Decoding
EUR -,10 / -,20 / -,50 / 1,- / 2,- EUR -,10 / -,20 / -,50 / 1,- / 2,- NATIONAL REJECTORS, INC. GMBH CRANE +49 (0) 41 61 / 729 - 0 * info@nri.de EXXXXX.XX/X.XXX Options – iverter interface (s... -
Page 17: Switch Blocks
esign Switch blocks The coin validator has two switch blocks [Fig. 1/12] with ten DIL switches each (S1.1-10 and S2.1–10) on the rear of the device. The DIL switches can be used to set certain device functions: For details on how to use the switch blocks to set the individual functions, see ChapKap. -
Page 18: Coin Return Lever
esign Coin return lever The return lever [Fig. 1/2] on the top of the device is operated using the return button on the machine when coins which have been inserted are to be returned or e.g. a jam caused by coins which have become stuck needs to be removed. -
Page 19: Function
Since in most cases not all coin channels are assigned by customized factory programming, further coin types and the desired information can be assigned to these free channels at any time using the NRI configuration and service tools. Existing configurations can be changed. Eight coin channels are intended to be used for the teach mode. In these teach channels new tokens/coin types can be taught also without configuration and service tools, directly on the coin validator using the switch blocks. -
Page 20: Memory Blocks
uncTion Memory blocks The v eagle manages two separately programmed (memory) blocks A and B (cf. Chap. 4.3 Labels, . 16 coin channels with different coin types (also currencies), sorting information etc. can p. 14) be assigned to each block. Only one block at a time can be active and used for coin measurement and further coin processing. -
Page 21: Transmission Of Coin Values Via Coin Pulses And Coin Signal Lines
uncTion Transmission of coin values via coin pulses and coin signal lines By default each coin accepted by the coin validator sends a pulse to the machine control via the coin signal line assigned to it. A pulse signals to the machine control that a coin has been accepted. -
Page 22: Coin Inhibition/Activation Of Narrow Coin Channels
uncTion Coin inhibition/activation of narrow coin channels If coins are no longer to be accepted for payment on the machine you can either • inhibit coin acceptance completely, • inhibit all coin channels of a certain coin to ensure that this coin is no longer accepted, or • inhibit the normal coin channel of a certain coin so that this coin is accepted only in the narrow channel. -
Page 23: Sorting Accepted Coins (Option)
uncTion Sorting accepted coins (option) To direct accepted coins either to the cash-box or an external sorting device, e.g. change tubes or hoppers, the coin validator can be equipped with a 5-fold longitudinal sorting mechanism at the coin outlet. The chutes are controlled via a flap sorting system using three solenoids. In this section you learn all about the principle of • longitudinal sorting –... -
Page 24: Sorting With Nri 4-Fold Sorting Adapter (Option)
Sorting with NRI 4-fold sorting adapter (option) For the purpose of splitting-up and for better transport of the sorted coins you have the option of an NRI 4-fold sorting adapter (manifold) which can be screwed to the coin validator from the bottom. This adapter is primarily used in AWP and SWP slot machines. -
Page 25: Activation Of A Cash-Box/Spare Sorting Chute (Option)
uncTion 5.6.2 Activation of a cash-box/spare sorting chute (option) If the machine control shall sort coins into the cash-box chute or into a spare sorting chute when the external sorting device sends a "full" signal, the coin validator can be programmed in the factory in such a way that, depending on the status of the single inhibit signal line 6 (pin 4) (high/low), the single inhibit signal lines 1-5 either • inhibit coins by default (single inhibit signal line 6 = low, single inhibit lines 1-5 = high) or... -
Page 26: Teach Mode (Option)
uncTion Teach mode (option) If the v eagle has been programmed accordingly in the factory, coin channels can be taught in the teach mode without configuration software via the switch block on the coin validator, i. e. a new token or coin is assigned to a coin channel. The new acceptance band is generated by inserting the tokens/coins. -
Page 27: Start-Up
TaRT Start-up For all assembly and installation work on the coin validator and the machine please observe the following safety instructions: • The coin validator may only be connected by a qualified electrician. • The coin validator is not suited for outdoor use. •... -
Page 28: Operation
peRaTion Operation This chapter describes how to operate the coin validator, i. e. set certain functions on the coin validator: • selecting memory block • Inhibiting coins/activating narrow coin channel • Teaching coin channels in teach mode (option) The settings which are made directly on the coin validator are described. A separate instruction manual describes how to make settings using the PC configuration software heartbeat (cf. -
Page 29: Inhibiting Coins/Activating Narrow Coin Channel
peRaTion Inhibiting coins/activating narrow coin channel Using the two switch blocks on the coin validator you can inhibit on site each of the 16 coin channels of the activated memory block or each coin assigned to certain coin channels, which means that the inhibited channels are not used for payment on the machine: • Accept coin unrestrictedly: all channels assigned are enabled • Narrow the acceptance band of a coin: inhibit normal channel • Inhibit coin: inhibit all channels assigned The 16 DIL switches inhibit the following coin channels:... - Page 30 peRaTion Example The coin validator shall not use coin channels 3 and 10 for coin acceptance, so that coin channels 3 and 10 must be inhibited With this setting the coin channels 3 and 10 are not used! If a normal and a narrow coin channel are programmed on the coin validator for one coin denomination, the normal coin channel must be inhibited as described above to enable activation of the narrow coin channel.
-
Page 31: Teaching Coin Channels In Teach Mode (Optional)
peRaTion Teaching coin channels in teach mode (optional) If the v eagle has been programmed accordingly in the factory, up to eight coin channels (teach channels) can be taught on the coin validator via the bottom switch block in order to create new acceptance bands. - Page 32 peRaTion To save with the normal acceptance band: Reset DIL switch S2.9 to OFF (down). Successful saving is signalled by the acceptance gate attracting once. A saving error is signalled by the acceptance gate attracting twice (brief cracking sounds), if e.g. the acceptance band of the coins inserted and the acceptance band of a coin channel already programmed overlap, or the measured values generated are too different and the tolerances would become too large.
-
Page 33: Maintenance And Service
ainTenance anD seRvice Maintenance and service This chapter describes how to • clean the v eagle and • remedy the cause of malfunctions. Cleaning the coin runway On their way through the coin validator the coins may leave residues on sensitive parts which must be removed from time to time to ensure reliable coin acceptance and rejection. -
Page 34: Troubleshooting
ainTenance anD seRvice Troubleshooting Malfunctions can occur in all electronic devices. These do not always have to be faults in the device.. In many cases improper connections or incorrect settings are the reason. Therefore: please check first of all whether the malfunction can simply be remedied using the following table. Problem Possible cause Remedy, hints Coin validator • Connect cable to validator and machine correctly does not accept... -
Page 35: What Subsequent Settings Can Be Made
9.1.1 PC configuration software heartbeat The PC software heartbeat serves for diagnostics and individual configuration of the new NRI coin validator generation and for updating the complete coin and device configuration using data blocks currently provided by NRI (data block upload). The heartbeat software identifies the coin validator connected to the PC and its device-specific data and displays the data on the screen of your PC for diagnostics and configuration. The separate software manual describes how to connect the coin validator to your PC and how to install and use the software. -
Page 36: Technical Data
echnical DaTa Technical data This chapter contains • all relevant v -eagle data • details concerning the machine interface • information concerning v -eagle accessories 10.1 Device data Supply voltage 10 V to 28 V DC Current consumption max. Acceptance solenoid: approx. 3 W when accepting coins Sorting solenoid: approx. -
Page 37: Machine Interface
echnical DaTa 10.2 Machine interface On the following pages you will find pin assignment, interface description and the connection diagram for the connection of the v eagle to the machine. 10.2.1 Pin assignment The Bundesverband der Deutschen Tabakwaren-Großhändler und Automatenaufsteller (BDTA) (association of German tobacco wholesalers) determined the DTG standard 2 for the electrical interface to the vending machine. This standard includes the specification of the supply voltage, the coin signal lines, inhibit functions and the return signal. -
Page 38: Interface Description
echnical DaTa 10.2.2 Interface description Coin lines Coin validator signals the coin accepted in the respective coin channel (usually by one pulse, if there are not sufficient lines by multiple pulses) Return line After pressing of the return lever/return button the coin validator signal opening of the measuring and validation area Common inhibit line Machine inhibits coin acceptance... -
Page 39: Connection Diagram
echnical DaTa 10.2.3 Connection diagram Fig. 10: Connection diagram BA_v2_eagle_BDTA_EN_1-4... -
Page 40: Accessories
DaTa 10.3 Accessories To adapt the v eagle to your individual requirements you can acquire the following accessories from NRI: 10.3.1 Front plates Designation Order no. for front entry and bottom 12918 return Front plate (233 x 77mm) for front entry and front... -
Page 41: Service Tools
echnical DaTa 10.3.3 Service tools Designation Order no. On-site Service tool to update the complete coin/ device configuration and HENRI for v eagle firmware version (incl. license, USB PC cable, coin validator cable) Power supply 33573 in the machine using voltage HENRI adapter in the workshop using 12V- 26482 power supply unit with interna- tional adapters 34714... -
Page 42: Index
nDex Index 4-fold sorting adapter 23 Cleaning 32 5-fold sorting 10 Coin inhibit 21 procedure 28 Accentuations in the text 8 new 25 Acceptance band 18 procedure 30 narrow 18 Coin acceptance 18 activate 28 inhibit 21 new 25 procedure 28 procedure 30 Coin channels 18 normal 18... - Page 43 Dimensions 35 Interface Documentation, additional 9 label 14 service/configuration 12 Electrostatic discharge 11 vending machine 12 Employment, proper 11 Internet address, NRI 9 External sorting 24 Introduction chapter 8 coin validator 9 Firmware update 34 instructions 8 Flap sorting system 22...
- Page 44 nDex Model number 14 Models 10 Relative humidity 35 decoding of model no. 15 Requests to perform an action 8 Mounting position 35 Return 10 Mounting stud 12 at the bottom and front entry 10 Multiple pulse 20 at the bottom and top entry 10 pulse-to-pause ratio 20 Return lever 12 description 17...
- Page 45 30 Technical data 35 Temperature change 35 Temperature range 35 Tilt, mounting position 35 Top entry and bottom return 10 Troubleshooting 33 Tubes 22 Update, firmware 34 Use, proper 11 Variants 10 decoding of model no. 15 Web site, NRI 9 www.nri.de 9 BA_v2_eagle_BDTA_EN_1-4...
