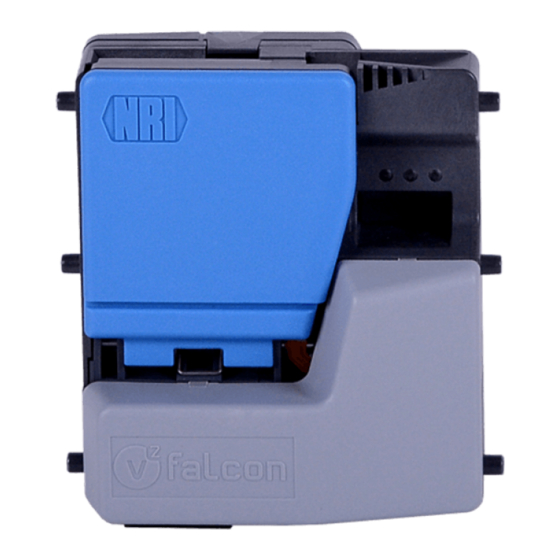

NRI Currenza F2 Operating Instructions Manual

Electronic coin validator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Technical Documentation
11.08 Hns/WP/Roe
Version 0.2
BA.F2-EN
National Rejectors, Inc. GmbH • Zum Fruchthof 6 • D-21614 Buxtehude
Phone: +49 (0)4161-729-0 • Fax: +49 (0)4161-729-115 • E-mail: info@nri.de • Internet: www.nri24.com
Electronic coin validator
Operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Currenza F2 and is the answer not in the manual?

Questions and answers

Related Manuals for NRI Currenza F2

Summary of Contents for NRI Currenza F2

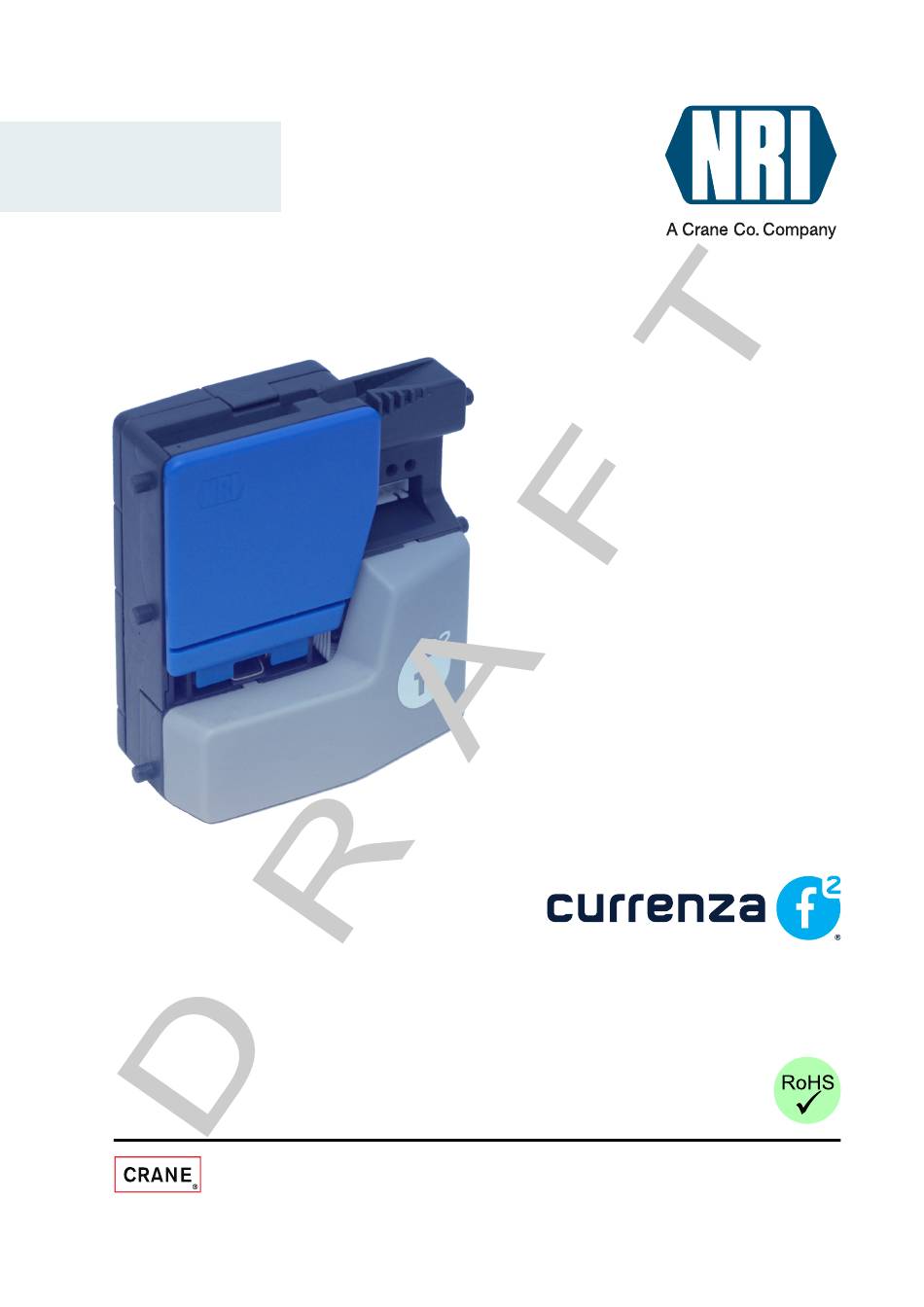

  • Page 1 Technical Documentation Electronic coin validator Operating instructions 11.08 Hns/WP/Roe Version 0.2 BA.F2-EN National Rejectors, Inc. GmbH • Zum Fruchthof 6 • D-21614 Buxtehude Phone: +49 (0)4161-729-0 • Fax: +49 (0)4161-729-115 • E-mail: info@nri.de • Internet: www.nri24.com...

  • Page 3: Table Of Contents

    ABLE OF CONTENTS Table of contents General information General information about these instructions Text conventions Additional technical documentation General information about the coin validator Models and operating modes Machine interfaces Dimensions Safety instructions Proper use Protecting yourself and equipment Design The coin route from insert funnel to coin outlet Switching blocks Flight deck and measurement and validation area...
  • Page 4 ABLE OF CONTENTS National Rejectors, Inc. GmbH, Buxtehude...
  • Page 5 ABLE OF CONTENTS Maintenance and service Cleaning coin validator Troubleshooting Error diagnosis using tilt line WinEMP programming station for the workshop/ WinEMP compact for on-site configuration Function Composition Which functions can be set? Technical data Device data CE Certification Interfaces (pin assignment, connection diagrams, status and error messages) currenza f parallel, standard model –...

  • Page 7: General Information

    ENERAL INFORMATION General information This chapter should provide a general overview of the advantages and options regarding the coin validator currenza f . The first section, however, is designed to help you navigate easily within these operating instructions. General information about these instructions These operating instructions describe the design and operation of the f models with serial ccTalk as well as parallel standard and SGI interface.

  • Page 8: Additional Technical Documentation

    PC programming station which is made up of the configuration and diagnostics software "WinEMP" (including card reader and licence chip card) and an NRI tester for power supply of the currenza f (see Chap. 8 "WinEMP programming station for the workshop/WinEMP compact for on- site configuration").

  • Page 9: Models And Operating Modes

    Please contact NRI if you want to change the factory settings. Tokens or coins that have not been taken into consideration at the manufacturer’s company can be programmed in the teach mode directly at the coin validator by inserting coins and without any configuration software.

  • Page 10: Dimensions

    ENERAL INFORMATION Dimensions The currenza f is available in a standard format or in an extra flat format. Fig. 1b: currenza f extra flat Fig. 1a: currenza f standard National Rejectors, Inc. GmbH, Buxtehude...

  • Page 11: Safety Instructions

    AFETY INSTRUCTIONS Safety instructions Before operating the device for the first time, please read through these instructions carefully at least once, and most importantly the safety instructions. This is to ensure you have understood the contents of these instructions as well as how to operate the coin validator. Proper use Series currenza f coin validators with serial ccTalk or parallel standard or...

  • Page 12: Protecting Yourself And Equipment

    Never pull the connecting cable of the coin validator from the machine when a voltage is applied. Contact NRI if you wish to alter the construction of the device to a greater extent than that described in these instructions. Keep water and other liquids away from the coin validator.

  • Page 13: Design

    ESIGN Design This chapter describes • the main parts the currenza f consists of • the coin route from insert funnel to coin outlet • all parts which you need to operate the coin validator Fig. 2: Design 9 Switching blocks 1 Coin insert funnel 2 Pilot lights 10 Machine interface –...

  • Page 14: The Coin Route From Insert Funnel To Coin Outlet

    ESIGN The coin route from insert funnel to coin outlet return area cash-box/ sorting device Fig. 3: Coin acceptance and rejection path Switching blocks On the rear side, the coin validator is equipped with two switching blocks [2/9] with 10 DIL switches S1.1–10 and S2.1–10 each. The DIL switches have different functions, e.g.

  • Page 15: Flight Deck And Measurement And Validation Area

    ESIGN Flight deck and measurement and validation area A coin inserted into the machine initially passes the measurement and validation area [2/5] of the coin validator (via a coin feeder (provided by the customer)). Here the coin runs past inductive and optical sensors and generate individual measurement values.
  • Page 16 UNCTION Function This chapter describes how the coin validator works: • Coin acceptance and coin channels • Single or double block data-management • Accepted coin sensors • Coin validator control • Control for external sorting device • Coin inhibition/Activation of narrow coin channels •...
  • Page 17 UNCTION The last eight coin channels 25 to 32 (or 9 to 16 with double block data- management, see section "Single or double block data-management" in this chapter) are intended to be used for the teach mode. In these coin channels new coin types can also be taught without configuration software, directly via the switching blocks on the coin validator;...
  • Page 18 (coin value) is (cp. also section "Interfaces" in Chap. 9 "Technical data"). The assignment between coin type and coin signal line is customized by NRI. You can also assign a certain combination of signal lines, i.e. several signal lines, to a coin type in order to be able to differentiate.
  • Page 19 2-euro coin was inserted, the machine control unit would be sent two coin impulses on the coin signal line assigned to the 1-euro coin. The number of coin impulses is customized by NRI. Coin impulse length The length of the coin impulses that are sent from the coin validator to the machine can be set individually to suit the machine.
  • Page 20 Control for external sorting device In order to be able to guide the accepted coins into the cash-box or, e.g., into change tubes or hoppers, you can equip the coin validator with the NRI 3-fold sorting device currenza d or with another sorting device (cp.
  • Page 21 UNCTION Coin enable/inhibition/Activation of narrow coin channels If coins are to be no longer accepted for payment at the machine, you can either • inhibit all coin acceptance, • inhibit all coin channels of a certain coin type so that this coin is no longer accpeted, or •...
  • Page 22 "Technical data"). Which coin or rather which coin channel is to be inhibited using which signal line is customized by NRI. Internal inhibit of single coin types/coin type groups As an alternative to individual inhibiting of certain coin channels via the...
  • Page 23 TART Start-up For all installation work on the coin validator or the machine please observe the following safety instructions: The coin validator may only be connected by a qualified electrician. The coin validator is not suited for outdoor use. Do not use the coin validator if the device or connecting cable are damaged.
  • Page 24 TART Fig. 5a: Installation 1 Machine interface – 4 Machine interface – parallel SGI mode (3-7 poles) parallel standard mode (10-pole)/ Machine interface – 2 Mounting studs parallel SGI mode (3-10 poles) 3 Machine interface – serial ccTalk mode (4-pole) Fig.
  • Page 25 PERATION Operation This chapter describes the operation, i.e. the setting of specific functions on the coin validator: • Selecting memory block • Inhibiting coins/Activating narrow coin channel • Teaching coin channels in the teach mode The settings that are performed directly on the validator are described. To find out how to perform settings using the configuration software WinEMP, please refer to separate instructions (cp.
  • Page 26 PERATION Inhibiting coins/Activating narrow coin channel ... With double block data-management, using the two switching blocks on the coin validator each of the 16 coin channels of the activated memory block or each coin assigned to a specific coin channels can be inhibited, i.e. the channels inhibited are no longer used for coin acceptance.
  • Page 27 PERATION Example The coin validator is no longer supposed to accept the coin(s) assigned to coin channels 3 and 10, which means that coin channels 3 and 10 must be inhibited With the DIL switches in these positions, the coin validator no longer accepts the coin type(s) assigned to coin channels 3 and 10! If a normal coin channel and a narrow coin channel have been programmed on the coin validator for one coin type, the normal coin...
  • Page 28 PERATION Teaching coin channels in the teach mode ... A coin channel can be assigned a token or a new coin either using the lower switching block on the coin validator or in ccTalk mode using ccTalk commands and the machine service menu..
  • Page 29 PERATION To reassign a coin type to a coin channel, please proceed as follows: If you are using the lower switching block to inhibit coins, remember the current switch settings so that you can restore them easily for the normal operating mode at the end. Set all DIL switches S2.1–10 toward the bottom to OFF.
  • Page 30 PERATION To save with a wide acceptance band: Set DIL switch S2.10 toward the top to ON. The acceptance band has been widened. Now you can set DIL switch S2.9 toward the bottom to OFF. Successful saving is signalled by the acceptance gate attracting once, an error when saving is indicated by the acceptance gate attracting twice (brief clacking sounds), if, for example, the acceptance band of the coins inserted and the...

  • Page 31: Maintenance And Service

    AINTENANCE AND SERVICE Maintenance and service In this chapter you will find out how to • clean the currenza f • remedy the cause of a malfunction. Cleaning coin validator The coin validator must only be wiped clean from time to time with a damp cloth (lukewarm water with some detergent).

  • Page 32: Troubleshooting

    AINTENANCE AND SERVICE Troubleshooting Malfunctions can occur in all electronic devices. These do not always have to be faults in the device. In many cases the reason is improper connections or incorrect settings. Therefore: please first of all check, whether the malfunction can simply be remedied using the following table: Problem Possible causes...

  • Page 33: Error Diagnosis Using Tilt Line

    If the malfunction cannot be remedied, you can use the NRI tester • G-19.0594 (for power supply of 220/230 V, ordering code 11801)/ • G-19.0651 (for power supply of 110/115 V, ordering code 21410) to test the signal lines of the parallel standard interface.

  • Page 34: Winemp Programming Station For The Workshop/Winemp Compact For On-Site Configuration

    Function The PC software WinEMP serves the purpose of diagnosis and individual configuration of NRI coin validators as well as the updating of the complete coin and device configuration using current data blocks provided by NRI (data block download).

  • Page 35: Which Functions Can Be Set

    • SimLock card reader "License Card Module" with integrated chip card (ID-000 format, SIM card size) with basic licence for the purpose of diagnostics and individual configuration of all NRI coin validators • USB connecting cable card reader – laptop •...

  • Page 36: Technical Data

    ECHNICAL DATA Technical data This chapter provides information about • all relevant currenza f data • the CE certification • the machine and sorting interfaces • ordering codes for the currenza f accessories Device data Supply voltage 10V to16V DC Current consumption Standby mode: approx.

  • Page 37: Ce Certification

    ECHNICAL DATA Sorting interface 2 sorting outputs (open collector) Coin acceptance 32 coin types max. in 2 x 16 or 1 x 32 channels Coin diameter: 15–32.5mm Coin thickness: 1.5–3.3mm Speed: 10 coins/sec. Device dimensions Height: 102mm Width: 89mm Depth: 52mm (standard), 50mm (extra flat) (For mounting dimensions, see separate documentation) Mounting position...

  • Page 38: Interfaces (Pin Assignment, Connection Diagrams, Status And Error Messages)

    ECHNICAL DATA Interfaces (pin assignment, connection diagrams, status and error messages) On the following pages you will find interface descriptions, pin assignments and connection diagrams for the connection of the des currenza f • the machine • an external sorting device currenza f parallel, standard model –...

  • Page 39: Connection Diagram

    ECHNICAL DATA Connection diagram Fig. 7: Connection diagram for currenza f parallel, standard model National Rejectors, Inc. GmbH, Buxtehude...

  • Page 40: Currenza F 2 Parallel, Sgi Model - Machine

    ECHNICAL DATA currenza f parallel, SGI model – machine Pin assignment and compatibility currenza f term SGI 16 A SGI 16 B SGI 40 A SGI 46 A SGI 62 A/AS SGI 33 A SGI 80 A SGI 100 A Connector type 10-pole terminal Molex...

  • Page 41: Pin Assignment

    ECHNICAL DATA Inhibit Machine inhibits coin acceptance Sense Coin validator signals valid coin (measurement system passed), also with "inhibit" Tilt Error (see section "Error diagnosis using tilt line" in Chap. 7 "Maintenance and service") currenza f ccTalk – machine Pin assignment Pin 1 12V DC supply Pin 2...

  • Page 42: Cctalk Commands, Status And Error Messages

    Request polling priority: 2,20 (= "200 ms" [0/2] Request status: 0 = OK/ String pause = 2, OK = 0 Request manufacturer ID: "NRI" [0/3] Request equipment category ID: "Coin Acceptor" [0/13] Request product code: "F2" [0/2] Request database version:...
  • Page 43 ECHNICAL DATA Deviation acc. to version for Italian Header Command [bytes expected/returned] gambling machine market (ACMI) Perform self test: 0 = OK/1 = EEPROM checksum corrupt [0/1] Modify inhibit status: [2/0] Request inhibit status: [0/2] Read buffered credit or error codes: See buffered error code table below [0/11] Modify master inhibit status: [1/0]...
  • Page 44 ECHNICAL DATA Buffered error code table No error Reject coin Inhibited coin Credit (accepted coin) sensor timeout Sorter opto timeout close coin error Credit (accepted coin) sensor not ready Sorter not ready Credit (accepted coin) sensor blocked Credit sequence error Coin too slow Coin-on-string mechanism acitvated Acceptance gate open/not closed...
  • Page 45 ECHNICAL DATA Teach mode Header 202 – Teach mode control Transmitted data: Position (1 byte) Received data: Position: Bit 0..6: Coin type (1..16) Bit 7: 0 = normal acceptance band, 1 = wide acceptance band Position = 0 = abort teaching process Header 201 –...

  • Page 46: Currenza F 2 - External Sorting Device

    ECHNICAL DATA currenza f – external sorting device Pin assignment Pin 1 Pin 2 12V DC supply Pin 3 sorting control line Pin 4 sorting control line Pin 5 Pin 6 power supply, sorting gate Pin 7 sensor, coin inlet Pin 8 sensor, coin outlet Pin 9...

  • Page 47: Accessories

    High speed sorting device currenza d (3-fold) ....30500 Test tools For all details regarding the NRI testers and the test software WinSPT please refer to our web pages for the product accessories on the internet (www.nri24.com)). WinEMP PC programming station/WinEMP compact For all details regarding the WinEMP configuration software please refer to our web pages for the product accessories on the internet (www.nri24.com).

  • Page 48: Glossary

    LOSSARY Glossary A range of acceptable measured values of one → coin type Acceptance band (with specific → coin properties) defined by an upper and lower limit value. Acceptance gate The acceptance gate diverts the inserted coins into the acceptance or return area of the coin validator. Accepted coin sensors The accepted coin sensors are positioned in front of the cash coin outlet of the coin validator and check whether accepted coins fall unhindered into the cash-box chute.
  • Page 49 LOSSARY Coin impulse number Every coin accepted by the coin validator passes on an impulse to the machine control system via the appropriate → coin signal line. An impulse tells the machine control system that a coin has been accepted. In principle, 255 impulses per coin can be assigned to the →...
  • Page 50 LOSSARY Data block download When updating a data block (set) (2 data blocks) using WinEMP, the data blocks for the connected coin validators are loaded quickly and easily from the internal hard disk of your PC into the coin validator. By doing this, a new data block is loaded into →...
  • Page 51 LOSSARY Sorting control line To sort the cash-box coins with an external sorting device, the coin validator has sorting control lines. Sorting gate The sorting gates are activated in the coin validator depending on the run time of accepted coins and direct the coins to be sorted into the coin return or coin outlet towards the cash-box or external sorting device.
