Page 1: Quick Start Guide

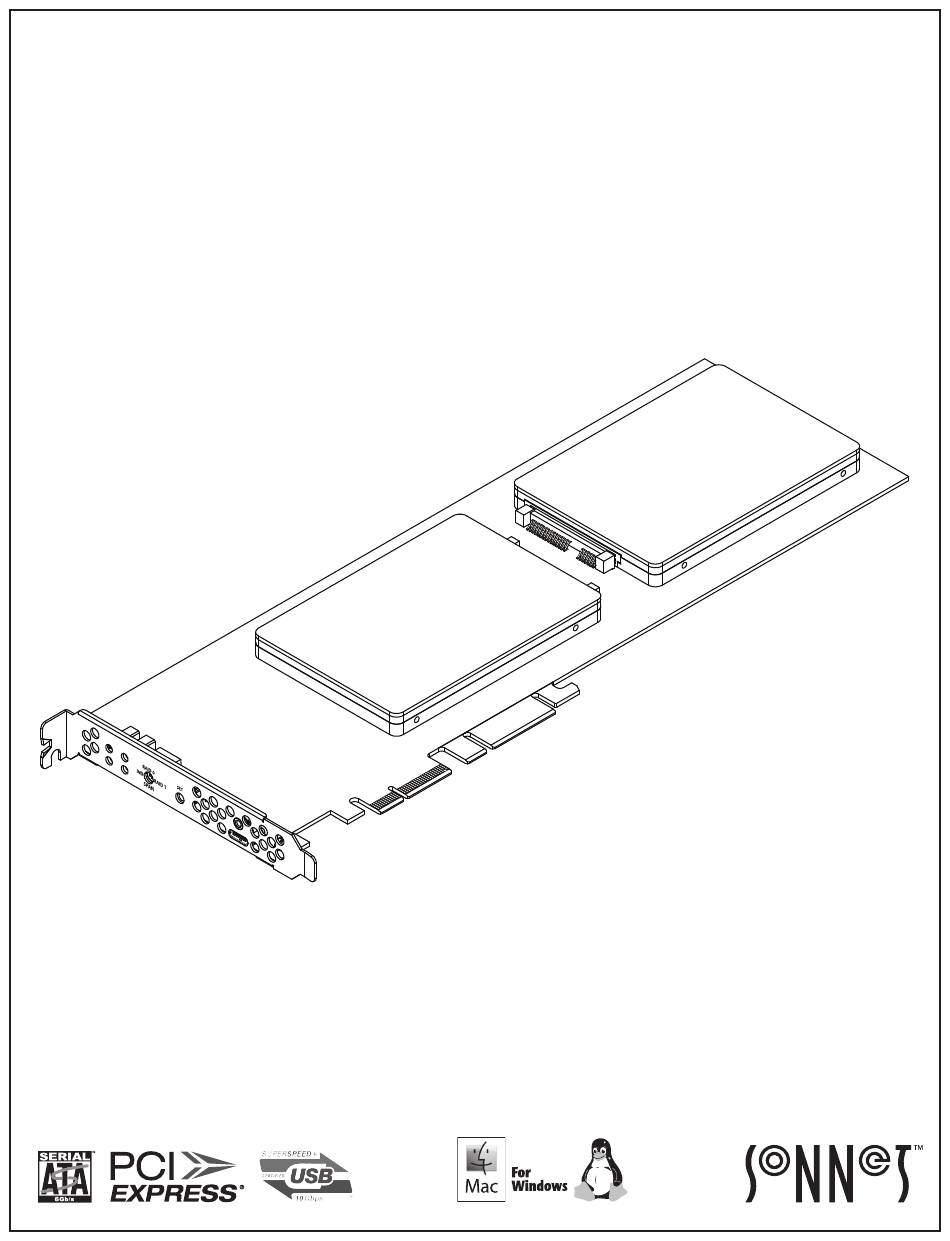

Quick Start Guide for Fusion Dual -inch SSD RAID ™ Fusion Dual 2.5-inch SSD card illustrated with SSDs attached; drives not included (sold separately). - Page 2 Go to www.sonnettech.com/support/kb/kb.php and click the • Linux Kernel 5.0+ Computer Cards link, and then click the PCIe Cards link. Click the Fusion Dual 2.5-inch SSD RAID link, and then click the Driver Thunderbolt Compatibility link. Download and install the USB 3.0 Power Kernel Extension.
- Page 3 In longer PCIe slots, these tabs provide additional support for and write activity, while the error (ERR) LED’s indicate a fault the Fusion Dual 2.5-inch SSD RAID card. In some installations, status. it may be necessary for you to snap off one or more of the tabs to enable the card to fit properly.
- Page 4 SSD Installation and Card Installation Steps Figure 1 Support Notes: When handling computer products, you must take care to prevent components from being damaged by static electricity. Before opening your computer or removing parts from their packages, always ground yourself first by touching a metal part of the computer, such as a port access cover, and work in an area free of static electricity;...
- Page 5 Figure 4 9. Using the remaining four screws, secure the SSD to the card; do not overtighten the screws (Figure 4). 10. The Fusion Dual 2.5-inch SSD RAID card is ready for installation. Support Note: There is no need for you...
- Page 6 Drive Mode Configuration Steps When you first turn on your system after installing the Fusion card, select a mode to configure the attached drives before using your operating system to format and prepare them for use. WARNING: Configuring the drives attached to your Fusion card results in them having to be reformatted.
- Page 7 Booting From Attached SSDs Contacting Customer Service The Fusion Dual 2.5-inch SSD RAID card does not support booting The Sonnet Web site located at www.sonnettech.com has the from attached SSDs. most current support information and technical updates. Before...
- Page 8 ©2019 Sonnet Technologies, Inc. All rights reserved. Sonnet, the Sonnet logotype, and Fusion are trademarks of Sonnet Technologies, Inc. iOS, Mac, the Mac logo, Mac Pro, and macOS are trademarks of Apple Inc., registered in the United States and other countries. Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation in the U.S. and/or other countries.
