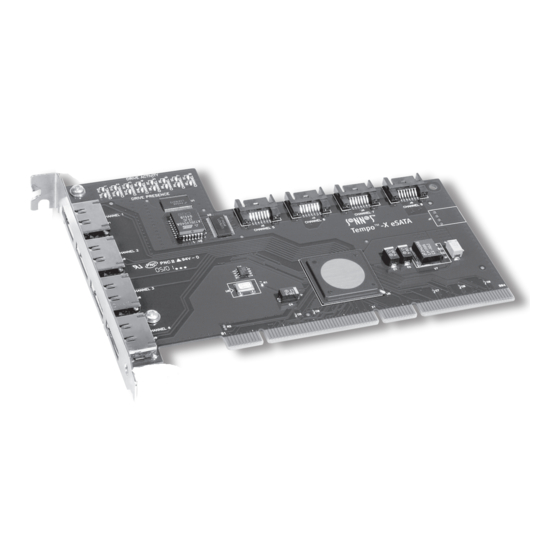

Sonnet TEMPO-X eSATA 4+4 Quick Start Manual

TEMPO
Quick Start Guide for Tempo-X eSATA 4+4

You Should Have

The following items should be included in your product package:
• One Tempo-X eSATA 4+4 card
• Two internal Serial ATA data cables
• Eight screws (for mounting hard drives)
• Two legacy to Serial ATA power cable adapters
The following items may be required for installation:
• Medium Phillips screwdriver
• Internal drive mounting hardware (sold separately)
• One or more external drive enclosures (sold separately)
• One or more additional internal Serial ATA data cables
(sold separately)
• One or more external Serial ATA data cables (sold separately,
eSATA connector required for end connecting to the Tempo-X card)
• One or more legacy (4-pin) power cable Y-adapters (sold
separately)
• One or more legacy to Serial ATA (4-pin to 15-pin) power cable
adapters (sold separately)
• One or more Ultra ATA to Serial ATA adapters (sold separately, only
used to support parallel ATA drives)

System Requirements

The Tempo-X eSATA 4+4 requires the following in order to operate in your
system:
• One available PCI-X or PCI slot
• Mac OS X Version 10.2.x or later, or Windows
®
Support Notes:
We recommend that you make a backup of important
information on your system's current hard drive prior to installing new
hardware or software.
When handling computer products, you must take care to prevent components
from being damaged by static electricity. Before opening your computer or
removing parts from their packages, always ground yourself first by touching
a metal part of the computer, such as a port access cover, and work in an area
free of static electricity; avoid carpeted areas. Handle all electronic components
only by their edges, and avoid touching connector traces and component pins.
Also, avoid touching the logic board and any of its components.
WARNING FOR MAC USERS:
HighPoint RocketRAID product or the kernel extension installed by its
supporting software. If you have the HighPoint product installed in your system,
be sure to remove the HPTRAIDController.kext file before you install the
Tempo-X eSATA 4+4 into your system. Refer to the RocketRAID documenta-
tion for detailed instructions.
Remember to register your product online at http://registration.sonnettech.com to be informed of future upgrades and product releases.
Software updates and links are available from the Sonnet web site at www.sonnettech.com. • Online support form available at http://supportform.sonnettech.com.
Sonnet Technologies Customer Service hours are Mon.-Fri., 7 a.m.–5 p.m. Pacific Time • Customer Service Phone: 1-949-472-2772 • E-mail: support@sonnettech.com
Sonnet Technologies, Inc., Irvine, California USA • Tel: 1-949-587-3500 Fax: 1-949-457-6350
©2005 Sonnet Technologies, Inc. All rights reserved. Sonnet, the Sonnet logotype, Simply Fast, the Simply Fast logotype, and Tempo are trademarks of Sonnet Technologies, Inc. Macintosh and Mac are trademarks of
Apple Computer, Inc., registered in the United States and other countries. Other product names are trademarks of their respective owners. Product specifications subject to change without notice. Printed in the USA.
QS-TSATAII-X44-E-A-080508
-X eSATA 4+ 4
™
8-Port Serial ATA PCI-X Host Controlle r
XP
®
This product is not compatible with the
