Sonnet ENCORE/ST G4 DUET Quick Start Manual

ENCORE
Dual Processor Upgrade Card for Power Mac
Quick Start Guide for Encore/ST G4 Duet
Power Mac and Operating System Compatibility
This Encore/ST G4 Duet processor upgrade card is compatible only with Power
Mac G4 AGP Graphics, Gigabit Ethernet, Digital Audio, QuickSilver 2001, and
®
QuickSilver 2002 models. Installation of this product into a Power Mac G4 Cube is not
currently supported. If you are unsure which Power Mac model you have, refer
to Apple's online support article that describes the differences at
http://docs.info.apple.com/article.html?artnum=58418. This article lists
model numbers, and describes the physical aspects of the various Power Mac G4
models.
At this printing, the Encore/ST G4 Duet processor upgrade is compatible with
®
Mac OS 9.2 through OS X Version 10.3.x. For up-to-date Mac OS compatibility
information, check our web site.
WARNING:
Some Power Mac G4 (AGP Graphics)
models are incompatible with dual processor cards. If
you purchased this upgrade for a Power Mac G4 (AGP Graphics)
computer, be sure to read the included warning sheet for infor-
mation on how to determine whether your system is compatible
before you install this product.
In order for the Encore/ST G4 Duet to operate in your
system, Mac OS 9.2 (or later), and the latest Power Mac
G4 firmware must be installed. If your system does not
meet these criteria, you must upgrade to OS 9.2 (or later) and
update your system's firmware before installing this upgrade.
Otherwise, your system will not operate with the Encore/ST G4
Duet installed. Instructions follow.
The Encore/ST G4 Duet supports hard disk and display sleep in all compatible
Power Mac G4 computers; in some confi gurations, deep sleep may not be
supported.
You Should Have
The following items should be included in your product package:

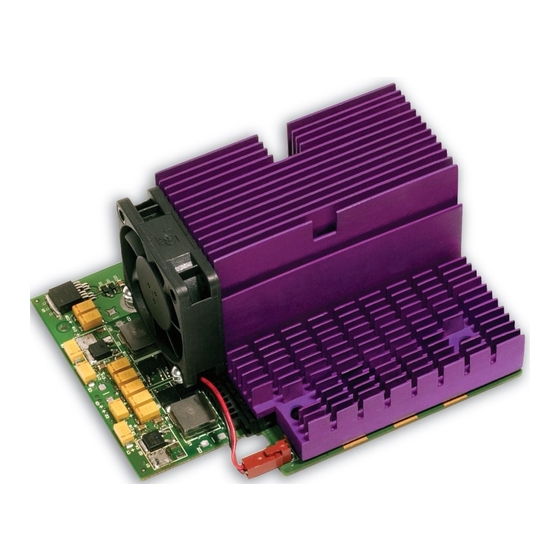

• Encore/ST G4 Duet processor upgrade card*
• Power card*
• Sonnet Installer CD
The following items are required for installation:
• Medium Phillips screwdriver
• Flat blade screwdriver (only for QuickSilver installation)
• Needle-nose pliers
* Your card may differ from what is pictured.
Remember to register your product online at http://registration.sonnettech.com to be informed of future upgrades and product releases.
Software updates and links are available from the Sonnet web site at www.sonnettech.com. • Online support form available at http://supportform.sonnettech.com.
Sonnet Technologies Customer Service hours are Mon.-Fri., 7 a.m.–5 p.m. Pacific Time • Customer Service Phone: 1-949-472-2772 • E-mail: support@sonnettech.com
Sonnet Technologies, Inc., Irvine, California USA • Tel: 1-949-587-3500 Fax: 1-949-457-6350
©2002 Sonnet Technologies, Inc. Revised 2004. All rights reserved. Sonnet, the Sonnet logotype, Simply Fast, the Simply Fast logotype, Duet, and Encore are trademarks of Sonnet Technologies, Inc. Macintosh and Mac are trade-
marks of Apple Computer, Inc., registered in the United States and other countries. Other product names are trademarks of their respective owners. Product specifications subject to change without notice. Printed in the USA.
QS-SG4D-E-A-082004
ST G 4 DUET
™
/
™
® G4 AGP Graphics
Support Notes:
the following instructions before beginning the
installation. If you feel you are unable to install the com-
puter hardware, please contact a qualified computer
technician. Sonnet strongly recommends that a qualified
technician perform this installation.
Before proceeding with the installation, we recommend
that you make a backup of important information on your
hard drive prior to installing new hardware or software.
Multiple Upgrade Recommendation
If you intend to perform multiple hardware upgrades to
your Power Mac, we recommend that you complete the
installation of the Encore/ST G4 Duet fi rst, and then
install the remaining upgrades; complete each upgrade and
test it before proceeding to the next.
Please familiarize yourself with
