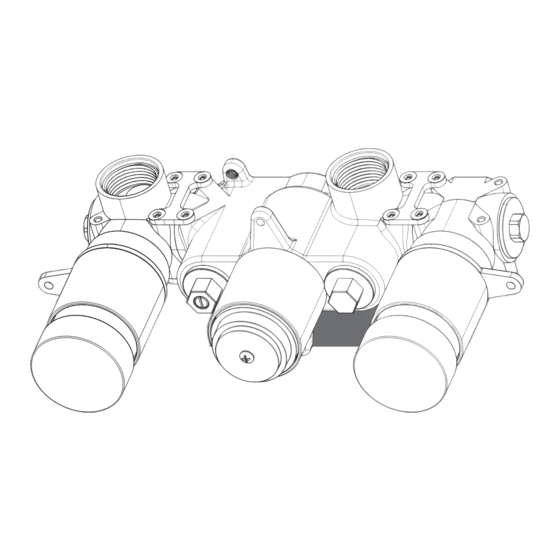

Thermo Shower Valve
US-DL2001RC & US-DL2001RC_BATH
Installation Instructions
Introduction
This thermostatic valve is suitable for use with all water systems up to
a maximum operating pressure of 72 psi and static pressure of 144 psi,
water pressure requirement is 14.5 psi.
a main shower head.
IMPORTANT:
Please read these instructions carefully before you begin and
retain for future reference.
Installation notes
NOTES: The installation must comply with all plumbing codes
including local codes. This valve is a mixing device and therefore
requires the water supplies to be reasonably balanced, otherwise we
unbalanced line pressures.
Fitting isolating valves to the inlet feeds is recommended for ease of
before connecting to any existing pipe work.
WARNING! Please check for any hidden pipes and cables, electric
or otherwise before drilling holes in a wall.
Tools required
Pipe wrench
Tubing
cutter
Channel
locks
Plumbers' putty
or caulking
Adjustable
wrench
Hexagonal
key
Cross head
Flat head
screwdriver
screwdriver
COLD
MAIN OUTLET
INLET
FIXING
LUG
Roughing in dimensions
Finished
wall
3
tape
COLD CHECK
VALVE & FILTER
MAIN OUTLET
MAIN OUTLET
FIXING
LUG
3
1
/
3
1
/
8
8
/
" npt
3
/
" npt
4
4
3
/
" npt
4
HOT
INLET
HOT CHECK
VALVE & FILTER
MAIN OUTLET
3
/
" npt
4
