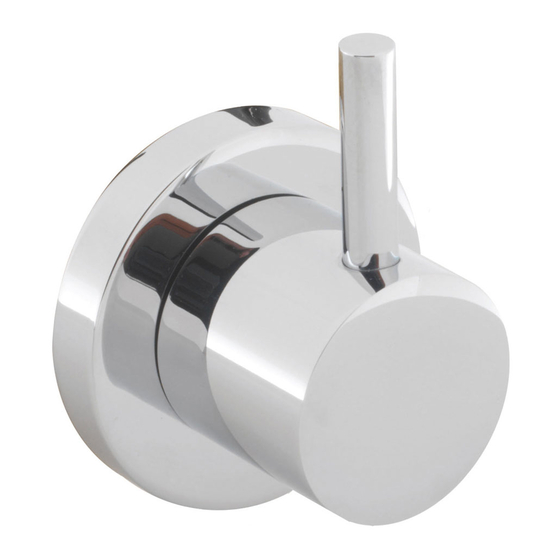

Crosswater KL0007WC Installation Instructions

4 way diverter wall mounted

Download this manual

Enlarged version

KL0007WC

4 Way Diverter wall mounted

INSTALLATION INSTRUCTIONS

For any further information please contact

Crosswater on: 0845 873 8840

Or visit our web-site at www.crosswater.co.uk

The manufacturer reserves the right to make technical

modifications without prior notice.

P5-Z0A158-E A/1

Need help?

Do you have a question about the KL0007WC and is the answer not in the manual?

Page 1 KL0007WC 4 Way Diverter wall mounted INSTALLATION INSTRUCTIONS For any further information please contact Crosswater on: 0845 873 8840 Or visit our web-site at www.crosswater.co.uk The manufacturer reserves the right to make technical modifications without prior notice. P5-Z0A158-E A/1...
Page 2 KL0007WC INTRODUCTION DIMENSIONS This diverter valve is suitable for use with all water systems with a operating pressure 1 Bar up to 5.0 bar, (beyond which we recommend pressure reducing valves to be fitted). The valve has three outlets that allow for additional fittings to be supplied.
Page 3 KL0007WC INSTALLATION INSTALLATION First shut off your water heating system then, with your mains stop cock closed, open the lowest hot and cold taps in the house and allow to run until the cold storage tank and pipes are empty (the hot water storage cylinder always VALV E remains full).
Page 4 KL0007WC MAINTENANCE CLEANING The chrome and gold plate we use on our taps is very durable, nevertheless care should be taken when cleaning them. They should be cleaned only with warm soapy water followed by rinsing with clean water and drying with a soft cloth. All finishes are vulnerable...
