Summary of Contents for Trotec PRCS 10-20V

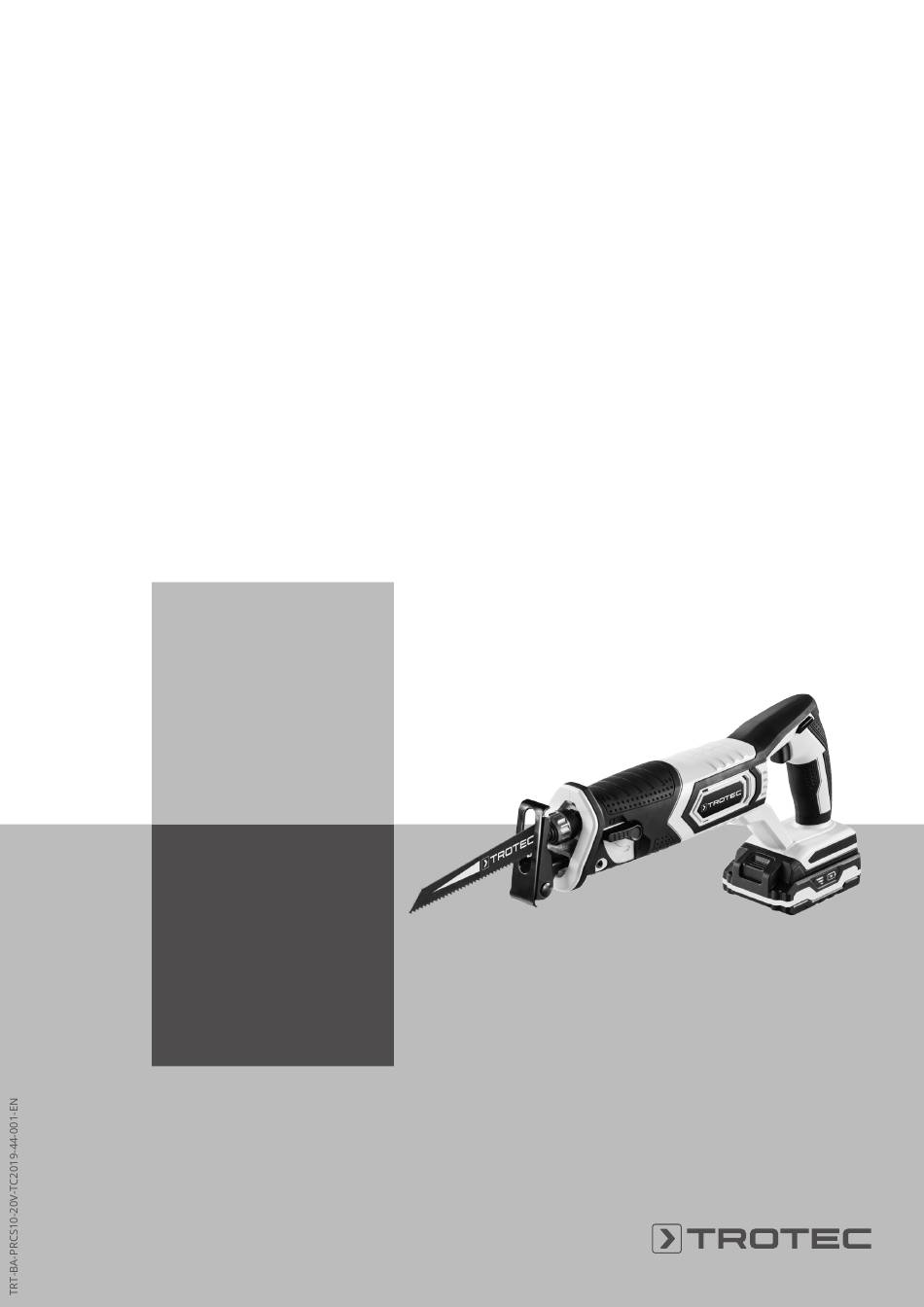

- Page 1 PRCS 10-20V ORIGINAL INSTRUCTIONS CORDLESS SABRE SAW...
-
Page 2: Table Of Contents
This signal word indicates a hazard with a low risk level which, if not avoided, can result in minor or moderate injury. Note This signal word indicates important information (e.g. material damage), but does not indicate hazards. cordless sabre saw PRCS 10-20V... -
Page 3: Safety
Any power tool that cannot be controlled with protected supply. the switch is dangerous and must be repaired. Use of an RCD reduces the risk of electric shock. cordless sabre saw PRCS 10-20V... - Page 4 Liquid ejected from the A dirty shank cannot be fastened securely. battery may cause irritation or burns. • Check the saw blade for tight fit. A loose saw blade could fall out and injure you. cordless sabre saw PRCS 10-20V...
- Page 5 (see instructions). the tool is switched on and running. Otherwise there is a risk of kickbacks. We recommend using the power tool with original Trotec • Make sure that the guide shoe is positioned securely accessories.
- Page 6 Wear protective gloves! Warning Toxic dusts! The harmful / toxic dusts produced during operation pose of risk to the health of the operator and persons in the vicinity. Wear eye protection and a dust mask! cordless sabre saw PRCS 10-20V...
-
Page 7: Information About The Device
Pendulum action selector switch Scope of delivery • 1 x Device PRCS 10-20V • 1 x Saw blade HCS wood (6 TPI) • 1 x Rechargeable battery • 1 x Quick charger • 1 x Transport case • 1 x Manual cordless sabre saw PRCS 10-20V... - Page 8 Uncertainty K 1.5 m/s² Sound values according to EN 62841-2-11 Sound pressure level L 83.28 dB(A) Sound power L 94.28 dB(A) Uncertainty K 5 dB Wear hearing protection. Excessive noise can lead to hearing loss. cordless sabre saw PRCS 10-20V...
-
Page 9: Transport And Storage
• Check the contents of the transport case for completeness and look for damages. Warning Risk of suffocation! Do not leave the packaging lying around. Children may use it as a dangerous toy. • Dispose of the packaging material according to the national regulations. cordless sabre saw PRCS 10-20V... - Page 10 Charging the battery. Allow the battery (8) to cool down to room temperature. 5. Take the battery (8) out of the quick charger (13) by pressing and holding the release button (10) and pulling the battery (8) off the quick charger (13). cordless sabre saw PRCS 10-20V...
- Page 11 All saw blades having an S-shank or a ½'' universal shank can be used for this device. The saw blade should not be longer than required for the cut. A narrow saw blade should be used when sawing tight curves. cordless sabre saw PRCS 10-20V...
- Page 12 When the power tool is positioned, the head of the guide shoe adapts to the surface of the workpiece (inclination of up to 30°). After completing the operation, the head of the guide shoe can be brought back to its initial position. cordless sabre saw PRCS 10-20V...
-
Page 13: Operation
Process the workpiece with an even forward motion and contact pressure. After completing the sawing operation, switch off the power tool. • The saw blade should not be longer than required for the intended cut. cordless sabre saw PRCS 10-20V... - Page 14 Schematic representation flush cutting: workpiece. • As soon as the guide shoe (14) rests on the workpiece, you can continue working along the cutting line. Schematic representation plunge-cutting: cordless sabre saw PRCS 10-20V...
-
Page 15: Available Accessories
The battery must lock in place in the quick charger. • Check the power connection. • Check the power cable and mains plug for damages. • Check the fuse (home). cordless sabre saw PRCS 10-20V... -
Page 16: Maintenance
• Check the quick charger for damages. Should the quick Maintenance charger be damaged, stop using it. Contact the Trotec customer service. Activities required before starting maintenance • Check the battery terminals for dirt. Remove any dirt. Warning of electrical voltage •... -
Page 17: Technical Annex
Circuit diagram Technical annex Overview of spare parts Note: The position numbers of the spare parts differ from those describing the positions of the components mentioned in these instructions. cordless sabre saw PRCS 10-20V... - Page 18 The big gear shaft Charger Circlip for shaft Ø8 mm Cross groove pan head self tapping screw ST4.2 x 13 Deep groove ball bearing Fuselage insert bracket Circlip for hole Positive pole of motor conductor Washer cordless sabre saw PRCS 10-20V...
-
Page 19: Disposal
The Annex II, Part 1, Section A addresses can be obtained from your municipality or local Herewith, we – Trotec GmbH– declare that the machinery administration. For further return options provided by us please designated below was developed, constructed and produced in refer to our website www.trotec24.com. - Page 20 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
