The detector SensoMAG F10 is compatible with any conventional Fire Panel with fire alarm
threshold between 10mA and 15mA (between 10mA and 30mA with B24RD fire base).
The detector SensoMAG F10 can be used with 4 bases types:
B B12; B12L/U - Base with relay output (not covered by EN54-5);
C B24 - Standard base;
D B24D - Standard base with Schottky diode;
E B24RD - Standard base with Schottky diode and increased alarm state current.
1. Choose the proper place for installation of the fire detector. Refer to the given installation
instructions. Note: Do not install the detector near to natural heat sources, e.g. above cookers,
ovens or fire places.
SensoMAG F10
2. If you want to "lock" the detector to the base remove the little "tooth" (with the triangle shape)
and break the plastic key off the base. Keep the plastic key in safe place to be able to open the
detector later.
3. Mount the fire base on the ceiling of the protected premises using fixings according the mounting
surface.
4. Connect the detector base to the fire panel using the wiring diagram.
ATTENTION: Disconnect the line power before installing the detector!
5. Insert the detector into the base and rotate clockwise until it drops into place. Continue to rotate
Teletek Electronics JSC
the detector until it locks to the base - a click is heard.
Address: 14A Srebarna Str,
6. If the detector has been locked to the base, when open it for a service schedule maintenance
1407 Sofia, Bulgaria
and cleaning you have to use the plastic key. Light press with the plastic key into the base opening
08 / 1293-CPD-0117
and at the same time rotate the detector head counter-clockwise.
EN54-5
ATTENTION: In case of removing the detector's PCB for service maintenance, when
mounting it back, find the color dot sticker on the PCB and orientate it to the mark on the
plastic body (visible from the outside). The hole next to the color dot have to coincide with
the pin on the plastic body. Gently press downwards to fix the PCB in place.
7. Test the detector for proper operation and LED indication.
SensoMAG Bases / Типове основи /
!
Tipos de Bases / Soket
B12; B12L/U
O detector SensoMAG F10 é compatível com qualquer central de incêndio convencional com
intervalo de alarme de fogo entre 10mA e 15mA (entre 10mA e 15mA com base B24RD ).
O detector SensoMAG F10 pode ser utilizado com 4 tipos diferentes de bases:
B B12; B12L/U - Base com saída de Relé (não cumpre a norma EN54-5);
+12V
C B24 - Base Standard;
D B24D - Base Standard com Diodo;
E B24RD - Base Standard com Diodo e aumento da corrente de alarme.
1. Escolha o melhor local para a Instalação do detector. Siga as instruções do manual de
instalação fornecido. Nota: Não instale o detector próximo de fontes de calor ex: por cima de fogões,
fornos ou locais com fogo.
2. Se desejar "fechar" o detector na base, remova o "dente" em forma de triângulo e quebre a
chave plástica da base. Guarde a chave plástica em local seguro para poder abrir o detector mais
tarde.
3. Instalar a base do detector no tecto utilizando elementos de fixação apropriados à superficie na
qual se pretende fixar o detector.
4. Ligar a base do detector à central de incêndio utilizando o esquema de ligação.
ATENÇÃO: Desligar a alimentação antes de instalar o detector!
5. Introduzir o detector na base e rodar na direcção dos ponteiros do relógio. Continuar a rodar até o
detector estar fechado na base um click é audível.
6. Para abrir o detector para Manutenção e limpeza tem de se utilizar uma chave plástica.
Pressionar ligeiramente a chave plastica na base e ao mesmo tempo rodar o detector no sentido
oposto ao dos ponteiros do relógio.
ATENÇÃO: No caso de remover o PCB do detector para Manutenção, quando voltar a colocá-
lo procure a etiqueta colorida no PCB e orientá-la pela marca no corpo em plástico do detector
(visível do exterior). O espaço junto ao ponto colorido tem de coincidir com o pino no corpo
em plástico. Pressione cuidadosamente para fixar o PCB.
7. Testar o detector e indicação dos LED'S para um funcionamento correcto.
18020568, RevB, 03/2014

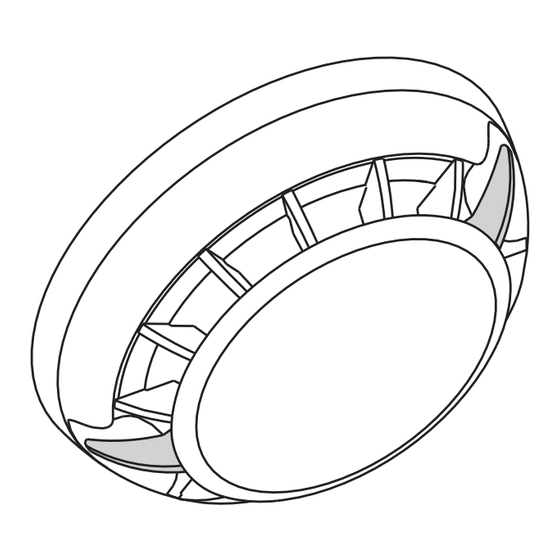

SensoMAG F10 - F
ixed Temperature Detector
English
Installation Instruction
SensoMAG F10 - Detector de temperatura
Português
Manual de Instalação
SensoMAG F10 - Детектор с фиксирана температура
Български
Инструкция за инсталиране
Детектор SensoMAG F10 е съвместим с всеки конвенционален пожарен панел с праг на
влизане в състояние ПОЖАР между 10mA и 15mA (между 10mA и 30mA с основа B24RD).
Детектор SensoMAG F10 е съвместим с 4 типа основи:
B B12; B12L/U - Релейна основа (не се покрива от EN54-5);
C B24 - Стандартна основа;
D B24D - Стандартна основа с Шотки диод;
E B24RD - Стандартна основа с Шотки диод и увеличен ток в алармено състояние.
1. Изберете подходящо място за монтаж на детектора. Следвайте дадените инструкции за
инсталиране. Забележка: Не инсталирайте детектора в близост до естествени
източници на топлина, например над готварски печки, фурни или камини.
2. Ако желаете да "заключвате" детектора към основата отстранете зъбчето с триъгълна
форма (използвайте малка плоска отвертка) и отчупете пластмасовия ключ. Съхранявайте
пластмасовия ключ на достъпно място, за да можете при необходимост да свалите детектора
от основата.
3. Монтирайте основата на тавана на помещението, като подберете винтове и дюбели според
монтажната повърхност.
4. Извършете електрически монтаж съгласно приложената схема.
ВНИМАНИЕ: Изключете захранването на линията преди да монтирате детектора!
5. Поставете детектора в основата и го завъртете по посока на часовниковата стрелка до
попадане в направляващите канали. Продължете да въртите докато маркерите на основата и
детектора съвпаднат - чува се щракване.
6. Ако детекторът е заключен към основата, за да го отворите за почистване и поддръжка
трябва да използвате пластмасовия ключ. Леко натиснете с ключа в отвора на основата и
едновременно с това завъртете детектора обратно на часовниковата стрелка.
ВНИМАНИЕ: В случай, че сте свалили платката на детектора за поддръжка, за да я
монтирате обратно към корпуса, използвайте за ориентир цветният стикер в единият от
ъглите й. Завъртете платката така, че отвора от лявата страна на цветния стикер да
съвпадне с репера от външната страна на корпуса. Отворът трябва да съвпадне с
щифта отдолу. Натиснете внимателно платката надолу, за да я фиксирате на място.
7. Тествайте детектора за правилна работа и светлинна индикация.
SensoMAG F10 - S
Türkçe
Montaj Kılavuzu
SensoMAG F10 dedektör yangın rejimi duşük eşik değeri 10mA÷15mA arası olan her
konvansiyonel panel ile uygundur (değeri 10mA÷15mA B24RD tip soket ile).
SensoMAG F10 dedektör 4 ayrı soket ile kullanılabilir:
B B12; B12L/U - röleli soket (EN54-5'e göre uyumlu değildir);
C B24 - standart soket;
D B24D - standart soket Schottky diod ile;
E B24RD - standart soket Schottky diod ile ve alarm durumunda artan akım.
1.Dedektörün montaj yerini seçiniz. Verilen montaj talimatlarına uyunuz. NOT: Dedektörü ısı
kaynağı yakınına monte etmeyiniz, örneğin ocak, fırın gibi.
2. Dedektör ile soketi birbirine bağlamak istediğinizde, üçgen şeklindeki "dişi" (küçük yassı
tornavida yardımıyla) ayırın ve plastik anahtarı soketten koparın. Plastik anahtarı uygun bir
yerde muhafaza edin. İhtiyaç olduğunda bu anahtar ile dedektörü soketten ayırabilirsiniz.
3. Dedektör soketini korunan alanın tavanına, uygun vida kullanarak monte ediniz.
4. Elektrik bağlantılarını ilgili şemaya göre yapınız.
DİKKAT: Elektrik montajı sırasında besleme olmamalıdır!
5. Dedektörü sokete yerleştiriniz ve saat yönünde, kılavuz kanallara yerleşene kadar
çeviriniz. Çevirmeye devam ediniz. Dedektör ve soket işaretleri karşı karşıya gelecektir ve
kilitleme sesi duyulacaktır.
6. Eğer dedektör soketinden üçgen şeklindeki "dişi" ayırdıysanız, dedektörün temizliği ve
bakımı ile ilgili plastik anahtarı kullanmalısınız. Hafifçe anahtarı soket deliğine bastırınız ve aynı
zamanda dedektörü saat yönüne ters çeviriniz.
DİKKAT: Servis (bakım, onarım) için dedektör kasasını sökmek gerekirse, yeniden
takarken PCB üzerindeki renkli etiketin plastic kasadaki işaretle denk gelmesine ve denk
geldiğinde hafifçe itilerek monte edilmesine dikkat ediniz.
7. Dedektörü çalışma ve ışıklı işaretler testine tutunuz.
