Knape & Vogt TO1710 Installation Instructions

Parts Included

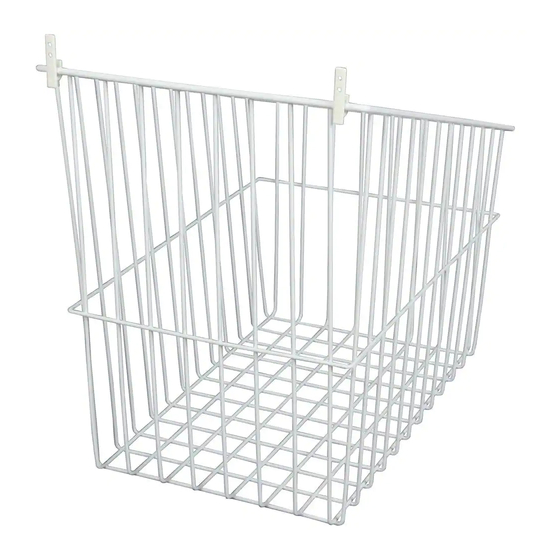

A. Hamper basket
B. J-hooks
C. Mounting Screws
A.

Tools Required

• Phillips head screwdriver
• Drill with 1/16" (1.5mm) bit for drilling
pilot holes
• Pencil
Product Assemblies
TO1710
TO1713
TO1716
KNAPE & VOGT MANUFACTURING COMPANY
P.O. Box 191, Muncie, IN 47308
0.899.6535 • 765.288.8730 • Fax 765.288.0851 • www.kv.com
TILT-OUT HAMPER

Installation Instructions

Inspect all parts and read all instructions prior to beginning assembly and installation.
Step 1 Open cabinet door and hold hamper in
place on back of door. Hamper is
designed to be installed on the top
frame of the wood where the wood is
the thickest. Caution: Make sure the
mounting screws are not longer than
the thickness of the door by
C.
measuring the thickness at the
doorframe.
Step 2 Mark the position of the mounting
screw locations with a pencil. It is
recommended to use small pilot holes
drilled into the door to avoid splitting
the wood. Fasten the J-hooks in
B.
place, using the screws provided.
Hand hamper on J-hooks. Installation
is now complete.
step 1
step 2
RN-230EFS 05/03
