Variable-height keyboard slide

Advertisement

Quick Links

Slide
12*
13
14*
Size
Side
Travel
A
B
C
D
E
F
G

Specifications

7 position, adjustable and reversible mounting bracket.
Friction latch securely holds keyboard in extended position.
Metal Ball Bearing Retainer and three precision steel ball bearings per inch of race for
smooth quiet movement and durability.
Drawer track member disconnects quickly using positive lever release for easier installation.
Anti-rebounding, Stay-Close feature holds tray in closed position.
Bright electro-zinc plated with lacquered finish for better corrosion resistance. Black finish available.
PATENTS PENDING

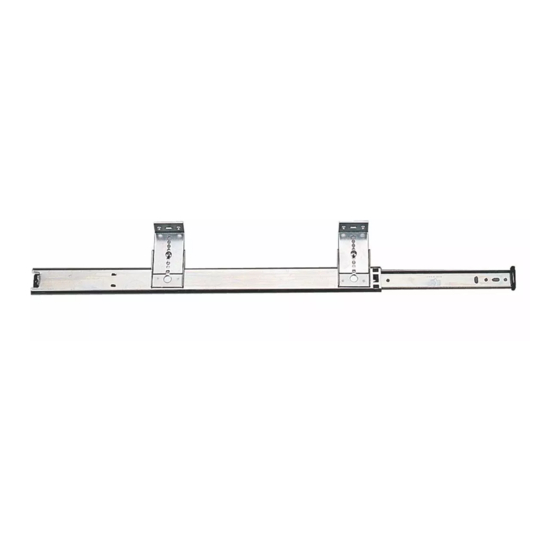

8150 Variable-Height Keyboard Slide

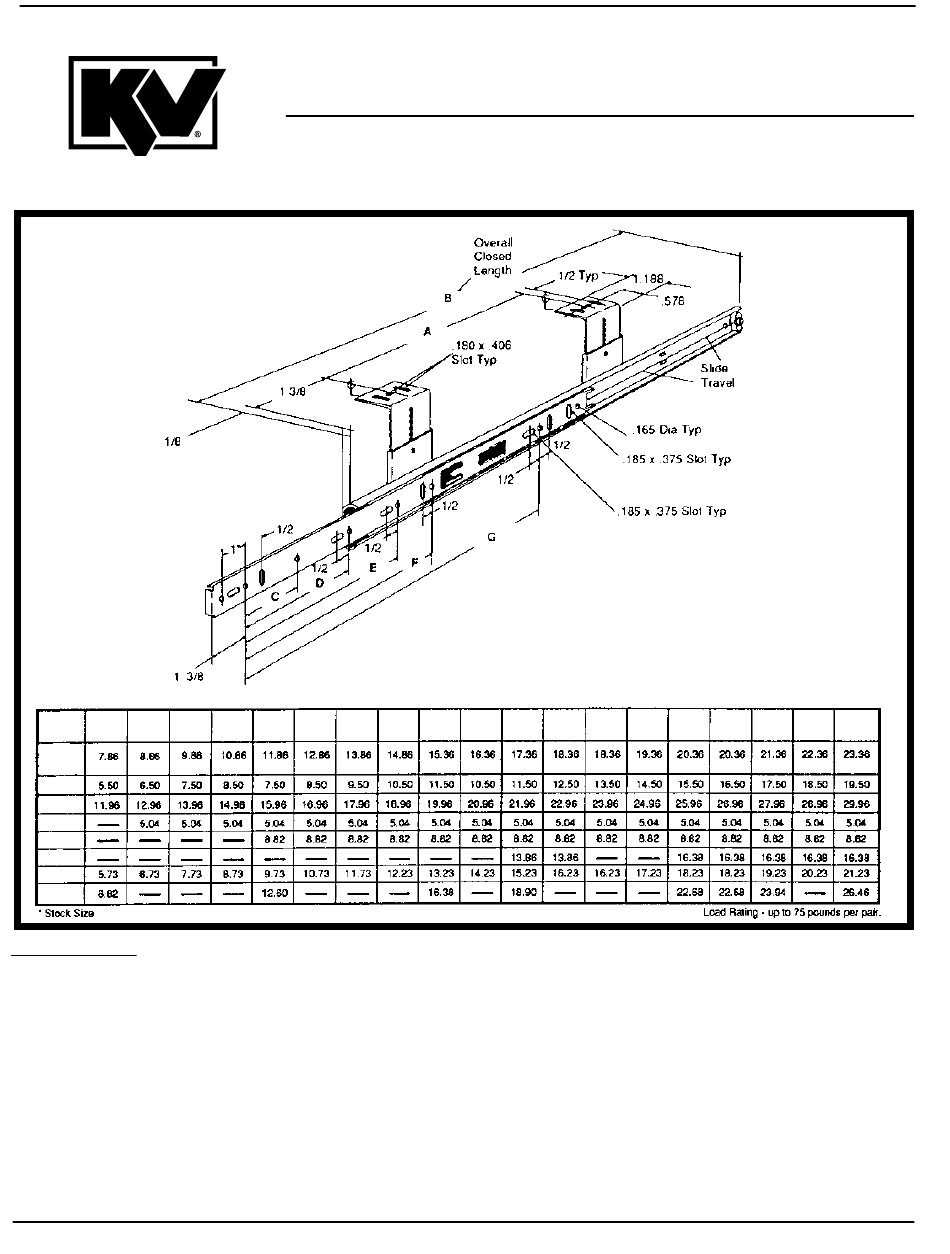

KV 8150 Major Dimensions and Mounting Hole Locations
15
16*
17
18*
19
20*
21
22*
23
24*
25
26*
27
28*
29
30*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Knape & Vogt 8150

  • Page 1 8150 Variable-Height Keyboard Slide KV 8150 Major Dimensions and Mounting Hole Locations Slide Size Side Travel Specifications • 7 position, adjustable and reversible mounting bracket. • Friction latch securely holds keyboard in extended position. • Metal Ball Bearing Retainer and three precision steel ball bearings per inch of race for smooth quiet movement and durability.
  • Page 2 Installation Instructions for: 8150 Variable-Height Keyboard Slide For Best Results, Read Instructions First! These instructions show how to install the KV 8150 Keyboard Slide. Please note that improper installation may void the Knape & Vogt Lifetime Limited Warranty. To install the slides correctly, follow these instructions, use only KV hardware, and make no modifications.
  • Page 3 Step 2 Separate parts. Press the lever and pull to separate the cabinet and drawer members as shown in Figure 2. Step 3 Adjust brackets. Set the adjustable brackets to the desired height as shown in figure 3. The brackets may face either inwards or outwards.
  • Page 4 Major Dimensions, Mounting Hole Locations and Adjustable Bracket Settings. Limited Lifetime Warranty Knape & Vogt Manufacturing Company guarantees its drawer slides and builder’s hardware products against failure or defects for so long as the purchaser or end user owns them. This warranty is void if any damage to the product is due to misuse, abuse, neglect, accident, improper installation or any uses contrary to the instructions accompanying the prod-...
