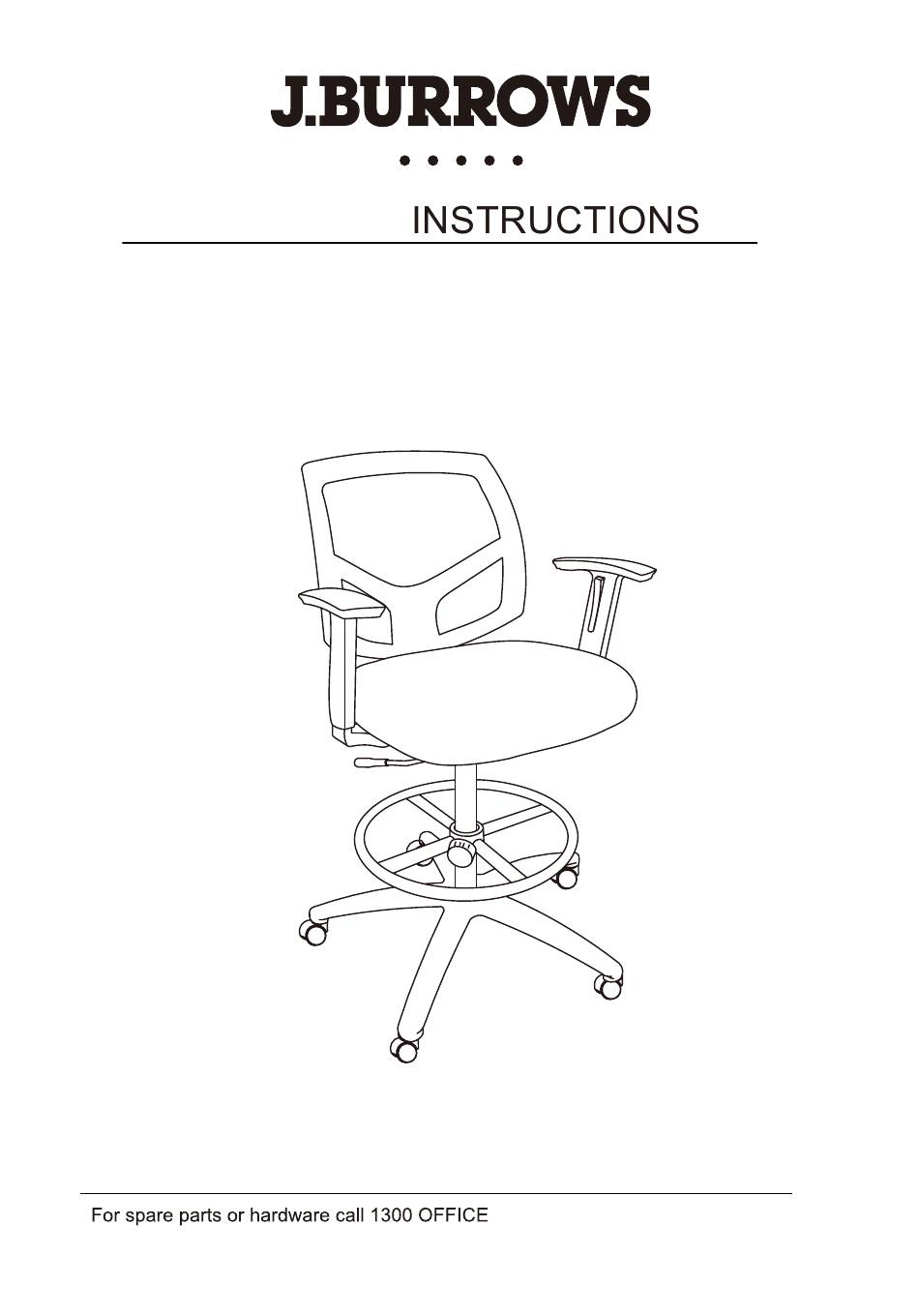

- Page 1 ASSEMBLY MATRIX MESH DRAFTING CHAIR JBMATMECBK This design and instruction booklet is subject to copyright. 1 CTN www.officeworks.com.au...
- Page 2 Estimated Assembly Time: 30 minutes Furniture Assembly Instructions S Assembly Video tyle Guide To view an assembly video, go to https://www.officeworks.com.au/ Search the product by item code or name: Click on the icon to watch the video. Customer Service Contact Details Spare Parts &...
- Page 3 NOTE • Please check you have all hardware before assembling. • If you are missing any hardware, please contact the store of purchase. • Please ensure you have the name of the item, required hardware part and quantity. • Please retain your receipt as proof of purchase to validate your warranty. CAUTION •...
- Page 4 Parts List Hardware List 1/4”x1-1/2” 1/4”x1-3/4” 5/16”x3/4” 5/16”x1” 5/16”x1-1/4”...
- Page 5 Assembly Step 1 Step 2 1/4”x1-1/2” 1/4”x1-3/4”...
- Page 6 Step 3 5/16”x1” 5/16”x1-1/4” IMPORTANT: To make assembly easier, do not tighten screws completely at this time. Step 4 5/16”x3/4” IMPORTANT: To make assembly easier, do not tighten screws completely at this time.
- Page 7 Step 3 Step 4 Now, tighten all screws using allen key-N...
- Page 8 Chair Height Adjustment To increase chair height pull lever upward while lifting body Arm Height Adjustment weight slightly off the seat. Pull lever up whilst moving the Release lever at desired height. arm up or down. Release lever To lower chair height sit fully into at desired height.
