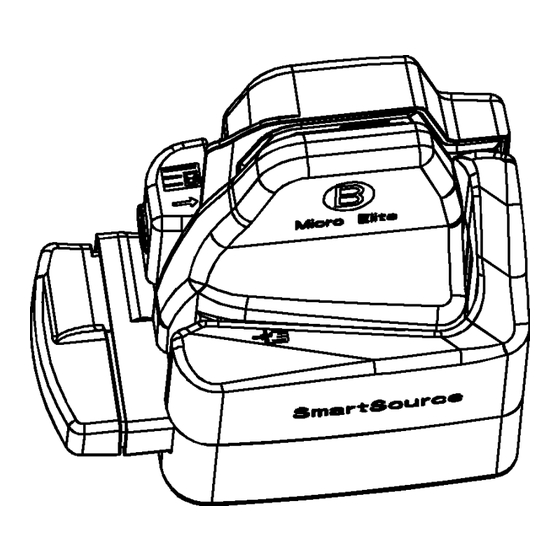

burroughs SmartSource Micro Elite Setup And Operation

Step 1 - Connect USB and Power Cables to the Scanner
1. First install scanner system software on the host PC
2. Connect the USB cable to the scanner and the host PC
3. Connect the Power cable to the scanner and AC outlet
USB CABLE
POWER CABLE
POWER SUPPLY-PUSH TO
RELEASE ADAPTER
8227 4738-001 April 2013
8227 5002-000 January 2014
SmartSource Micro Elite – Setup and Operation
Step 2 – Adjust the Scanner Floor Extender
•
Adjust the floor extender to accommodate
the longest document
Floor Extender
Step 3 – Scanner Start-up and Shut-down
•
Power ON the scanner by pushing and holding down the
Power Button for 2 seconds
•
When the power light stops blinking, the scanner is ready
to process documents (the power button light will be ON)
•
To turn OFF the scanner, push and hold the button for 5
seconds and then release (the power button light will go OUT)
Power
Button
Power Button Light
On – Unit is ON, and ready
Off – Unit is OFF
Flashing –
Unit is powering up
or exception condition
encountered during
document processing
Page 1 of 16
