QUICK-START INSTALLATION GUIDE
Pressing the Right arrow key a second time will display the Setup menu for the Primary port, which
shows current information and allows front panel network setup. This includes setting DHCP (enabled or
disabled), the IP address, the netmask, and the gateway. Pressing the Right arrow again will display the
same menu for the Secondary network connection if connected.
In most cases, a static (fixed) IP address will be desirable, especially on the streaming (Secondary) port. To
set a static address in the Primary Network connection:
1. Press the OK button to highlight the DHCP status
2. Press the Up and Down arrows to toggle DHCP on and off
3. With DHCP disabled, press the Right arrow to move the cursor to the first character of the
IP address
4. The Up and Down arrows change the value of the selected character
5. The Left and Right arrows move the cursor back and forth between characters
6. Once the IP address is set, press the Right arrow to move the cursor to the netmask field
7. The Up and Down arrows scroll through the available netmask values
8. Once the netmask is set, press the Right arrow to move the cursor to the gateway field; the
process for setting the gateway address is the same as setting the IP address
9. Once the gateway is set, press the Right arrow to highlight "OK", then press the OK button to save
your changes
10. If you need to back out of this menu without saving any changes, highlight "Cancel" instead and
press the OK button
To set a fixed address for the Secondary connection, press the Right arrow twice from the Splash screen
and follow the above steps.

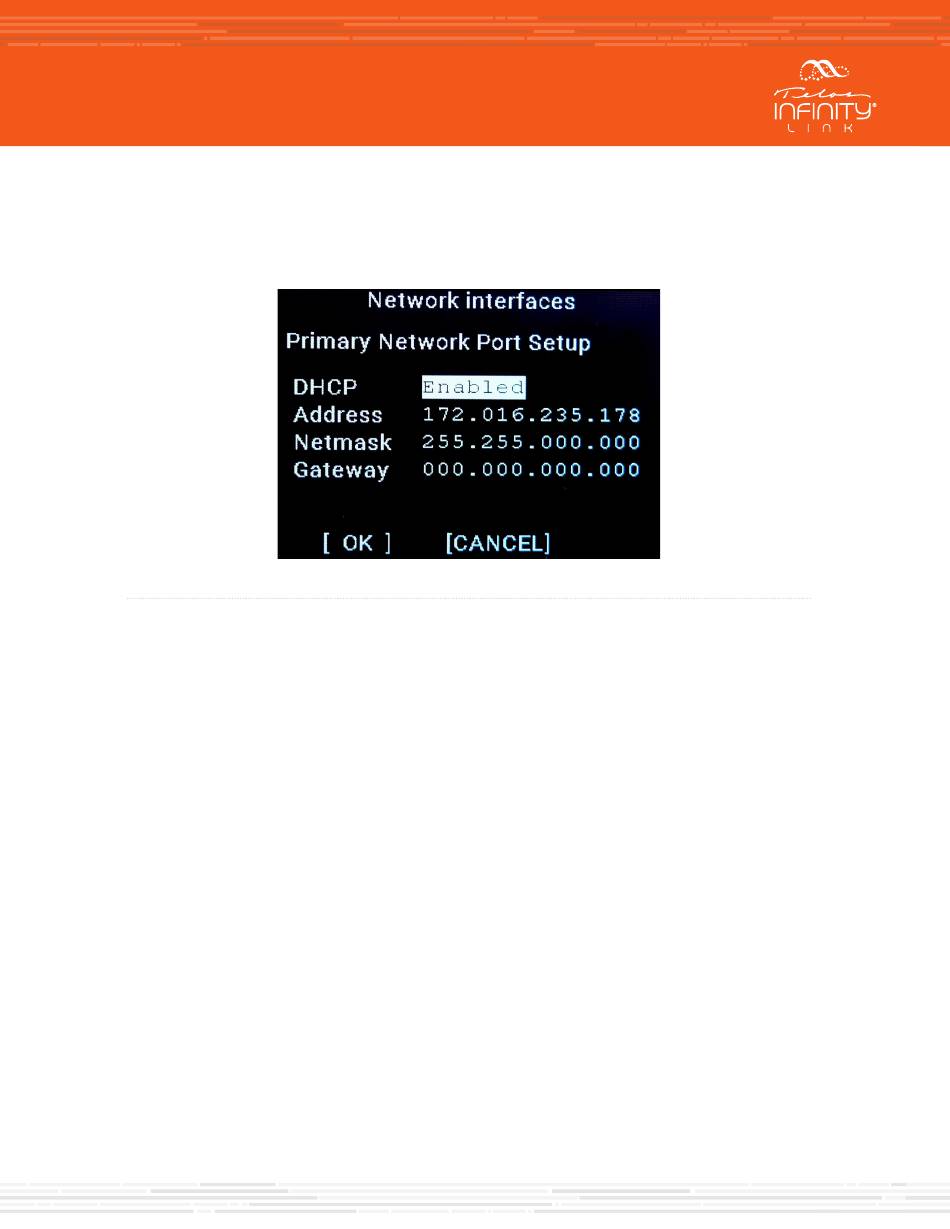

Figure 5: Front panel Network Setup screen
