QUICK-START INSTALLATION GUIDE

Setting IP Addresses

The Primary Ethernet port is used to receive Livewire+ AES67 audio from your LAN side network. The
Secondary port should be connected to the network on which you intend to stream which include (but are
not limited to) slower Internet, WAN or VPN connections that lack the bandwidth needed to support LW+
AES67. The Secondary port must be connected to a Gigabit (1000Base-T) port on the router.
The web-based user interface can be accessed over either port.
By default, Infinity Link Gateway is set up with DHCP enabled so that it will receive an IP address
automatically when connected to a network with a DHCP server. DHCP can be disabled and a static
address entered if preferred.
Each port contains a field for entering a gateway address, however, both ports will use the most
recently entered gateway address. Since the gateway of the Secondary port will be most critical in most
applications, it should be entered second.
Pushing the Right arrow on the front panel from the Splash screen will display the Network Interface
status screen for both Primary and Secondary networks.

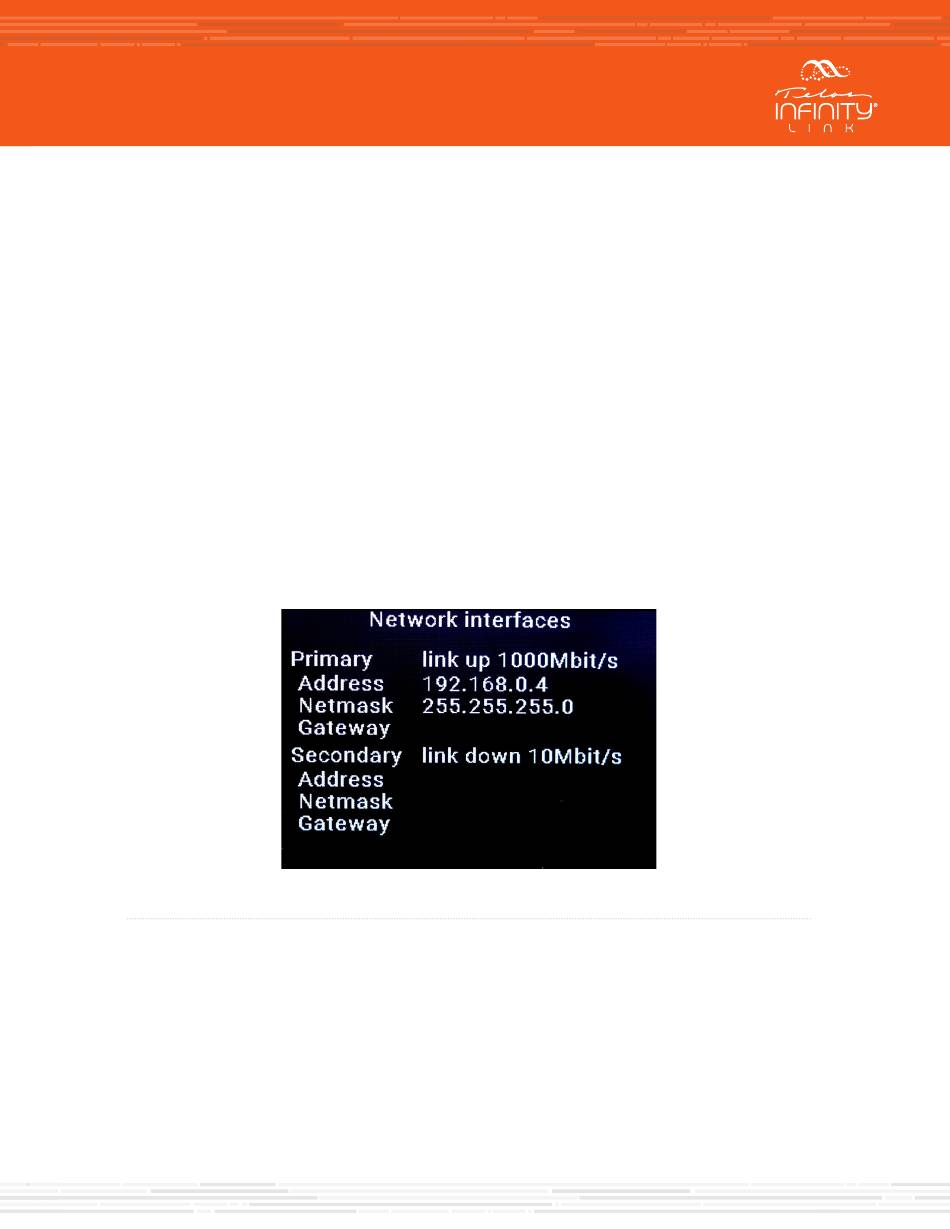

Figure 4: Front panel Network Status screen
