Summary of Contents for Thinklogical Q-Series

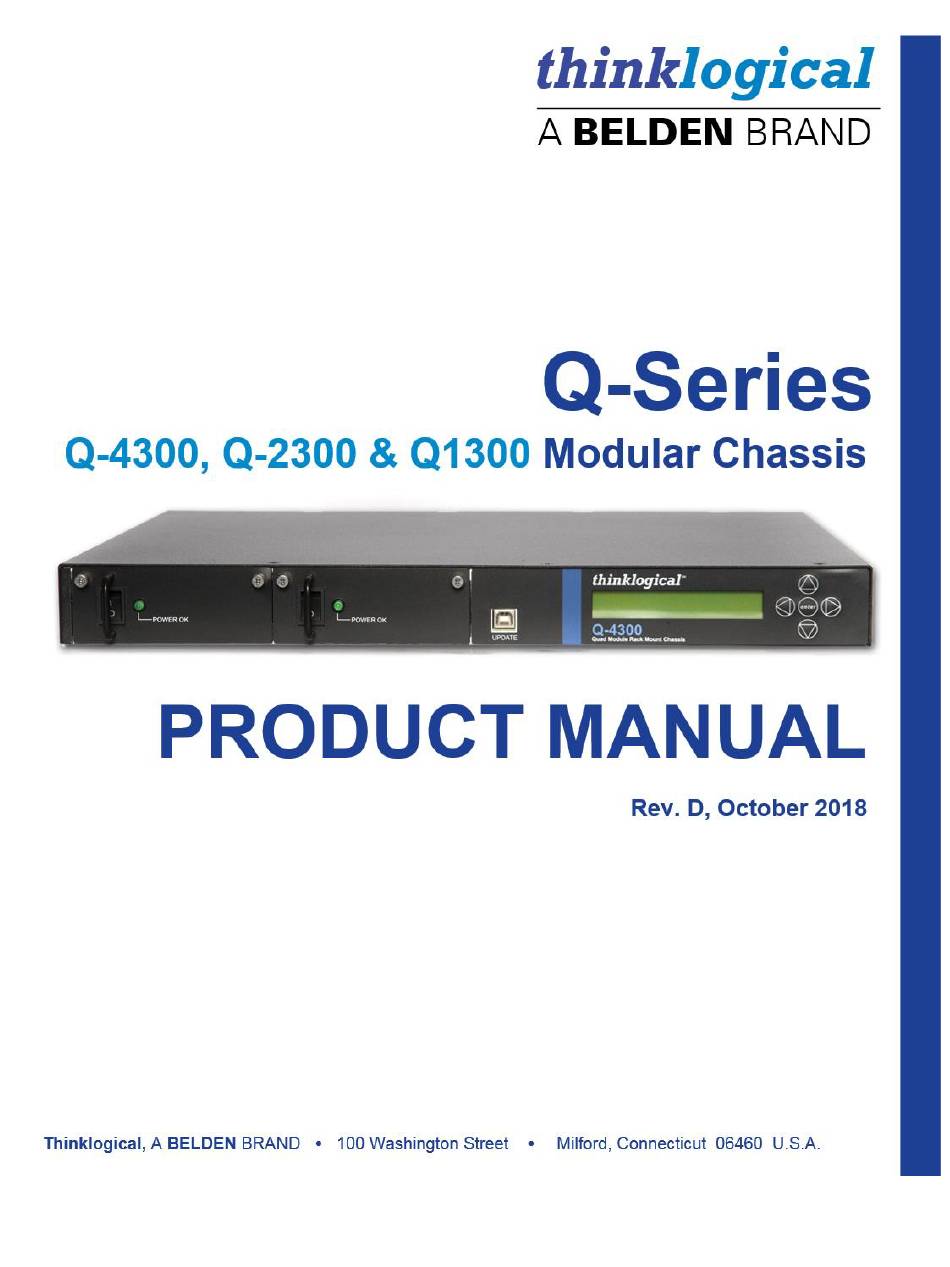

- Page 2 100 Washington Street Milford, Connecticut 06460 U.S.A. Telephone: 1-203-647-8700 All trademarks and service marks are property of their respective owners. ® Subject: Q-4300, Q-2300, Q-1300 Chassis Product Manual (Q-Series Fiber Extension) Revision: D, October 2018 Q-Series Chassis, Rev. D October 2018...
-
Page 3: Table Of Contents
1.1. Product Overview ....................... 4 1.2. Laser Information ....................... 5 1.3. General System Features ..................5 1.4. Mixing Q-Series and TLX Modules in a single Chassis ........... 8 Air-Flow through TLX Modles ..................8 Q-Series ChassisTechnical Specifications..............9 2. USING THE Q-4300 CHASSIS AND MODULES ..............10 2.1. -
Page 4: Preface
Governments, entertainment, scientific and industrial customers worldwide rely on Thinklogical’s products and solutions for secure, high performance, continuous operation and ease of integration. Thinklogical products are designed and manufactured in the USA and are certified to the ISO 9001:2015 standard. -
Page 5: Notes And Warning Symbols
BEFORE STARTING ANY PROCEDURE, IT IS RECOMMENDED THAT YOU READ THE INSTRUCTIONS THOROUGHLY! Class 1 Laser Information Q-Series Matrix Switches and Extenders, like all Thinklogical products, are designed and identified as ® Class 1 LASER products. This means the maximum permissible exposure (MPE) cannot be exceeded when viewing the laser with the naked eye or with the aid of typical magnifying optics (e.g. -
Page 6: Introduction
VQM Transmitter (TX) Modules, designed to fit all Q-Series Chassis, feature a video input and, in many cases, a local video output which can be used for DDC modification and for displaying video at the source. - Page 7 Fully compatible with all of Thinklogical’s VXRouter line of products. • Simple plug and play The Q-1300 Chassis includes the following features: Desktop unit can accommodate any one Q-Series transmitter or receiver module. Features include: • Hot swappable module •...
-
Page 8: Mixing Q-Series And Tlx Modules In A Single Chassis
1.4. Mixing Q-Series Modules and TLX Modules in a single Chassis Besides Q-Series products, Thinklogical also carries the TLX line of 10G extension products in a modular form. Non-Q-Series modules, such as TLX, are compatible with the Q-4300, Q-2300 and Q- 1300 chassis as well as their own CHS-4, CHS-2 and CHS-1 chassis. -
Page 9: Q-Series Chassistechnical Specifications
® Q-Series Chassis Technical Specifications Q-4300: Rack Size: EIA 19" 1.72” (4.37 cm) 1U Height: Depth: 14.62" (37.13 cm) Width: 17.49" (44.42 cm) (Tolerance: ± .0394" (.100cm) Q-2300: 1.72” (4.37 cm) 1U Height: Dimensions Depth: 10.66" (27.08 cm) Width: 10.74" (27.28 cm) (Tolerance: ±... -
Page 10: Using The Q-4300 Chassis And Modules
2 Using the Q-Series Chassis and Modules 2.1 Types of Connections All physical connections to our Q-Series products use industry-standard connectors. Non-supplied cables that may be needed are commercially available. All interface connections are found on the modules, located in the rear of the Q-4300 and Q-2300 chassis and on the front of the Q-1300 Chassis. -
Page 11: Mounting The Q-1300 Chassis
The removable mounting brackets can be installed for fixed desktop mounting or under-desk mounting simply by removing two screws per bracket. Supplied Q-1300 Mounting Brackets Q-Series Chassis, Rev. D October 2018... -
Page 12: Cooling
Power ON/OFF Update Port LCD Navigation Q-4300 Chassis Front Panel *See Mixing Q-Series Modules and TLX Modules in a single Chassis on page 8. Q-Series Chassis, Rev. D October 2018... -
Page 13: Navigating The Menus
Desc= Card1 Type Type= Card1 Rev Rev= Card1 Sw Rev Rev= Card1 Serial Number S/N= Card1 Temp in C Card1 SFP Left Card1 SFP Right Card1 SFP LOS Status= Card1 SFP Des OK Status= Q-Series Chassis, Rev. D October 2018... -
Page 14: Firmware Upgrades
Card Pres. C4 C3 C2 C1 Alarm Stat. FsC4C3C2C1Mn Alrm Act= Pwr Supp Pres. P1 P2 2.5.2. Firmware Upgrades FPGA and Firmware Upgrade Applications are available through Thinklogical’s Technical ® and we’ll be happy to provide you with Assistance Department. Please call us at 1-203-647-8700 all the assistance you’ll need to keep your system up and running at its optimum performance... -
Page 15: Regulatory & Safety Compliance
Regulatory Compliance Thinklogical’s Q-Series products are designed and made in the U.S.A. Q-Series products have been tested by a certified testing laboratory and found to be compliant with the following standards (both... -
Page 16: Supplementary Information
3.3.1. Product Serial Number Thinklogical products have a unique serial number, which includes a date-code, printed on an adhesive label that is affixed to the unit. The format for the date-code is 2 digits for the month, dash, 2 digits for the year, plus at least four digits for a unique unit number. -
Page 17: Connection To The Product
Adobe Acrobat reader needed to view PDF files, visit www.adobe.com for a download. Email Thinklogical is staffed Monday through Friday from 8:30am to 5:00pm, Eastern Time Zone. We will always do our best to respond to your email inquiries promptly. Please use one of the following email addresses: –... -
Page 18: Fax
If you wish to return your device, contact the Thinklogical authorized dealer where you purchased the device, or if you purchased directly, call Thinklogical at 1-800-291-3211 (USA). Return Authorization In the event you must return a product to Thinklogical directly, please contact our Customer Support at 1-800-291-3211 or 1-203-647-8700. ®... -
Page 19: Our Address
® Our Addresses If you have any product issues or questions or need technical assistance with your Thinklogical system, please call us at 1-800-291-3211 (USA only) or 1-203-647-8700 and let us help. If you need to write us or return a product, please use the following address:... -
Page 20: Appendix A: 19 Inch Chassis Under-Desk Mounting
® Appendix A: 19 Inch Chassis Under-Desk Mounting Q-Series Chassis, Rev. D October 2018...
