montpellier MWBI17-300 Installation And Operating Instructions Manual

montpellier MWBI17-300 Installation And Operating Instructions Manual

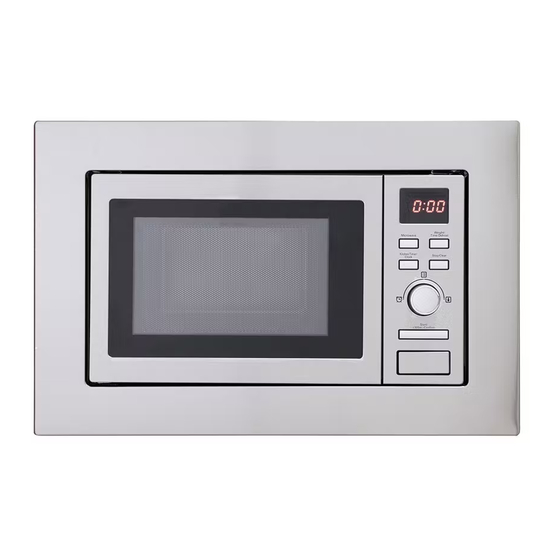

Integrated 17ltr solo microwave stainless steel - 300mm deep

Advertisement

Quick Links

Integrated 17ltr Solo Microwave
MWBI17-300 - Stainless Steel -
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
300mm Deep

Advertisement

loading
Need help?

Need help?

Do you have a question about the MWBI17-300 and is the answer not in the manual?

Questions and answers

Steve Morgan
May 15, 2025

Hi. The measurements of the MWBI17-300 built in microwave, do they measure the chassis of the oven or the facia? I have limited space on my boat so need accurate dimensions. The microwave would not be mounted above an oven. Thanks.

Summary of Contents for montpellier MWBI17-300

  • Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Integrated 17ltr Solo Microwave MWBI17-300 - Stainless Steel - 300mm Deep Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
  • Page 2 Welcome Thank you for choosing this Montpellier Integrated Microwave. Our Microwaves have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your Integrated Microwave to ensure you get the most from your purchase.
  • Page 3: Description Of The Appliance

    Description Of The Appliance 1. Door & Viewing Window 2. LED Display Panel 3. Control Panel 4. Push Button Door Control (Picture indicative of model supplied)
  • Page 4 CONTENTS: Section 1. Installation Section 2. Safety Advice Section 3. Operating the Appliance Section 4. Maintenance...
  • Page 5 Section 1. Installation Remove all packaging, protective film and securing tape from the appliance. Wash the interior of the appliance with warm soapy water. Position the appliance in a dry atmosphere. Keep the microwave oven away from the TV, Radio or antenna as picture disturbance or noise may occur.
  • Page 6 To install this appliance, please proceed as follows: The plug fitted to this appliance must be connected to an adjacent 13amp plug socket. If the socket is located behind the appliance and no longer accessible to the consumer, you must ensure that the consumer can turn off the appliance via an accessible switched spur socket.
  • Page 8 Section 2. Safety Advice Please read this booklet thoroughly before installing and switching on the appliance. The manufacturer accepts no responsibility for incorrect installation and usage. This appliance is guaranteed for Domestic Use Only. The appliance shall not be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction on how...
  • Page 9 Liquids and foods should be stirred and the temperature checked prior to consumption. If you cover a container with cling film, remove it very carefully after the cooking process has finished – steam will escape and may burn your hands. Always let the turntable cool down before washing it.
  • Page 10 Section 3. Operating the Appliance 3.1. Setting The Clock Press the Kitchen Timer/Clock button twice, the hours will flash in the LED panel Turn the Rotary knob to select the correct hour Press the Kitchen Timer/Clock button, the minutes will flash in the LED panel Turn the Rotary knob to select the correct minutes Press the Kitchen Timer/Clock button to confirm the new time...
  • Page 11 3.3. Kitchen Timer Press the Kitchen Timer button, the LED will display 0:00 Turn the Rotary knob to select the required time Press the Start button to confirm and start When the set time has elapsed a buzzer will sound for 5 seconds N.B.
  • Page 12 3.7. Defrost by Time Press the Weight/Defrost button twice and the LED will display ‘dEF2’ Turn the Rotary knob to select the defrost time Press the Start button to start defrosting Press Stop/Clear at any time to end or cancel the defrosting It is your responsibility to ensure that food is defrosted correctly! N.B.
  • Page 13 3.9. Child Lock Function To lock, press and hold Stop/Clear for 3 seconds or until you hear a long audible ‘beep’. A key sign will be displayed in the LED panel. To unlock, simply repeat the above procedure.
  • Page 14 3.10. Suitable Materials/Utensils 3.11. Unsuitable Materials/Utensils...
  • Page 15 3.12. Cooking Tips a) Place thicker areas of food towards the outer area of the turntable and thinner food towards the centre b) Always follow the cooking instructions on the food packaging c) Turn or stir food during the cooking to ensure even cooking d) Allow the cooked food to ‘stand’...
  • Page 16 Section 4. Maintenance Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply ensure that the appliance is completely cool. 4.1. Internal Cleaning Clean the interior and accessories with warm soapy water. Rinse and dry thoroughly.
  • Page 17 Your 2 year Manufacturer’s guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
  • Page 18 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
