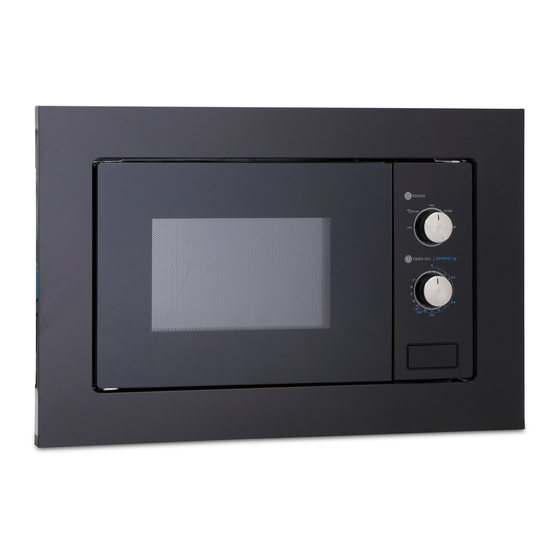

Integrated 20ltr Solo Microwave
MWBI20BK - Black
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Advertisement
Table of Contents
Related Manuals for montpellier MWBI20BK
Summary of Contents for montpellier MWBI20BK
- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Integrated 20ltr Solo Microwave MWBI20BK - Black Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier Integrated Microwave. Our Microwaves have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your Integrated Microwave to ensure you get the most from your purchase.
-
Page 3: Precautions To Avoid Possible Exposure To Excessive Microwave Energy
Sp ec i f i c at i o n s Model: MWBI20BK Rated Voltage: 230V~ 50Hz Rated Input Power(Microwave): 1250 W... -
Page 4: Important Safety Instructions Warning
IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: 1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode. - Page 5 9. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames. 10. Do not overcook food. 11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
- Page 6 20. Do not let cord hang over edge of table or counter. 21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
-
Page 7: Read Carefully And Keep For Future Reference
31.WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. 32.The microwave oven must be operated with the decorative door open.(for ovens with a decorative door.) 33.Surface of a storage cabinet can get hot. -
Page 8: To Reduce The Risk Of Injury To Persons
To Reduce the Risk of Injury to Persons Grounding Installation DANGER Consult a qualified electrician or serviceman if Electric Shock Hazard the grounding instructions Touching some of the are not completely internal components can understood or if doubt exists cause serious personal as to whether the appliance injury or death. -
Page 9: Utensils Caution
CLEANING Be sure to unplug the appliance from thepower supply. 1. Clean the cavity of the oven after using with a slightly damp cloth. 2. Clean the accessories in the usual way in soapy water. 3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty. -
Page 10: Materials You Can Use In Microwave Oven
Materials you can use in microwave oven Utensils Remarks Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls. -
Page 11: Turntable Installation
SETTING UP YOUR OVEN Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray Turntable ring assembly Instruction Manual A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window... -
Page 12: Installation And Connection
Installation and connection 1.This appliance is only intended for domestic use. 2.This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard. 3.Please observe the special installation instructions. 4.The appliance can be installed in a 60cm wide wall- mounted cupboard. -
Page 13: Installation Instructions
Installation Instructions Please Read the Manual Carefully Before Installation A gap must be maintained between the wall and the base of the unit above. Specific gap size could be referenced by the diagrams. Screw A Screw B Bracket Trim-kit plastic cover... - Page 14 A. Built-in furniture 380+2...
- Page 15 380+2 NOTE: Th e bracket and bottom cabinet template are needed when installing in both installations.
- Page 16 B: Preparing the Cabinet 1. Read the instruction on the BOTTOM CANINET TEMPLATE , put the template on the bottom plane of cabinet. Holes ""a" PN:261800316967 2. Make the marks on the bottom plane of cabinet according to marks"a" of the template Screw A Bracket...
- Page 17 C: Installing the Oven 4. Install the oven to the cabinet - Make sure the back of the oven is locked by bracket. - Do not trap or kink the power cord. bracket 5. Open the door, fix the oven to the cabinet with Screw B, at the installation hole. Then fix the Trim-kit plastic cover to the installation hole.
-
Page 18: Operation
OPERATION Control Panel and Features Operation Instructions Power 1.To set cooking power by turning the power knob to desired level. 2.To set the time of cooking by turning the timer knob to desired time per your food cooking guide. 3.The microwave oven will automatically start cooking after power level and time are set. - Page 19 Trouble shooting It is forbidden to run the unit without any food inside. It is very dangerous. According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste.
- Page 20 Your 2 year Manufacturer’s guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 21 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
