Dear customer
Thank you for purchasing this product. For optimum performance and safety, please read these
instructions carefully before connecting, operating or adjusting this product. Please keep this
manual for future reference.
The products are designed to make your A/V device use more convenient, comfortable,
productive and cost-efficient.
The DVI splitter can allow multiple video display units connected to one DVI Source and display
the same HD picture at the same time. So that you can share one signal source, greatly reduce the
cost of system.
USER MANUAL
LM-DVI-116B
LM-DVI-116B
LM-DVI-116B

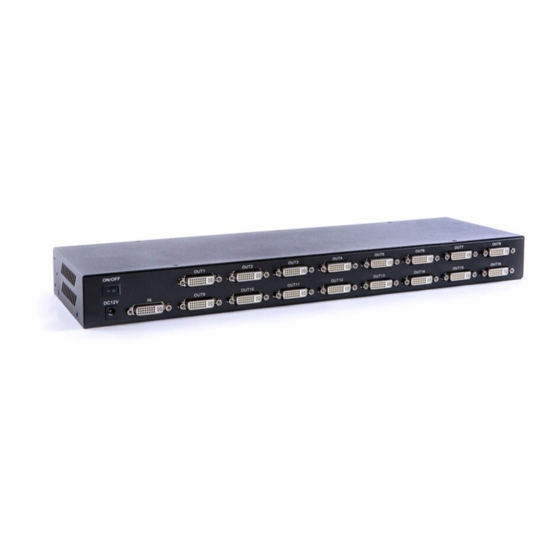

DVI 1x16 SPLITTER
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LINK-MI LM-DVI-116B
Summary of Contents for LINK-MI LM-DVI-116B
- Page 1 USER MANUAL LM-DVI-116B LM-DVI-116B LM-DVI-116B DVI 1x16 SPLITTER Dear customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
-
Page 2: Package Contents
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments. INTRODUCTION FEATURES： ： ： 1. 1x DVI input and 16xDVI output 2. Support resolution :up to 4096x2160@30Hz 3. -
Page 3: Operationg And Connection
FIG.1.0 Front Panel View Power: Power LED Signal: Signal LED 1 - 16: OUT LED OPERATIONG AND CONNECTION: : : 1. Connect one single link DVI-D cable from a DVI signal source into the input port of splitter. 2. Connect single link DVI-D cables from TV/Monitor into the DVI output ports of splitter. 3. -
Page 4: Specifications
SPECIFICATIONS: DVI interface type DVI-D 29-pin, female Single link input/output resolution up to 4096x2160@30Hz Max signal bandwidth 340MHz Max baud rate 3.4Gbps Serial Link Input/Output TMDS signal 0.5~1.5Volts p-p(TTL) Input/Output DDC signal 5Volts p-p (TTL) Max working current 1A/12V Power adapter AC 100V～240V 50HZ/60Hz, DC12V/2A Operating Temperature range -5 to +45... - Page 5 FAQ: Before power on, pls check the connection line carefully. And make sure that all interfaces are normally connected. The common trouble shooting way shows below: Problem Solutions Description 1. Check if the power adaptor head is truly and correctly Non-Power- inserted the power socket.
