Summary of Contents for JVA ZM1

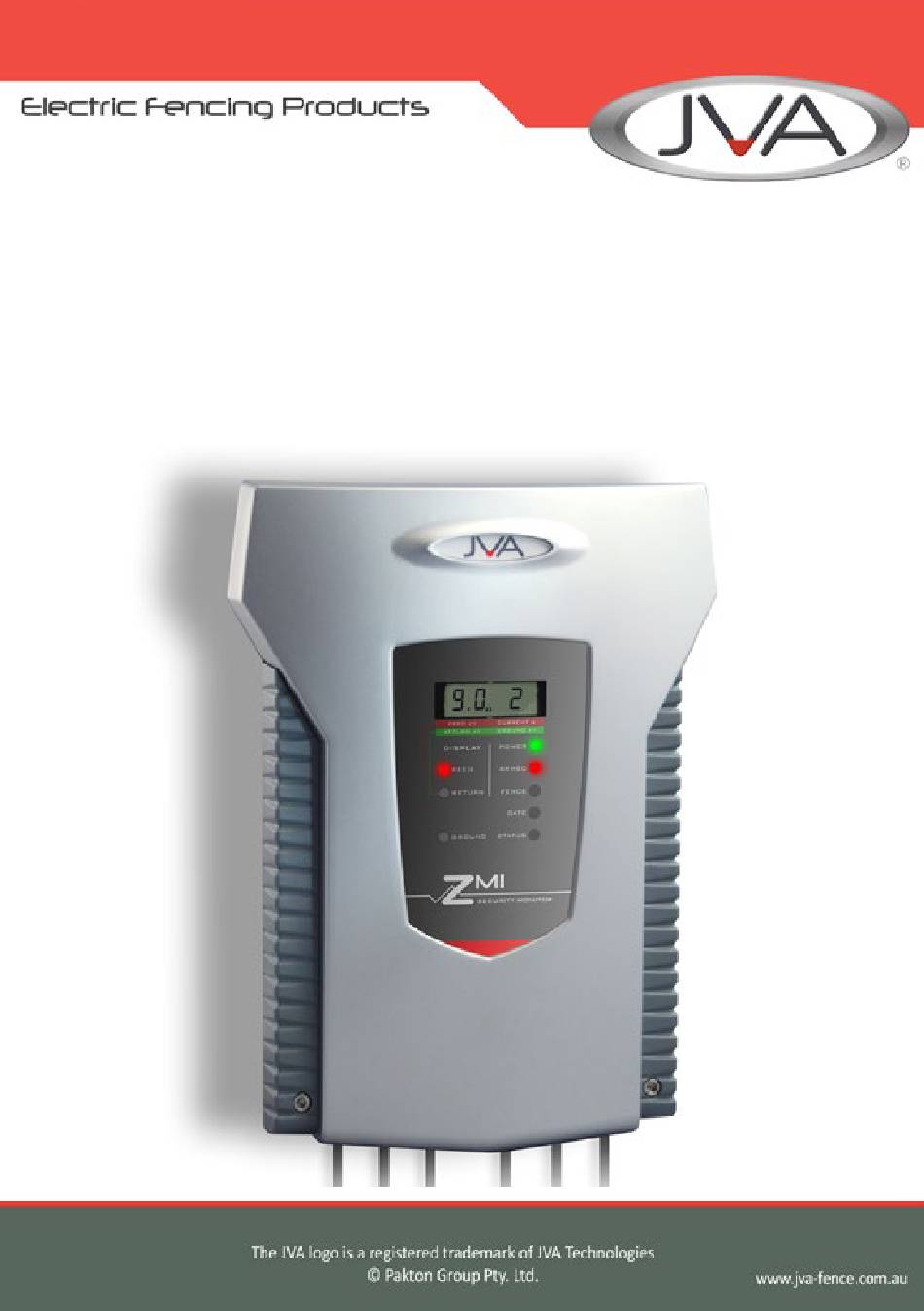

- Page 1 ZM1 User Manual J VA T E CH N O LO G I E S www.jva-fence.com...
-
Page 2: Table Of Contents
INSTALLATION . . . . . . . . . . . . . . . . . . 17 EHT Terminals on the ZM1 ..17 Fence Wiring Diagrams . - Page 3 PROGRAMMING OPTIONS . . . . . . . . . 27 Programming Basics ... . . 27 6.1.1 Entering Programming Mode ..27 6.1.2 Exiting Programming Mode .
-
Page 4: Introduction
The ZM1 is designed to be coupled with any standard electric fence ener- gizer (see 2.1Limitations below) to power and monitor an electric fence. As it can control very large energizers it is anticipated that the ZM1 will find application on large fences for game reserves and border security. The ZM1 uses Patent, DFD™... -
Page 5: Options
1. While the Keypad is not essential for normal operation, it is always re- quired for programming options during installation. 2. Up to 3 Keypads may be used with a ZM1, each Keypad must have a unique ID setting. For more information on these options please see www.jva-fence.com.au... -
Page 6: Features
• Siren and strobe switched 12V DC outputs • 3 on-board relays with many programmable functions. LIMITATIONS • An energizer used with the ZM1 must comply with IEC60335.2.76 (or similar)safety standard. • The ZM1 supports conventional wiring only (not Bi-Polar), although 2 units could be used to monitor a Bi-Polar fence. - Page 7 • A ZM1 cannot be used in a group of Z-Series Energisers or ZM1s (Code Versions 1.00 - 1.58). Version 1.59 removed this limitation. JVA ZM1 Manual Page 7...
-
Page 8: Operation
CONTROL INPUTS The ZM1 may have a single Key switch mounted on the right hand side of the cabinet which may be used to arm and disarm the security electric fence to which it is connected. This switch is useful for the simplest imple- mentations where no keypad or PC control program is used. -
Page 9: Keypad Control
The LCD display will change to display the Feed and Ground volt- ages. If there is a fence fault the ZM1 will go into alarm, the internal beeper will sound (if it has not been inhibited) and any siren and strobe connected to the ZM1 will be turned on. -
Page 10: Changing The User Pin
• Enter your new User PIN (must be 4 digits) and then #. • Press *# to exit User Programming mode. • Make sure your new User PIN works by using it to arm the ZM1. 3.4.4 SUMMARY OF LCD KEYPAD FUNCTIONS... - Page 11 [*] [6] [4] [#] Clear Alarm memory [*] [1] [#] The ZM1 is equipped with four jumpers. Two of them (J3 and J4) are special purpose jumpers (links). The purpose of each is listed in the table below. JVA ZM1 Manual...
-
Page 12: Jumper Configuration
JUMPER CONFIGURATION The ZM1 is equipped with four jumpers. Two of them (J3 and J4) are special purpose jumpers (links). The purpose of each is listed in the table below. JUMPER FUNCTION PURPOSE only Install J3 to inhibit Mains fail errors if the inten-... - Page 13 JVA ZM1 Manual Page 13...
-
Page 14: Lcd Display
STATUS LED LIGHTS The status LED’s on the front of the ZM1 allow the user to quickly ascertain the current status of the unit and if any action needs to be taken. Below is a brief description of each LED (from left to right, top to bottom) and the information it conveys. - Page 15 Number of Flashes 16Vac mains fail Restore mains power Low battery, bad battery Charge or replace battery PCB service fault Return repair/service centre. Note: A Z slave will show this error if disconnected from the Master. JVA ZM1 Manual Page 15...
-
Page 16: Specifications
SPECIFICATIONS The specifications table below outlines the power consumption of the ZM1 and the acceptable voltage and current ranges for different inputs and out- puts. Internal battery charger float voltage 14.3Vdc Internal battery charger charging current 580mA Absolute maximum power consumption of ZM1 85mA at 12.5Vdc... -
Page 17: Installation
INSTALLATION EHT TERMINALS ON THE ZM1 Description of high voltage terminals (left to right) EHT In Connect the high voltage output of the energizer to this ter- minal to allow fence current to be measured. Feed Connect the start of the fence to this terminal. Voltage at Feed will be the same voltage as EHT In. -
Page 18: Fence Wiring Diagrams
FENCE WIRING DIAGRAMS There are a number of ways the fence wires can be connected to a ZM1. The following diagrams will outline different ways in which the ground cir- cuit can be configured and what the benefits of each are. -
Page 19: Earth Loop Monitoring
The set up pictured below will detect if the ground wire has been cut. Con- nect the Ground Reference input to the energizer Earth, and the Ground input to the other end of the earth fence loop. High Powered Energiser Conventional Fence Energiser Earth JVA ZM1 Manual Page 19... -
Page 20: Earth Stake Monitoring
5.2.3 EARTH STAKE MONITORING This setup will check how well the energizer is earthed. Connect the Ground, Reference input of the ZM1 to the mains earth, or the cabinet earth. This Ground Reference must be more than 10m away from the Energizer Earth. -
Page 21: No Earth Monitoring
This setup will monitor only the fence feed and return voltages and fence current. Connect the Ground Reference and Ground inputs to each other with a short piece of wire. High Powered Energiser Conventional Fence Energiser Earth JVA ZM1 Manual Page 21... -
Page 22: Low Voltage Terminals On The Zm1
The receiver may be powered from the keypad+12V terminal. GATE 2 Way ZM1 Gate Input, when the unit is armed and the gate is opened, it will trigger the gate alarm. KEYPAD 3 Way Supplies power and data line for an external keypad. - Page 23 LABEL TYPE DESCRIPTION Energizer 3 Way Powered output which is enabled when the ZM1 is Output armed. Power is drawn from the ZM1 battery and 16Vac power supply, or from the EXT 12V input. EXT 12V 2 Way Input used for DC energizers which exceed the supply...
-
Page 24: Low Voltage Wiring Diagrams
LOW VOLTAGE WIRING DIAGRAMS 5.4.1 16VAC 2AMP POWER SUPPLY The ZM1 can be used to power an external high powered energizer. A 16Vac 2Amp power supply is able to power a B8 or B12 (or equivalent) en- ergizer as well as the ZM1 and keep the backup battery charged. - Page 25 + BATT - 12v SLA Battery 16v AC 2A PSU +12V Gnd +12V Gnd 16Vac ENERGISER EXT 12V Output Input JVA ZM1 Manual Page 25...
-
Page 26: Controlling A 240Vac Energizer
The ZM1 can control an external relay box designed to switch 110Vac or 240Vac powered energizers. The relay box needs to accept switching volt- ages of up to 13.8 volts. WARNING: DO NOT use relay 3, 4 or 5 on the ZM1 to switch mains voltage. + BATT - 12v SLA... - Page 27 Energizer into the EXT Input and removing the J6 connection. To ensure the J6 shunt is not lost, fit it onto a single pin of J6. The ZM1 will now be powered by the 16Vac input and backup battery. JVA ZM1 Manual...
-
Page 28: External Battery And Charger
Larger 12Vdc energizers will need to utilise an external 12 volt power sup- ply. To power the ZM1 from the external battery and charger, ensure Jumper J6 is placed on the 12V regulated pins. Do not connect a 16Vac supply to the ZM1. -
Page 29: Programming Options
Default Installer PIN is 012345. PROGRAMMING BASICS Some of the programming options on the ZM1 are different to those on the Z series of security energizers, but the basic functions remain the same. 6.1.1 ENTERING PROGRAMMING MODE To enter programming mode, enter the 6 digit installer PIN followed by *0# keys. - Page 30 For example, to change the Missed Pulse Count (Option 06) to 9 press 0609#, the keypad will beep twice to indicate that the command was successful. The ZM1 LCD will immediately show the updated value. Page 30 © JVA Technologies Pty. Ltd. www.jva-fence.com...
-
Page 31: Programming Options Table
The number of times the siren will sound for the time set in On Time above. After this many cycles the siren will automatically mute. Input type Allows the ZM1 inputs to be changed from normally open to normally closed. Gate Input Gate switch only for now. - Page 32 Used to assign an alarm function to relay 4 Relay 5 Used to assign an alarm function to relay 5 Group ID If used as part of a SCADA system, this sets the device ID Page 32 © JVA Technologies Pty. Ltd. www.jva-fence.com...
-
Page 33: Programming Options In Detail
For example to set a threshold of 5A enter: 0 2 0 5 # The default level is 10A. Value (x) Alarm Level Minimum 0 Amps 10 Amps Maximum 75 Amps Current Alarm Level (02x#) 6.3.3 GROUND VOLTAGE ALARM LEVEL (03X#) JVA ZM1 Manual Page 33... -
Page 34: Missed Pulse Count (06X#)
Note: The lower this option is set, the more likely you are to get false alarms. Value (x) Missed Pulses Missed Pulse Count (06x#) Page 34 © JVA Technologies Pty. Ltd. www.jva-fence.com... -
Page 35: Battery Alarm Voltage (07X#)
General alarm, see below. Note: The ZM1 will not turn the energizer off when the battery voltage is low. But if the supply voltage falls too low the relay powering the external energizer will eventually drop out. -
Page 36: Siren Off Time (09X#)
If an alarm is still present after this off time the siren will sound again. Value (x) Time 10 Seconds 1 Minute 2 Minutes 5 Minutes 10 Minutes 20 Minutes 30 Minutes 40 Minutes 50 Minutes 60 Minutes Siren On Time (09x#) Page 36 © JVA Technologies Pty. Ltd. www.jva-fence.com... -
Page 37: Siren Cycles (10X#)
The control inputs can be inverted unless an input is used for a Gate switch, in which case it is always NC. Value (x) Input type NO Normally open NC Normally closed Input Type (11x#) JVA ZM1 Manual Page 37... -
Page 38: Gate Input Function (12X#)
Gate Beeps plus Siren will give 2 beeps when the gate starts opening and 4 beeps when it closes, plus continuous beeps for an alarm. Beeps are on the keypad only, not on the internal beeper. Page 38 © JVA Technologies Pty. Ltd. www.jva-fence.com... -
Page 39: Fence Mode (15X#)
+1: Enable DFD™ (Distant Fault Detection). Firmware V1.40 and later, PCB V1.10 and later. +2: Set if using a ZM1 in a group where the energiser is not a Z series ener- giser. This tells the ZM1 that the energiser may not be synchronised . -
Page 40: Anti-Bridging Threshold (17X#)
5A. Measuring fence current to determine if a fence is bridged will work irre- spective of the energizer type powering the fence. Value (x) Threshold Minimum Disabled Maximum Anti-Bridging Threshold (17x#) Page 40 © JVA Technologies Pty. Ltd. www.jva-fence.com... -
Page 41: Auto Re-Arm Time (20X#)
6.3.17 RELAY FUNCTIONS All relays can be set to any of the available functions (user assignable). Relay 1 is (21x#) Relay 2 is (22x#), etc Defaults for the ZM1: • Relay 1 – Siren (2108#) JVA ZM1 Manual Page 41... - Page 42 Armed 1 Ground Voltage Ground Voltage or Off Not used Bi-Polar General Siren Strobe AC Fail Low / Bad Battery Tamper Not used Gate Alarm Siren caused by Gate Not used Relay Functions Page 42 © JVA Technologies Pty. Ltd. www.jva-fence.com...
-
Page 43: Group Mode (26X#)
Connect the keypad to each Energiser/ZM1 in turn, programming each Op- tion as required before linking the Keypad bus into a group. As of code version 1.59+ the ZM1 can now be a group master in limited circumstances. Groups can now be made up of: ZM1’s (driven by MB8 or similar energisers) or Z series energisers and ZM1’s... - Page 44 If one or more ZM1’s are connected via a TCP/IP board to a PC then the TCP/IP board will be the master. If any ZM1 in a group is coupled to a non Z series energisers all slave ZM1’s must have Option 16 set to 2.
-
Page 45: Warranty
Whilst every effort has been made to check that the information contained in this manual is accurate, JVA Technologies Pty Ltd will not be liable to loss or damage resulting from construction, operation or failure of any instal- lation or system. - Page 46 DEALER Version 1.13 www.jva-fence.com...
