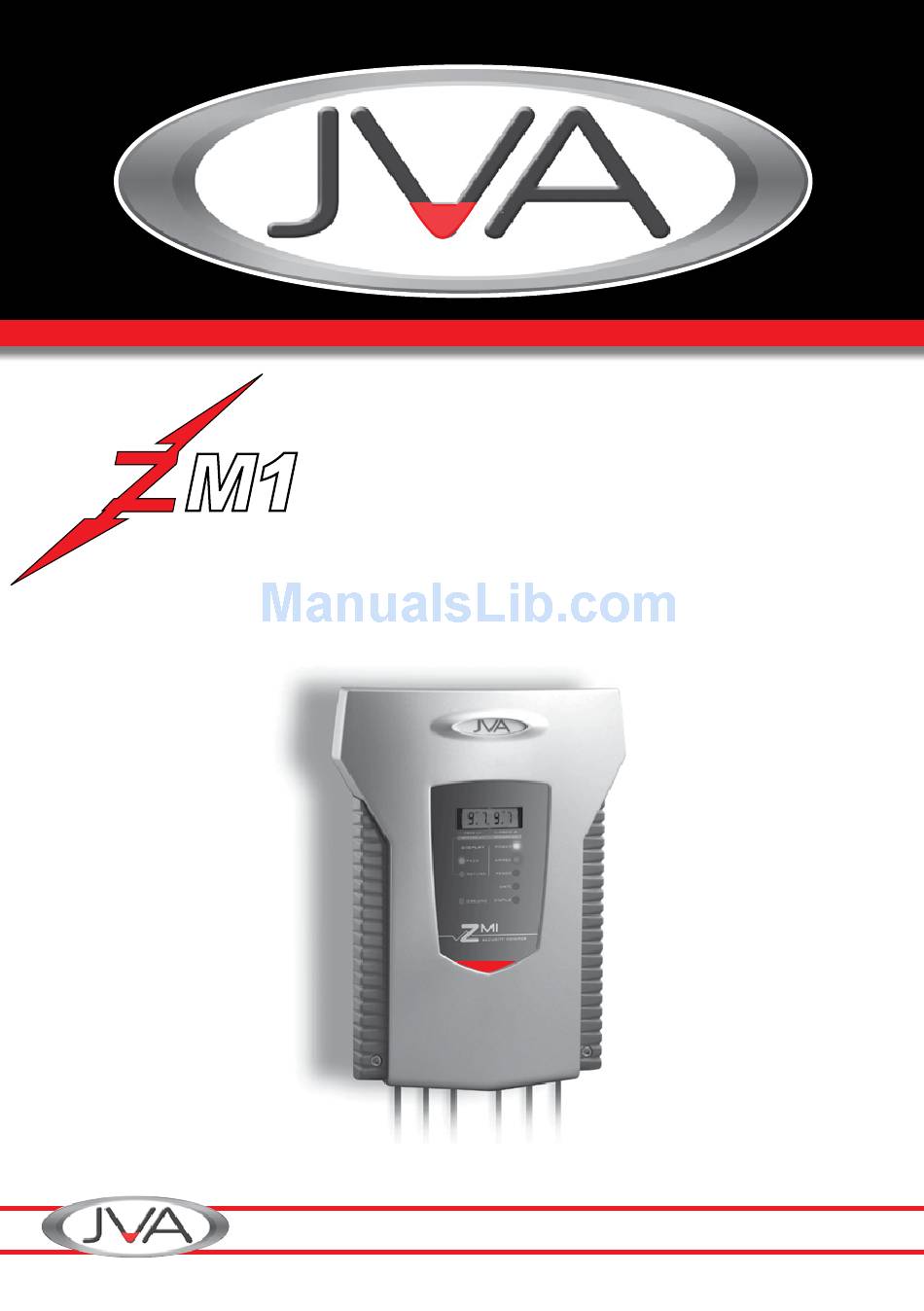

ELECTRIC FENCE
M1
MONITOR
Installation and User Manual
2nd Edition, 2013
JVA ELECTRIC FENCE SYSTEMS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZM1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for JVA ZM1

  • Page 1 ELECTRIC FENCE MONITOR Installation and User Manual 2nd Edition, 2013 JVA ELECTRIC FENCE SYSTEMS...
  • Page 2 JVA ELECTRIC FENCE SYSTEMS Thank you for choosing our product. The JVA brand is a range of electric fencing products carefully selected from leading manufacturers around the world to meet the needs of perimeter security. THE JVA Z RANGE ENERGIZER CONCEPT...
  • Page 3: Table Of Contents

    Jumper Configuration ............... LCD Display ..................Status LED Lights ................Front Label ..................SPECIFICATIONS ..................INSTALLATION ..................8 EHT Terminals on the ZM1 ............Fence Wiring Diagrams ..............5.2.1 Configuration with NO Return Wire from Fence ....5.2.2 Earth Loop Monitoring ............
  • Page 4 JVA ELECTRIC FENCE SYSTEMS PROGRAMMING OPTIONS ..............Programming Basics ............... 6.1.1 Entering Programming Mode ..........6.1.2 Exiting Programming Mode ..........6.1.3 Changing the INSTALLER PIN .......... 6.1.4 Changing an Option ............Programmable Options Table ............Programming Options in Detail ............
  • Page 5: Introduction

    The combination of the ZM1 and the energizer operate in the same way as a single JVA Z series energizer, with the exception that the pulse power level of the energizer cannot be modified.
  • Page 6 1. While the Keypad is not essential for normal operation, it is always required for programming options during installation. 2. Up to 3 Keypads may be used with a ZM1, each Keypad must have a unique ID setting. For more information on these options please see www.jva-fence.com.au There are high voltages inside the ZM1 and JVA energizers.
  • Page 7: Features

    Bi-Polar fence. • The maximum energizer power is 36 Joules (Stafix M36 or similar). • At this stage (Code Version 1.4 and earlier) a ZM1 cannot be used in a group either with other ZM1 units or with Z series energizers.
  • Page 8: Operation

    The LCD display will change to display the Feed and Ground voltages. If there is a fence fault the ZM1 will go into alarm, the internal beeper will sound (if it has not been inhibited) and any siren and strobe connected to the ZM1 will be turned on.
  • Page 9: Keypad Control

    JVA ELECTRIC FENCE SYSTEMS 3.4 Keypad Control The ZM1 uses the same keypads as the Z series energizers and is controlled using the same keypad codes outlined below. The keypad will also display the feed and return voltages of the fence, but not the ground voltage or fence current at this time.
  • Page 10 JVA ELECTRIC FENCE SYSTEMS Keys used for changing messages [2] Character up [3] not used Emergency not used [4] <- Cursor left [5] Next Message [6] -> Cursor right Fire not used [8] Character down Panic not used [0] Last Message...
  • Page 11: To Exit Keypad Programming

    JVA ELECTRIC FENCE SYSTEMS 3.4.4 To exit Keypad Programming When you have finished programming, press [*] [#] NoTe: The keypad will also exit the programming mode if you do not press any key within a five minute period. summary of LCD Keypad Functions...
  • Page 12: Jumper Configuration

    JVA ELECTRIC FENCE SYSTEMS 3.5 Jumper Configuration The ZM1 is equipped with four jumpers. Two of them (J3 and J4) are special purpose jumpers (links). The purpose of each is listed in the table below. Jumper Function Purpose DC only jumper...
  • Page 13: Lcd Display

     3.6 LCD Display CD display LCD display The LCD display on the ZM1 will switch between two different display modes. The   mode shown can be identified by the feed and return LED’s on the status panel. ...
  • Page 14: Status Led Lights

    JVA ELECTRIC FENCE SYSTEMS 3.7 Status LED Lights The status LED’s on the front of the ZM1 allow the user to quickly ascertain the current status of the unit and if any action needs to be taken. Below is a brief description of each LED (from left to right, top to bottom) and the information it conveys.
  • Page 15: Specifications

    JVA ELECTRIC FENCE SYSTEMS 4. SPECIFICATIONS The specifications table below outlines the power consumption of the ZM1 and the acceptable voltage and current ranges for different inputs and outputs. Internal battery charger float voltage 14.3Vdc Internal battery charger charging current...
  • Page 16: Installation

    JVA ELECTRIC FENCE SYSTEMS INSTALLATION  5. INSTALLATION   EHT terminals on the ZM: 5.1 EHT Terminals on the ZM1      Description of high voltage terminals (left to right)    EHT In Connect the high voltage output of the energizer to this terminal to ...
  • Page 17: Fence Wiring Diagrams

    JVA ELECTRIC FENCE SYSTEMS 5.2 Fence Wiring Diagrams There are a number of ways the fence wires can be connected to a ZM1. The following diagrams will outline different ways in which the ground circuit can be configured and what the benefits of each are.
  • Page 18: Earth Loop Monitoring

    JVA ELECTRIC FENCE SYSTEMS 5.2.2 earth Loop Monitoring The set up pictured below will detect if the ground wire has been cut. Connect the Ground Reference input to the energizer Earth, and the Ground input to the other end of the earth fence loop.
  • Page 19: Earth Spike Monitoring

    5.2.3 earth spike Monitoring This setup will check how well the energizer is earthed. Connect the Ground Reference input of the ZM1 to the mains earth, or the cabinet earth. This Ground Reference must be more than 10m away from the Energizer Earth.
  • Page 20: No Earth Monitoring

    JVA ELECTRIC FENCE SYSTEMS 5.2.4 No earth Monitoring This setup will monitor only the fence feed and return voltages and fence current. Connect the Ground Reference and Ground inputs to each other with a short piece of wire. Feed/ Current/...
  • Page 21: Low Voltage Terminals On The Zm1

    JVA ELECTRIC FENCE SYSTEMS 5.3 Low Voltage Terminals on the ZM1 voltage terminals on the ZM1   Type Description See page 20 for a table giving the Type and Description of each component labelled   Energiser control input (dry contact). Defaults to normally open.
  • Page 22 The receiver may be powered from the keypad +12V terminal. Gate 2 Way ZM1 Gate Input, when the unit is armed and the gate is opened, it will trigger the gate alarm. Keypad 3 Way Supplies power and data line for an external keypad. The +12 source on these terminals is protected with a 1A self resetting fuse.
  • Page 23: Low Voltage Wiring Diagrams

    JVA ELECTRIC FENCE SYSTEMS 5.4 Low Voltage Wiring Diagrams 5.4.1 16Vac 2Amp Power supply The ZM1 can be used to power an external high powered energizer. A 16Vac 2Amp power supply SLA 12Volt is able to power a B5, B8 or B12 (or equivalent)
  • Page 24: Controlling A 240Vac Energizer

    13.8 volts. Feed/ Current/ Return Ground kV WARNING: DO NOT use relay 3, 4 or 5 on the ZM1 to switch mains voltage. 16Vac HIGH POWER ENERGIZER 16Vac 2A HIGH VOLTAGE...
  • Page 25: Programming Options

    6.1 Programming Basics Some of the programming options on the ZM1 are different to those on the Z series of security energizers, but the basic functions remain the same. 6.1.1 entering Programming Mode To enter programming mode, enter the 6 digit INSTALLER PIN followed by *0# keys.
  • Page 26: Programmable Options Table

    The number of times the siren will sound for the time set in On Time above. After this many cycles the siren will automatically mute. Input type Allows the ZM1 inputs to be changed from normally open to normally closed. Gate Input Gate switch only for now.
  • Page 27: Programming Options In Detail

    JVA ELECTRIC FENCE SYSTEMS 6.3 Programming Options in Detail Note: The bold panel in each table indicates the default value. 6.3.1 Fence Alarm Voltage Level (01x#) This option sets the voltage below which the fence Value (x) Alarm Level alarm will occur. If the feed OR return voltage falls...
  • Page 28: Missed Pulse Count (06X#)

    10.5V General alarm, see below. 11.0V NoTe: The ZM1 will not turn the energizer off when 11.5V the battery voltage is low. But if the supply voltage 12.0V falls too low the relay powering the external energizer 12.5V...
  • Page 29: Siren Off Time (09X#)

    JVA ELECTRIC FENCE SYSTEMS 6.3.7 siren Off Time (09x#) Value Time The Siren Off Time option is identical to that of the 10 Seconds Z series of security energizers. 1 Minute 2 Minutes This option sets the amount of time the siren will be 5 Minutes off for after the on time above has expired.
  • Page 30: Gate Exit Delay (13X#)

    JVA ELECTRIC FENCE SYSTEMS 6.3.11 Gate exit Delay (13x#) The Gate Exit Delay option is identical to that of the Value Function Z series of security energizers. This option sets the 0 Seconds time between the gate switch opening and the siren (immediate) sounding.
  • Page 31: Binary Options (16X#)

    The current displayed will usually be less than read by a standard hand-held meter with this feature on. There is no theoretical limit to the length of fence that the ZM1 can monitor with this feature on. Without DFD™ the limit is approximately 8km.
  • Page 32: Auto Re-Arm Time (20X#)

    Fence 1 Fence 1 or off Relay 1 is (21x#) Armed 1 Relay 2 is (22x#), etc Ground Voltage Defaults for the ZM1: Ground Voltage or Off • Relay 1 – Siren Not used • Relay 2 – Strobe Bi-Polar •...
  • Page 33: Group Mode (26X#)

    Fence alarm 1 OR fence alarm 2 OR Gate Or Tamper, will time out after the siren time out time. This function is latched. Strobe As per siren but does not time out, will remain on until the ZM1 is Disarmed. This function is latched. AC Fail Alarm on AC fail.
  • Page 34: Warranty

    Whilst every effort has been made to check that the information contained in this manual is accurate, JVA Technologies Pty Ltd will not be liable to loss or damage resulting from construction, operation or failure of any installation or system.
  • Page 35: Customer Support

    JVA dealer. RSA Tel. No.: 0861 782 349. For service or repairs: If a service or repair is required, please package and label your energizer carefully and return it to your local JVA Service Centre. For warranty repairs: Include proof of purchase, e.g. invoice.
  • Page 36 JVA ELECTRIC FENCE SYSTEMS JVA products are designed by JVA Technologies, Queensland, Australia and distributed to: CARIBBEAN CENTRAL AMERICA AFRICA AUSTRALIA CENTRAL ASIA INDIA LATINO AMERICA EUROPE NEW ZEALAND PHILIPPINES PAkISTAN MEXICO RUSSIA SOUTH EAST ASIA SRI LANkA UNITED kINGDOM...
