Summary of Contents for JVA ZLM1

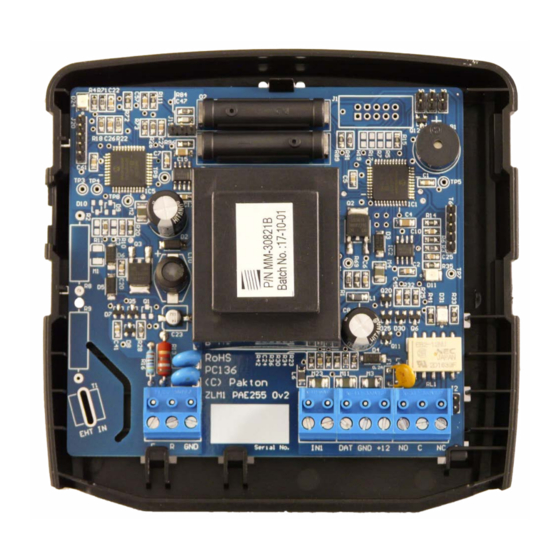

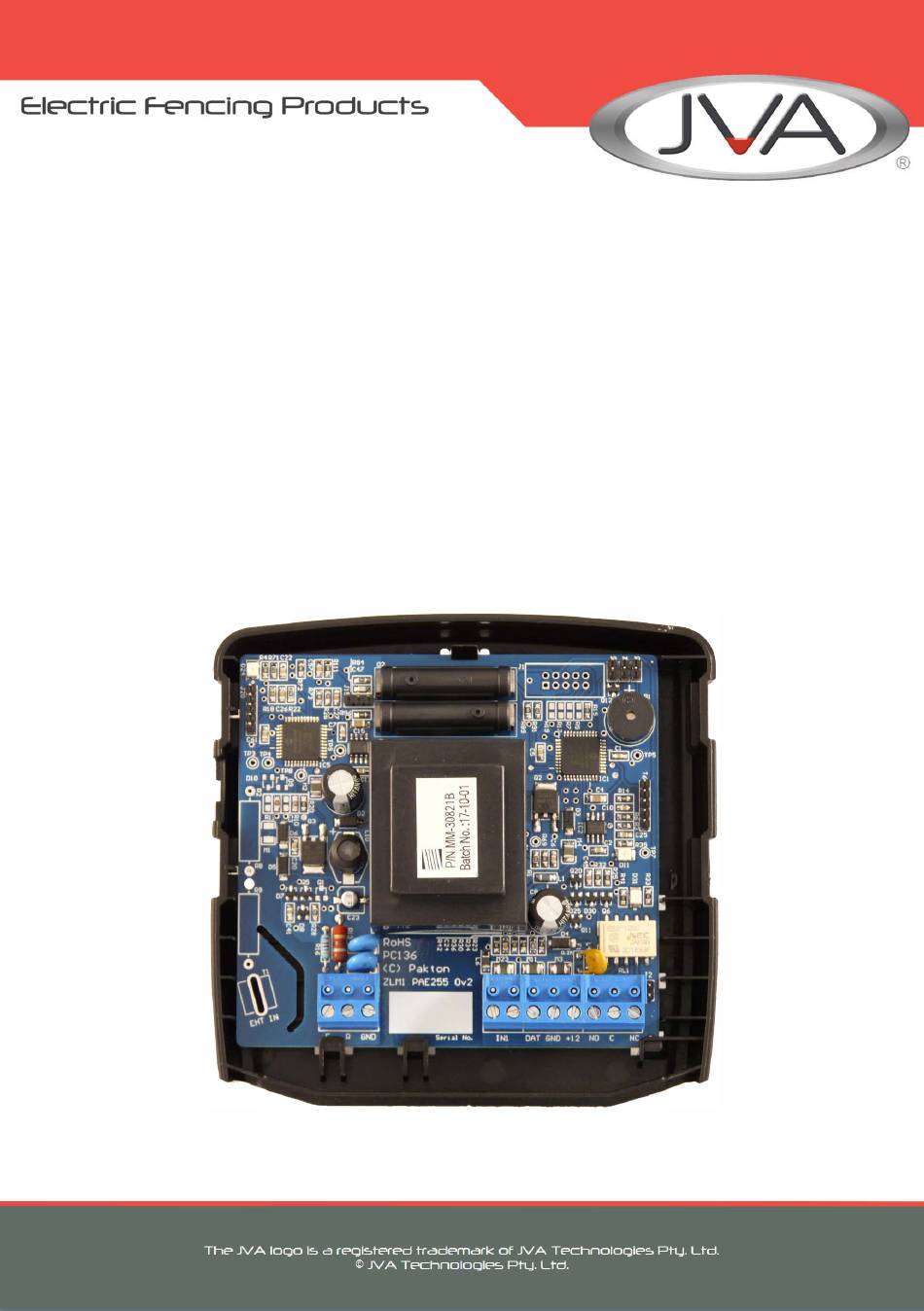

- Page 1 (ZlM1) onitor anUal J VA T E CH N O LO G I E S www.jva-fence.com...
-
Page 2: Table Of Contents
Lightning Protection ... . 21 Controlling your ZLM1 . . . . . . . . . . 22 Control Arbitration ... . . 22 PC Control . - Page 3 8.6.9 ZLM1 Relevant Keypad Codes ..28 Installation . . . . . . . . . . . . . . . . . . . 30 Installation Steps .
- Page 4 Relay Functions ....47 11.3.8 Group Mode (26x#) ... . . 48 Page 4 © JVA Technologies Pty. Ltd. www.jva-fence.com...
- Page 5 JVA ZLM1 Manual Page 5...
-
Page 6: Quick Start Guide (St097)
QUICK START GUIDE (ST097) This quick start guide contains the bare minimum information to get your ZLM1 up and running with useful links to the more in depth information contained in this document. DEFAULT INPUT OUTPUT CONFIGURATION Figure 1 below shows the inputs and outputs for the ZLM1 low voltage monitor. -
Page 7: Wiring Up Your Zlm1
WIRING UP YOUR ZLM1 This is covered under “10 Wiring Diagrams” on page 34. After the ZLM1 has been wired up you can begin to protect your perimeter. JUMPERS Jumpers quickly allow you to turn on and off different features, or reset the device to defaults. -
Page 8: Frequently Used Lcd Keypad Commands
FREQUENTLY USED LCD KEYPAD COMMANDS For a full list of all keypad commands please see “8.6.9 ZLM1 Relevant Key- pad Codes” on page 28. NOTE: The default user PIN is 1234, and the default installer PIN is 012345. Function Key Sequence... -
Page 9: Introduction
The ZLM1 is compatible with the JVA Z series of energisers. It may be connected via a keypad bus network with other Z series devices to enable the whole group to be con- trolled via one keypad, or linked to a PC running Perimeter Patrol or Cloud Router. - Page 10 This is done by adjusting the devices programmable options. The ZLM1 will report an alarm on seeing a low voltage loop cut (open circuit), shorted to ground (short) or when high voltage from an electric fence energiser wire is shorted to the monitored low voltage loop.
- Page 11 JVA ZLM1 Manual Page 11...
-
Page 12: Features And Benefits
Single “Form C” Relay with dry con- Can be switched based on alarm tacts for switched voltage Output triggers or input states. Page 12 © JVA Technologies Pty. Ltd. www.jva-fence.com... -
Page 13: More Features
• Enables the construction of systems from economical Key switch op- eration to complex PC controlled applications • Runs from 12V DC external source • Fence connections are fully isolated from power and IO as per relevant parts of IEC60335.2.76 JVA ZLM1 Manual Page 13... -
Page 14: Constraints
• The maximum series resistance of the fence wire loop which can be accurately monitored is 5000 Ohms • Since the ZLM1 is a relatively new addition to the JVA Z series, older versions of TCP/IP adaptors, GPIO, Wi-Fi and GSM gateways may not be compatible with it. -
Page 15: Specifications
SPECIFICATIONS The specifications table below outlines the power consumption of the ZLM1 and the acceptable voltage and current ranges for different inputs and outputs. Nominal input voltage 14.2Vdc Power consumption of ZLM1 (Note 63mA at 12.5 Vdc Maximum voltage on “In1” input... - Page 16 5V switched output, so long as the driving circuit actively pulls down to ground when off. NOTE 3: This is the maximum rating of the energiser if the ZLM1 is used on the same fence as a high voltage electric fence energiser. Beyond this rating the ZLM1 loop circuit protection MOV’s may fail if high voltage wires...
-
Page 17: Equipment Requirements/Options
1. While the Keypad is not essential for normal operation, it is required to adjust the programmable options. 2. Up to 3 Keypads may be connected in parallel on a ZLM1, each Keypad must have a unique keypad address. For more information please see www.jva-fence.com.au... -
Page 18: Description
DESCRIPTION FRONT PANEL STATUS LIGHTS The status LED’s on the front of the ZLM1 allow the user to quickly ascer- tain the current status of the unit and if any action needs to be taken. Be- low is a brief description of each LED and the information it conveys. -
Page 19: Front Panel Lcd Display
FRONT PANEL LCD DISPLAY The detachable 16 character, two-line display of the ZLM1 clearly shows the status of the fence it is connected to at a glance. If you have an LCD keypad attached you can press the # key to freeze the current displayed information. -
Page 20: Keypad (Optional)
KEYPAD (OPTIONAL) A keypad (either 4 Line, Touch or LCD) can be used to remotely monitor and control the ZLM1. It is also used to set the programmable options. For more on programming the device see “11.2 Programming Options” on page 40. -
Page 21: Lightning Protection
LIGHTNING PROTECTION Although the ZLM1 contains internal lightning protection elements, ex- ternal lightning protection systems such as additional external lightning protection kits are recommended to further reduce lightning damage and thus reduce repair costs. Ask your installer for Lightning protection for... -
Page 22: Controlling Your Zlm1
If an installation contains two ways to control the ZLM1, then the most re- cent control signal will determine the Armed/Disarmed state. For example if the ZLM1 is armed via the keypad and then disarmed at the control input (IN1) it will disarm. -
Page 23: Web Server
Z-Series energisers as well as other JVA equipment. Ask yout JVA installer for a demonstration of Cloud Router or visit www.cloudrouter. pakton.net WEB SERVER Another alternative to remotely controlling JVA Z-Series energisers is to use the PAE225 Webserver. When suitable configured this allows the ener- giser to be controlled and monitored via a web browser from any internet connected device anywhere in the world. -
Page 24: Keypad Status Display
If a new trouble (AC fail, low battery etc) or alarm occurs, the keypad screen will jump to the relevant zone, the keypad will beep (unless toggled off) and auto scrolling will cease for about 3 minutes. Page 24 © JVA Technologies Pty. Ltd. www.jva-fence.com... -
Page 25: Arming/Disarming Using The Keypad
• If there is a fault on the fence and it cannot achieve full voltage, the LCD screen will indicate that there is a fault. • To disarm the system, enter your PIN and press #. JVA ZLM1 Manual Page 25... -
Page 26: When An Alarm Occurs
A high voltage wire shorts to a low voltage wire (HV Short) Note: If the ZLM1 is monitoring a fence that has a disarmed energiser on it, a ground alarm will occur when one of the HV wires touches a LV wire. This is because the ZLM1 pulse will ground through the energisers transformer. -
Page 27: To Clear Alarm Memory
• Enter your new PIN (must be 4 digits) and then #. (Repeat to confirm PIN.) • Press *# to exit User Programming mode. • Make sure your new PIN works by using it to arm the energiser or mon- itor. JVA ZLM1 Manual Page 27... -
Page 28: Internal Beeper/Keypad Beeper
Arm Zone 1 (Master) [User PIN][*][1][1][#] Arm Zone x, where x is [User PIN][*][1][x][#] any zone number up to 15 Disarm All Zones [User PIN][*][2][0][#] Disarm HV Zone 1 or Master [User PIN][*][2][1][#] Page 28 © JVA Technologies Pty. Ltd. www.jva-fence.com... - Page 29 Reset and Display firmware [User PIN][*][6][8][#] version number Reset and return to factory [Installer PIN][*] [6] [8] [#] defaults Siren test [*] [6] [3] [#] Battery test [*] [6] [4] [#] Clear Alarm memory [*] [1] [#] JVA ZLM1 Manual Page 29...
-
Page 30: Installation
16. Test that a short on the fence puts the ZLM1 into alarm and shows a short alarm on the keypad. 17. Test that a cut on the fence puts the ZLM1 into alarm and shows a cut alarm on the keypad. -
Page 31: Jumper Configuration
JUMPER CONFIGURATION The ZLM1 is equipped with four jumpers, the first (J2) is used to provide 12V to the relay. J3 and J4 operate in an identical fashion to those on the Z14. The third jumper, J8 will suppress the beeper on the ZLM1 when fitted. -
Page 32: Fence Terminals
Description of fence terminals (Left to Right) EHT IN Connect to external electric fence. Connect to fence loop in. Connect to fence loop return. Connect to main fence earth stakes. Note: Not all models have EHT input terminal. Page 32 © JVA Technologies Pty. Ltd. www.jva-fence.com... -
Page 33: Control, Power And Io Terminals
The unit is protected from over cur- rent by a 0.2A self resetting fuse. Relay 1 3 Way May be set to any of 16 alarm conditions. De- faults to zone 1 alarm. Dry contact or 12V JVA ZLM1 Manual Page 33... -
Page 34: Wiring Diagrams
WIRING DIAGRAMS 10.1 STANDALONE FENCE CONFIGURATIONS The ZLM1 may be used to monitor a loop of wire on or under a perimeter fence. • Bare conductors on insulators as per high voltage electric fence, but powered by the ZLM1 low voltage monitor for sensitive environments such as public areas. - Page 35 • Insulated wire woven through balustrade or chainmesh fencing. The alarm is given if the insulated wire is cut or shorted to earthed metal. JVA ZLM1 Manual Page 35...
- Page 36 • Insulated wire buried underground. The alarm is given if the insulated wire is cut or shorted to earth. Page 36 © JVA Technologies Pty. Ltd. www.jva-fence.com...
-
Page 37: Low Voltage Zoning System
10.2 LOW VOLTAGE ZONING SYSTEM A ZLM1 can be combined with JVA Z series energisers which provide the main deterrence. The ZLM1 provides fence monitoring by using extremely low voltage pulses on the unused wires on a fence. Below shows how the fence might be configured for monitoring. -
Page 38: Keypad Bus Wiring
• Set the Group ID of the Z18 to Master (2601#) • Set the Group ID of the ZLM1 to Slave 1 (2602#) The Group ID of the ZLM1 must be 1 value higher than the Group ID of the Z-Series Energiser driving it... -
Page 39: Example Group Wiring Diagram
Interface) • Set the Group ID of the Z28 to Master (2601#) • Set the Group ID of the first ZLM1 to Slave 1 (2602#) • Set the Group ID of the first ZLM1 to Slave 2 (2603#) JVA ZLM1 Manual... -
Page 40: Technical Information
NOTE: The detachable LCD screen must be connected upon power up or reset to display messages. The ZLM1 has the ability to display error messages. At start up if any of the Power On Self Tests (POST) fail an error message will be displayed after the version number. -
Page 41: To Exit Programming Mode
The Ener- giser LCD will immediately show the updated value. As the keypad bus is common to a group of Z-Series Energisers and ZLM1 units, one keypad could be used to program all connected units at the same time. -
Page 42: Programmable Options Table
Not Used Not Used Chime Mode 2 (siren) Allows the keypad and internal beeper function to be altered Not Used Binary Options Not Used Not Used Page 42 © JVA Technologies Pty. Ltd. www.jva-fence.com... - Page 43 Used to assign an alarm func- tion to relay (Zone 1 alarm Not Used Not Used Not Used Not Used Group ID If used as part of a group, this sets the device ID Not Used JVA ZLM1 Manual Page 43...
-
Page 44: Programming Options In Detail
NOTE: The lower this option is set the more likely you are to get false alarms. The value is set directly. For example to set a threshold of 2 bad or missing pulses enter: 0 6 0 2 #. Value (x) Missed Pulses Page 44 © JVA Technologies Pty. Ltd. www.jva-fence.com... -
Page 45: Battery Alarm Voltage (07X#)
Input Type (11x#) The control inputs can be inverted. Unless an input is used for a Gate switch, in which case it is always NC. Value (x) Input type NO Normally open NC Normally Closed JVA ZLM1 Manual Page 45... -
Page 46: Chime Mode (14X#)
Auto re-arm time has passed. A setting of 9 will disable auto re-arm. The default is 0 Seconds (Immediate). Value (x) Function 0 Seconds (immediate) 30 Seconds 1 Minutes 2 Minutes Page 46 © JVA Technologies Pty. Ltd. www.jva-fence.com... - Page 47 Disabled – Do not auto rearm 11.3.7 Relay Functions The Relay can be set to any of the available functions (user assignable). Relay 1 is (21x#) Defaults for the ZLM1 • Relay 1 – Zone 1 Alarm (0) Value (x) Mode...
- Page 48 Option as required before linking the Keypad bus into a group. The ZLM1 should only be a group master if there are no Z energisers in the group. I.e. the group is made up of one or more ZLM1 units only.
- Page 49 Value (x) Mode Master Slave 1 Slave 2 Slave 3 Slave 4 Slave 5 Slave 6 Slave 7 Slave 8 Slave 9 Slave 10 Slave 11 Slave 12 Slave 13 Slave 14 JVA ZLM1 Manual Page 49...
- Page 50 Page 50 © JVA Technologies Pty. Ltd. www.jva-fence.com...
- Page 51 DEALER JVA ZLM1 Manual Page 51...
- Page 52 fEncE...
