Top Control Panel - Positive Grid Spark 40 User Manual

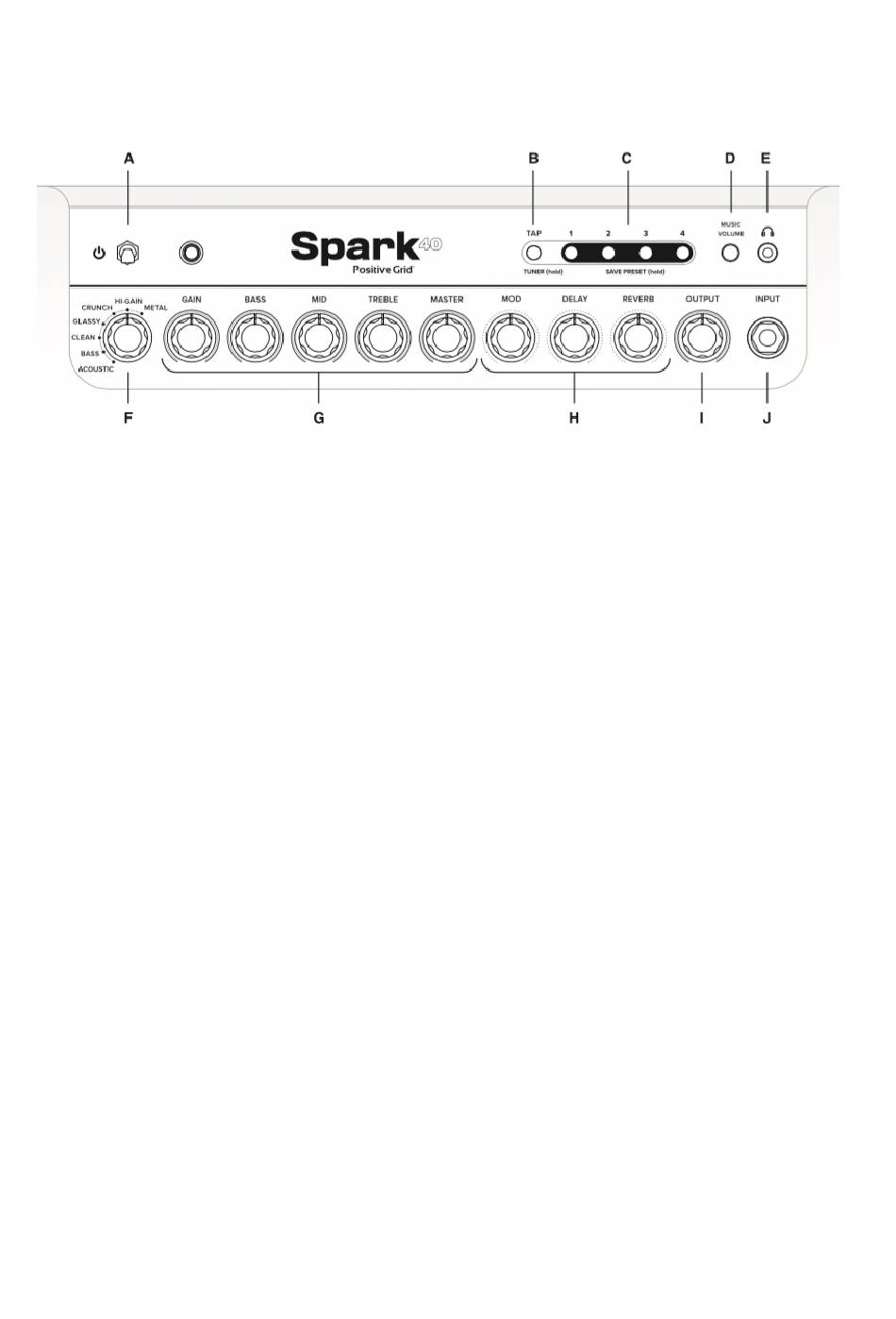

TOP CONTROL PANEL

(A) Power Switch
(B) Tap / Tuner
Long press the button to engage TUNER mode. While in TUNER mode, the TAP and 4 Preset LEDs indicate
the pitch being played. Long press the button again to exit TUNER mode. The guitar signal becomes muted
when TUNER mode is engaged.
The tempo of the delay effect can be set by tapping (more than twice) on the switch.
(C ) Preset Switches
Tap to select one of the 4 presets stored on the Spark amp. The red LED flashes to indicate that the preset
has been modified. Long-press the switch again to overwrite the preset.
(D) Adjust the volume from Bluetooth audio, AUX in, or USB audio playback.
(E) Headphone Port
Main speaker sound is muted when a connector is inserted into this port.
(F) Amp Type
Changes the amp model in the current preset.
Use the SPARK app to access amp models not selectable by this switch.
(G) Amp Control
Controls the gain, EQ, and volume of the amp model in the current preset.
(H) Effects Control
Adjusts the amount of Modulation, Delay, and Reverb in the current preset.
Use the SPARK app to change the effects type and detailed effects settings.
(I) Output
Adjusts the overall volume of your guitar.
(J) Guitar Input
03
