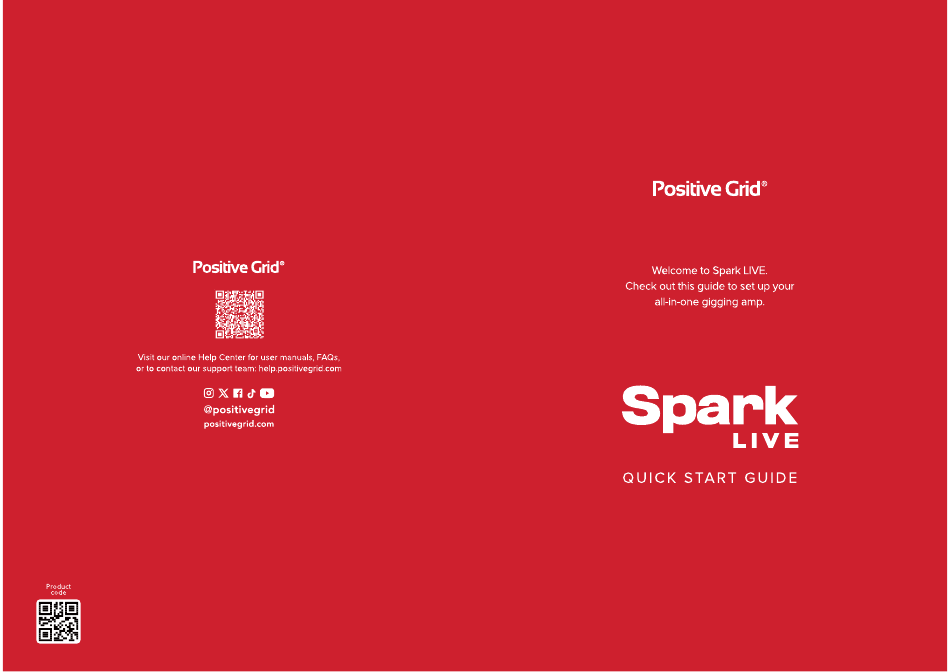

Positive Grid Spark LIVE Quick Start Manual

Hide thumbs Also See for Spark LIVE:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Spark LIVE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Positive Grid Spark LIVE

Summary of Contents for Positive Grid Spark LIVE

  • Page 2: What's In The Box

    WHAT’S IN THE BOX? Spark LIVE Quick Start Guide Safety Instructions USB-C® to USB-A Cable AC Power Cord...

  • Page 3: Get Started

    Update Spark LIVE Firmware • It’s important that you update Spark LIVE to the latest firmware. Spark LIVE can be easily connected to your Wi-Fi network, allowing you to receive official firmware updates directly from Positive Grid. These updates frequently introduce new gear, features, and optimizations, all designed to make your jam sessions better than ever before.

  • Page 4: To Select An Input Channel

    To select an input channel CH3/4 STEREO INPUT CH3 / L CH4 / R • Each input channel supports 3 to 4 different modes. The factory default settings for the 1/4" jack sockets of CH1, CH2, and CH3/4 are for general guitar or bass. The XLR socket for CH2 is for a dynamic microphone.

  • Page 5: Front Panel

    Front Panel...
  • Page 6 • Flashing Green/Yellow/Orange: Charging H - Wireless Indicators Indicates the status of the Bluetooth and Wi-Fi connection. • Solid Blue/Green: Connected • Flashing Blue/Green: Pairing I - Speaker Stand Mount Spark LIVE can be mounted on any 35mm standard speaker stand.

  • Page 7: Rear Panel

    Rear Panel CH3/4 STEREO INPUT CH3 / L CH4 / R...
  • Page 8 J - Input Channel 2 (XLR / 1/4" Combo) CH2 features a combo socket that supports both standard XLR or 1/4" TS line inputs. Each port supports multiple modes: • Microphone Mode (Factory Default) For standard dynamic microphones • Line In Mode For instruments with an output line level signal, such as keyboards, DI boxes or a line output from an external effects unit 1/4"...
  • Page 9 Connect a mobile device to charge it. To preserve battery life, we recommend charging mobile devices when Spark LIVE is powered by AC. AA - Tilt Stand Use the stand to position Spark LIVE at different angles and orientations. AB - Battery Slot Insert the Spark Battery here (sold separately).
  • Page 10 To play music via Bluetooth • To connect to Spark LIVE for the first time, turn Bluetooth® on in the settings of your mobile device, and select “Spark LIVE Audio" from the list of scanned devices. • To pair a new device, press the Pair button on the Rear Panel of Spark LIVE, turn Bluetooth®...

  • Page 11: Using The Tilt Stand

    Using The Tilt Stand Horizontal position. • Gently lay Spark LIVE • Put out the tilt stand. down to prevent any damage. Vertical position. • Put out the tilt stand. • Rotate 90 degrees • Extend the stand by in the direction of pressing the side the arrow.
  • Page 12 There are 2 modes that are dictated by the orientation of Spark LIVE: • Wide Mode (Stereo) : When Spark LIVE is placed horizontally, it will trigger stereo mode. This mode is recommended if panning between the left and right output channels is required.
  • Page 13 Mounting Spark LIVE on a Speaker Stand • Spark LIVE includes a port on the side for mounting on a speaker stand. It will fit any standard 35mm stand. • Please also make sure the speaker stand can support a speaker with a minimum weight of 13kg and an overall size of 456 x 241 x 298mm.

  • Page 14: Installing Battery

    Please be aware that using a third party battery can damage your Spark LIVE. • Make sure Spark LIVE is off and unplug the power cord. • Loosen the screw next to the battery cover and lift it up. • Insert Spark Battery with the sticker facing outward.
  • Page 15 Pairing With A Spark Control X Step1. Turn on the Spark LIVE. Step2. Long press the Pair Button on the Rear Panel until both Wireless Indicator LEDs on the Front Panel light up blue. Step3. Press the pair button on Spark Control X.

  • Page 16: Using The Looper

    Before using the Looper, ensure you're connected to the Spark app or Spark Control. Using the Looper with the Spark app: Looper • Connect Spark LIVE to the Spark App. • Tap on the Music Page tab. • Select the Looper and follow the on-screen directions.

  • Page 17: Factory Default Settings

    More presets can be downloaded and customized for free on ToneCloud. You can access ToneCloud via the Spark app, search for a custom preset, download it for free, and then save the preset directly to Spark LIVE by tapping ‘Save to hardware preset’ in the menu.
