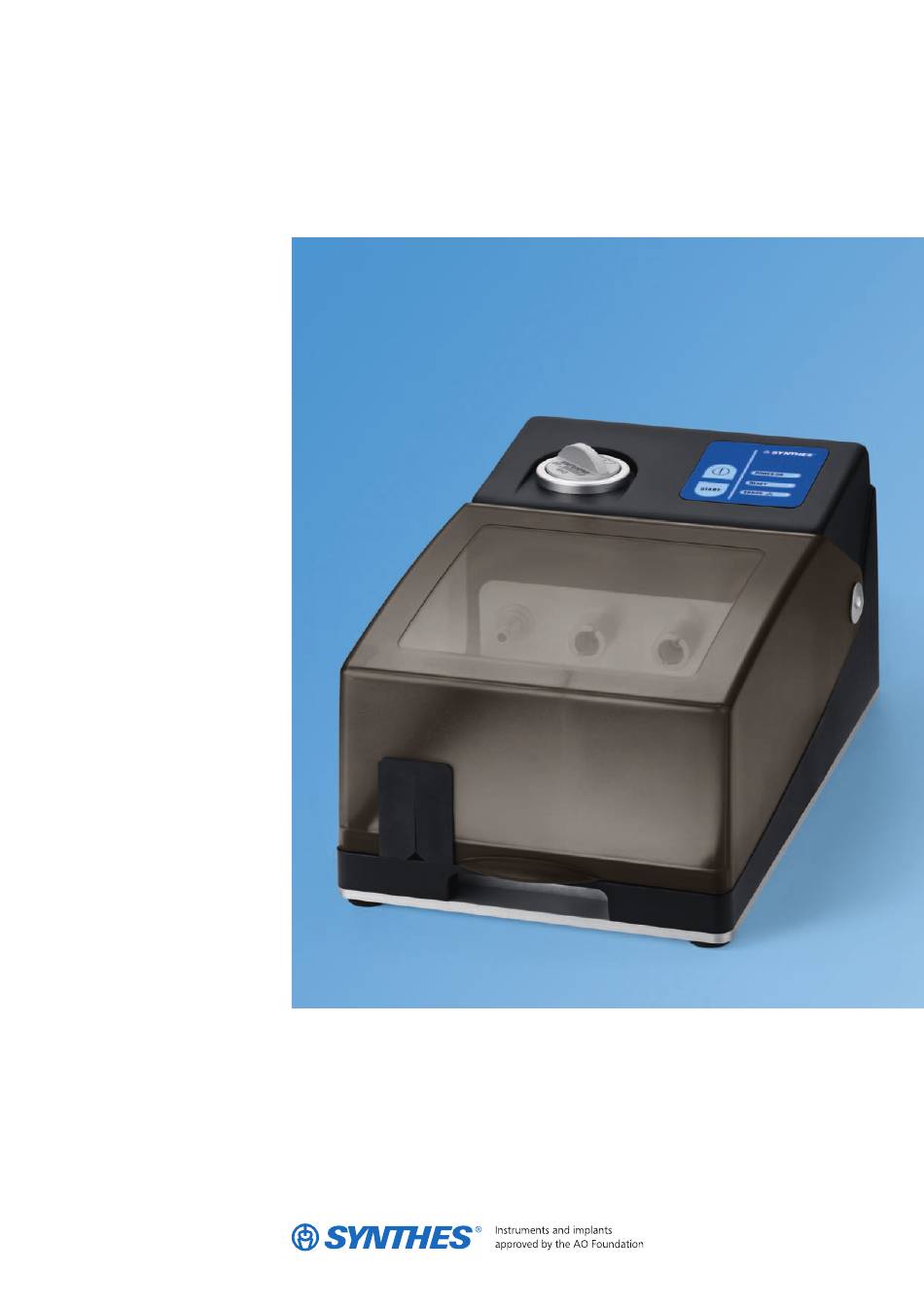

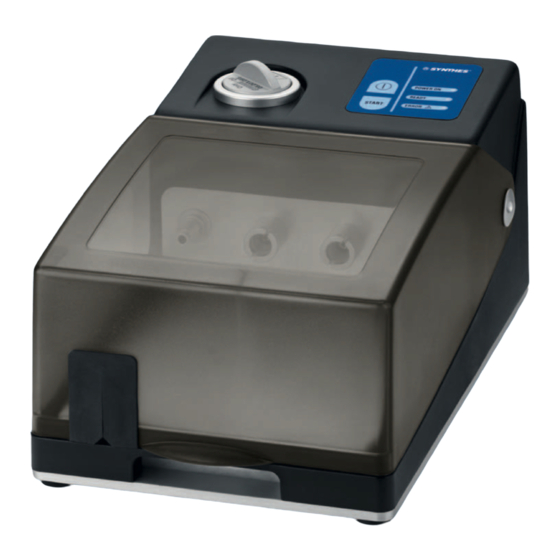

- Page 1 Maintenance Unit. For Electric Pen Drive and Air Pen Drive. Instructions for Use...
-
Page 3: Table Of Contents
Table of Contents Introduction The Lubrication Process Care and Maintenance Troubleshooting Explanation of Symbols Used System Specifications Ordering Information Synthes... -
Page 4: Introduction
Electric Pen Drive and the Air Pen Drive. Location of device The Synthes Maintenance Unit is only permitted for storage and operation outside the operating theatre. It must not be allowed to come into direct or indirect contact with the patient. -
Page 5: The Lubrication Process
Pneumatic Connection into the air connector on the back of the module; then connect the nipple for the Pneumatic Connection to the air supply. Fill the oil tank with Synthes special oil 50 ml for EPD and APD (05.001.095), as described in the chapter Care and Maintenance. - Page 6 Make sure that the cable for the Electric Pen Drive 90,000 rpm handpiece is positioned were the opening for the lid is placed. Synthes Maintenance Unit. For EPD and APD Instructions for Use...
- Page 7 Maintenance Unit for Air Pen Drive (05.001.089) has to be used. Place the female side of the Adapter on the connector on the left of the Maintenance Unit, making sure that the pins on the connector engage in the slotted link on the Adapter and then turn the Adapter clockwise.
- Page 8 Connect the Burr Attachments XL and XXL 20° To connect the Burr Attachment XL 20° (05.001.063) and XXL 20° (05.001.055) the Adapter for Maintenance Unit for Burr Attachments XL and XXL (05.001.064) has to be used. Place the male side of the Adapter on the second connector...
- Page 9 To remove the Air Pen Drive handpiece, simply turn the handpiece anticlockwise and remove from the Adapter. When the Maintenance Unit is only used for maintaining the Air Pen Drive it is possible to keep the Adapter in the Mainte- nance Unit.
-
Page 10: Care And Maintenance
To change the filter, open the Lid, remove the old filter and fit the new filter into the bottom of the Maintenance Unit. The oily filter and the empty bottle of Synthes special oil, for EPD and APD, should be disposed according to national regulations. - Page 11 Do not allow moisture to penetrate the unit. In case of damage, please contact your Synthes representa- tive. If the Maintenance Unit has to be sent in for repair, make sure that all cables and hoses are sent in together with the unit itself.
-
Page 12: Troubleshooting
Lubrication procedure does not start, No handpiece or attachment is plugged Reconnect the handpiece or attach- despite pushing the start button. to the Maintenance Unit or is detected. ments (entirely). Push the start button The POWER ON LED lights up. again. -
Page 13: Explanation Of Symbols Used
The product is UL certified. The product is CE marked. This is a recognised component by UL. According to WEEE 2002/96/EC the Maintenance Unit may not be disposed in the normal waste, but must be sent back to Synthes for recycling. Synthes... -
Page 14: System Specifications
Output current: 500 mA Degree of protection: IP X0 Caution – The Maintenance Unit may not be sterilized. – The Maintenance Unit may not be stored or operated in an explosive atmosphere. – Do not allow moisture to penetrate the unit. -
Page 15: Ordering Information
05.001.094 Maintenance kit with oil and filter, for EPD and APD 05.001.089 Adapter, for Maintenance Unit, for APD 05.001.064 Adapter, for Maintenance Unit, for Burr Attachment XL and XXL Spare parts 50160469 Lid, for Maintenance Unit 05.001.099 50160470 Fixing bolt, for Maintenance Unit 05.001.099 50160473 Pneumatic connection, for Maintenance Unit 05.001.099... - Page 16 Presented by:...
