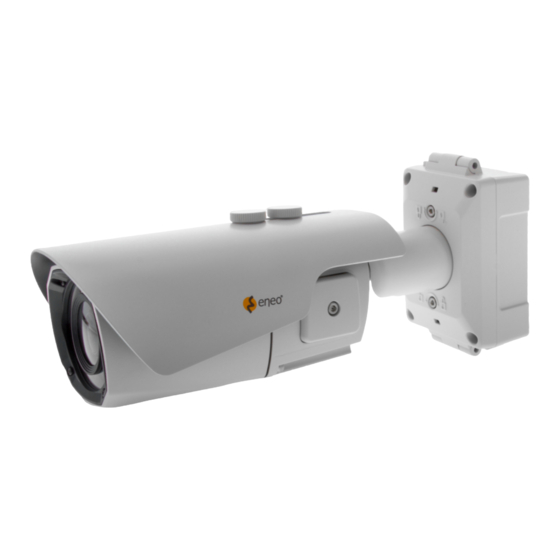

- Page 1 User Manual 1/2,8” Network Camera, 1920x1080, Day&Night, AF Zoom, WDR, 3.2 - 9 mm, Infrared, IP67 ICB-72A0003M0A...
-
Page 2: Table Of Contents
Table of content Parts supplied ......................5 Part names ......................6 Installation instructions ..................7 Cover Opening Alarm and External Alarm Input ................7 Using Grommet ............................. 8 Using RJ45 Easy Cap for Network cable ....................8 Recommended cable length into the Junction box base .............. 8 Pan &... - Page 3 Safety instructions General safety instructions • • Keep the operating instructions in a safe place for later use. • Installation, commissioning and maintenance of the system may only be carried out by authorised individuals and in accordance with the installation instructions - ensuring that all applicable standards and guidelines are followed.
- Page 4 Class A device note This is a Class A device. This device can cause malfunctions in the living area; in such an event, the operator may need to take appropriate measures to compensate for these. WEEE (Waste Electronical & Electronic Equipment) Correct Disposal of This Product (Applicable in the European Union and other European countries with separate collection systems).
-
Page 5: Parts Supplied
Parts supplied • Network Camera • Operating Instruction • Installation CD • Mounting Template • Plastic Anchor: 6 x 30mm (4x) • Mounting Screw: 4 x 30mm (4x) • Hex Wrench: 3mm (1x) • Hinge Pin (1x) • Cable Tie (2x) •... -
Page 6: Part Names
Part names Sunshield bolt Sunshield Junction Box Top Junction Box Base Bracket Body Case Dual window Hinge Pin 2x Lock/Unlock Screw 2x Water drain Inside of Opening Cover Please close the cover IP Reset Micro SD Card slot after setting up and Joy stick for Zoom/ tighten it properly. -
Page 7: Installation Instructions
Installation instructions Cover Opening Alarm and External Alarm Input CAUTION: Cover Opening(Sabotage) Alarm and External Alarm Input are electrically tied together internally. Alarm contact types, N.O or N.C are selectable by the Alarm Input Selection Jumper and the selection types should be matched with Alarm Type in setup menu. -
Page 8: Using Grommet
Using Grommet wrap the cable properly as illustrated. If it doesn’t wrap the cable properly,it could cause the water leakage problem. Using RJ45 Easy Cap for Network cable Recommended cable length into the Junction box base • CABLE with RJ-45 Connector: 70mm~80mm •... - Page 9 Install the mount onto a strong structure. Prepare the Junction box base and the accessaries for installation. 1. Locate the mounting template at the installation position and drill the ceiling or wall if needed. 2. Route the Power/Ethernet cables through the grommets from the wall. Insert the grommets onto the Junction box base.
- Page 10 4. Hook up the Power & I/O wires and Network cable to the connectors. Network cable can be connected to either RJ-45 connector or LSA connectors. Connections to LSA connectors TIA/EIA 568A TIA/EIA 568B 1. Green-White 1. Orange-White 2. Green 2.
- Page 11 Connections to RJ-45 connector Hinge pin Junction Box Top 10. Set the camera’s orientation and tighten the Lock/Unlock screws using hex wrench. 11. Open the Opening cover to insert the Micro SD memory or control the zoom/ Focus using joystick. 12.
-
Page 12: Pan & Tilt Adjustments
CAUTION: Extreme care should be taken NOT to scratch the window in front of lens. Care should be taken the cable is NOT to be damaged, kinked or exposed in the hazardous area. Do not expose the camera directly to a strong light source such as the sun or spot light. - Page 13 Adjustment of viewing angle with a bracket Hex wrench 13 13...
-
Page 14: General Description
General Description • Full HD, 2Mega pixel, NETWORK CAMERA, 1920x1080(30/25p) • The best low light performance with SONY’s STARVIS sensor • ONVIF Conformance, Zero Con guration • Cross Web Browsing (IE, Edge, Safari, Firefox, Chrome) • Adaptive web resizing depending on layout & resolution of display device by RESPONSIVE WEB •... -
Page 15: Speci Cation
Speci cation ITEM ICB-72A0003M0A Imaging Sensor 1/2.8" Sony 2Mega pixel CMOS STARVIS Sensor Effective Pixels 1,920(H) x 1,080(V) approx. 2.07Mega pixels (Full-HD mode) Sensitivity Color Mode: 0.1 lux (LED off) , B/W Mode: 0.0006 lux (LED off) Sync. System Internal... - Page 16 Speci cation Login Authority Administrator, Operator, Guest Security Multi User Authority, IP Filtering, HTTPS, Video Stream, Export/Import Network Time Sync. Synchronize Computer/NTP Server, Manual Software Reset Restart, Reset, Factory Default Auto Recovery Backup, Restore Remote Upgrade Using Web Browser Protocol TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour Client Software...
-
Page 17: Quick Network Setup
IP addresses. The network camera‘s default IP address is: 192.168.1.10. 5. Right clicking the device name in the eneo Site Manager will bring up the context menu. Use the ‘Open Device Web Site’ option to access the camera. 6. The web viewer login page will open up in your default web browser. -
Page 18: Full Menu Setup
Full Menu Setup Setup Menu Table Category Menu Configuration Player Control Pause, Snapshot, Speaker, Microphone, Record Display (Window Fit, Full Screen, Custom) LIVE VIEW Video Stream Stream1, Stream2, Stream3, Snapshot Protocol HTTP, TCP, UDP Zoom, Focus, Push AF PTZ Contol Event Search, Timeline Search, Timeline Bar PLAYBACK General, System Information, Open source Information... - Page 19 Full Menu Setup Event Rules Event Processing, ONVIF Mapping System Security User, HTTPS, IP Filter, ONVIF, Video Stream, Export/Import SETUP Current Time, New Time, Time Zone, Date&Time Display Date & Time Network TCP/IP, DDNS, RTP, UPnP, Zeroconf, Bonjour Language English, German , French, Polish, Finnish, Korean Maintenance Maintain (Restart, Reset, Default), Upgrade, Setup Export, Setup Import...
-
Page 20: Live View
Full Menu Setup 1. LIVE VIEW Enter the live view menu on the Web Viewer. (A) Menu button : Click the button to show or hide the setup menu bar. (B) Model name : Show a camera model name connected. (C) Select Language : Set the web viewer language English, Deutsch or French. -
Page 21: Ptz Control
Full Menu Setup (5) Record: Records the live video in H.264 format to the equipped storage memory like SD, SDHC or SDXC from the video stream selected in the RECORD menu. returns to the previous view. (8) Custom: Selects the live view display scale, 0%~200%, by the control bar. 100% is the original size. -
Page 22: Playback
Full Menu Setup 2. PLAYBACK 0:00:00 ■ Event Search Playback display using the event list. • Press the input bar to pop up EVENT DATE & TIME window and select the event TYPE. • Click SEARCH button to show up EVENT LIST. •... -
Page 23: Setup
Full Menu Setup 3. SETUP Enter the setup menu on the Web Viewer. 3-1. Information Shows the overall information about the system such as Model name, MAC address, IP address, Zeroconf, IP address, Firmware version, Server time, Running time, CPU usage, Inbound/Outbound Bandwidth and Open source list. - Page 24 Full Menu Setup 3-2-2. Stream Stream1, 2, 3 ● > COMPRESSION : Video compression codecs are available with H.264 profiles for all streams and additional MJPEG for stream3 only. > RESOLUTION : Each stream can have its individual resolution selected from its list. >...
- Page 25 Full Menu Setup > BITRATE : Indicates the transmission speed through the network and defines the overall picture quality along with the image resolution, frame rate, GOP size and the compression codec for H.264. A high value provides the higher image quality but the total sum of bitrates for the streams has to be considered in calculating the network duty.
- Page 26 Full Menu Setup 3-2-3. Image 2016-10-06 09:50:35 CAM1...
- Page 27 Full Menu Setup Basic ● > BRIGHTNESS: Adjusts the overall brightness of the scene. Increasing the value increases the brightness. > BRIGHTNESS [NIGHT]: Adjusts the brightness of the night scene only when COLOR DN is selected in DAY/NIGHT. Increasing the value increases the brightness. >...
- Page 28 Full Menu Setup ● > MODE : Selects how to control the exposure, AUTOMATIC, MANUAL, SHUTTER PRIORITY or IRIS PRIORITY. • AUTOMATIC : Camera controls the exposure by the combination of the iris and the shutter. • MANUAL : Allows the user to set the exposure for the specific use in the unchanged illuminance.
- Page 29 Full Menu Setup ● > MODE : Provides White Balance presets. ATW-INDOOR, ATW-OUTDOOR or ATW / AUTOMATIC is recommended for most applications. > Cb GAIN / Cr GAIN : (Available only in MANUAL AWB mode) Adjusts the white balance by Cb/Cr color components to the specific lighting which has a fixed color temperature.
- Page 30 Full Menu Setup Day & Night ● > MODE : Selects how to control the day/night feature. • DAY : Disables the switching day/night filter and fixes it to DAY only. • NIGHT : Disables the switching day/night filter and fixes it to NIGHT only. •...
- Page 31 Full Menu Setup DOL WDR ● > DOL WDR (Digital Over Lap Wide Dynamic Range) : • MODE : ON enhances the dynamic range by the dual scan technology with long & short shutters. • LEVEL : Determines the strength of the dynamic range. Higher values increase brightness.
- Page 32 Full Menu Setup ● (Dynamic Digital Noise Reduction) > 3DNR : • MODE: ON reduces the noise by cancelling the spatial & temporal components in 3 dimensional a way. • LEVEL: Determines the strength of the noise reduction. Higher values reduce more noise but can also lead to a ghosting effect.
- Page 33 Full Menu Setup > MODE : ON displays the video in vertical view format, 16:9->9:16 for narrow streets, corridors or hallways. > ROTATION : Determines the orientation to rotate. 3-2-4. Privacy Mask Mark ENABLE checkbox to activate the privacy masks. >...
- Page 34 Full Menu Setup 3) In the video window, place the mouse cursor where you would like to create a mask. Click the left-mouse button to create (or delete) a mask. The mask window can be moved or resized with the mouse. 4) Enter the name in the list and then click SAVE.
- Page 35 Full Menu Setup 3-2-6. DIS (Digital Image Stabilization) > MODE : ON enables DIS function. > RANGE : Sets the image compensation range. Higher values attempt to stabilize the image against big displacement but the field of view is narrowed. >...
-
Page 36: Audio
Full Menu Setup 3-3. Audio > Mark ENABLE checkbox to activate the audio. Supports full duplex audio. > COMPRESSION : Selects audio compression codec. μ-law is used primarily in North America and a-law used in most other countries outside North America. G.711 μ-law tends to give more resolution to higher range signals while G.711 a-law provides more quantization levels at lower signal levels. -
Page 37: Record
Full Menu Setup 3-4. Record 3-4-1. Record > Mark OVERWRITE WHEN STORAGE IS FULL checkbox to allow the storage to be overwritten. > CONTINUOUS RECORD SETTING : Mark ENABLE checkbox to activate the continuous recording into the storage. > VIDEO STREAM : Selects the stream to be recorded into the storage. SD, SDHC or SDXC memory can be used as a storage device. - Page 38 Full Menu Setup 3-4-3. Storage > FORMAT : Formats the storage. Backup the data before formatting the storage if necessary. > REMOVE : Helps removing the storage safely. [ NOTE ] Common Internet File System (CIFS) is a remote file access protocol that forms the basis for Windows file sharing, network printing, and various other network services.
- Page 39 Full Menu Setup 3-5. PTZ 3-5-1. Preset Preset : ● > PRESET : Presets the zoom positions up to 4(or 8) presets. Click the green rotating icon on the top-right of the video viewer and the PTZ CONTROL mini menu will appear. To hide it, click the icon again. Adjust Zoom using + &...
- Page 40 Full Menu Setup Home : ● Returns the camera automatically to the predefined home position after completing any zoom operations. Camera recovers its home position after power on. Position > Mark ENABLE checkbox to use HOME preset. Click the green rotating icon on the top-right of the video viewer and the PTZ CONTROL mini menu will appear.
-
Page 41: Event
Full Menu Setup 3-6. Event 3-6-1. Triggers EVENT TRIGGERS menu defines and sets the parameters for the various event sources. [ Important NOTE ] Once the event is generated, the camera can record the video into the storage, output the alarm signal, email the event, send the video clip to FTP, boost the video frame rate, move to PTZ preset or send the event to the notification server. - Page 42 Full Menu Setup To set the motion detection area (up to 4 include-types and 4 exclude-types) : 1) Mark ENABLE checkbox. 2) In the video window, place the mouse cursor where you would like to make a detection window and click&drag the right button. The following window is then generated. •...
- Page 43 Full Menu Setup > Mark ENABLE checkbox to create & activate up to 3 VCAs(Line Cross & Field Intrusion). > NAME : Input the individual name for each VCA. > DIRECTION : (Line Cross only) Sets the direction of detection for the line cross. •...
- Page 44 Full Menu Setup Tamper ● The camera can detect severe changes in the image caused by actions such as repositioning the camera or painting over of the lens and generates an alarm to alert. > Mark ENABLE checkbox to activate the tamper alarm. >...
- Page 45 Full Menu Setup Network ● Used to trigger the event when the network connection fails. > Mark ENABLE checkbox to activate the network event. > DWELL TIME : Sets the time for the event once triggered by the network connection event.
- Page 46 Full Menu Setup Timer ● Mark ENABLE checkbox to trigger the event as defined Timer Interval. (Hour/Minute/Second) Day / Night ● Mark ENABLE checkbox to trigger the event when Day/Night is switched. > MODE : Select the mode, Day->Night or Night->Day. >...
- Page 47 Full Menu Setup 3-5-2. Actions EVENT ACTIONS menu defines and sets the parameters for how to treat the various event sources. Record ● > Mark ENABLE checkbox to enable recording into the built-in storage when the event occurs. > VIDEO STREAM : Selects the stream to be recorded when the event occurs. >...
- Page 48 Full Menu Setup E-mail ● The camera can send email messages generated by the events via SMTP (Simple Mail Transfer Protocol). > Mark ENABLE checkbox to enable emailing. • SENDER : Enter the email address as the sender. Any virtual email address like sample@sample.com can be used if the recipient can recognize it from the camera.
- Page 49 Full Menu Setup [ NOTE ] If a PLAIN or LOGIN mechanism is negotiated, the camera sends the user name and password to the SMTP server. The LOGIN mechanism is supported by Microsoft, as well as some other clients. Most other clients support the PLAIN authentication mechanism.
- Page 50 Full Menu Setup • PORT : Enter the port number used by the FTP server. The port number can be adjusted in the range 1-65535. The default setting is 21. • REMOTE DIRECTORY: Specify the path to the directory where the uploaded images will be stored.
- Page 51 Full Menu Setup • ADDITIONAL SUFFIX : Selects the suffix for JPEG image file names to be added after the file name. Selecting NONE will overwrite the previous file and thus DATE &TIME is most preferable. Video Boost ● Sets the frame rate and bitrate for H.264 stream and the quality for JPEG stream at EVENT STATE when the event occurs.
- Page 52 Full Menu Setup Notification Server ● > Mark ENABLE checkbox to notify the event to the notification server when it occurs. • TYPE : Selects the network protocol to connect the notification server. • SERVER URL : Input the server URL of the notification sever. To enable the audio when the event occurs, copy the URL at SETUP>AUDIO and paste it on the server URL like http://x.x.x.x/setup/audio/audio.php •...
- Page 53 Full Menu Setup 3-5-3. Rules EVENT RULES menu defines and sets the parameters for what to do for the various event sources. Event Processing ● Event process lists have to be generated and can be edited for what to do when the event occurs.
- Page 54 Full Menu Setup...
- Page 55 Full Menu Setup > NOTIFICATION SERVER: Mark the checkbox to use the notification server as set in SETUP>EVENT> ACTIONS> NOTIFICATION SERVER when the selected event occurs. • MESSAGE : Input the message to be sent to the notification server. > FTP : Mark the checkbox to use FTP as set in SETUP>EVENT>ACTIONS>FTP when the selected event occurs.
-
Page 56: System
Full Menu Setup 3-7. System 3-7-1. Security Users ● Manages the user accounts by names, groups and authorities. > Mark ENABLE ANONYMOUS VIEWR LOGIN if anyone is permitted to login anonymously. Accessing SETUP menu with the anonymous login will exit and require ID/Password login. >... - Page 57 Full Menu Setup HTTPS ● Selects the CONNECTION MODE. Export / Import > HTTP : Transfers data without encryption. Supports a URL that only starts with "HTTP: " > HTTPS : Transfer data with encryption by Hypertext Transfer Protocol over SSL protocol. Supports a URL that only starts with "HTTPS: "...
- Page 58 Full Menu Setup To add a subnet of network addresses, these must be added in CIDR [ NOTE ] (Classless Inter-Domain Routing) notation. For example: entering 192.168.1.0/24 will add all the addresses in the range 192.168.1.1 to 192.168.1.254. Contact your network administrator for more detail.
- Page 59 Full Menu Setup 3-7-2. Date & Time Current Time ● Shows the current date and time. Clicking SAVE tap updates and saves the date and time with the selected time in NEW TIME. New Time ● Select one of the following server times. >...
- Page 60 Full Menu Setup 3-7-3. Network TCP/IP ● > IPv4 ADDRESS : • OBTAIN IP ADRESS VIA DHCP : Gets the IP address assigned by the DHCP (Dynamic Host Configuration Protocol) server. • STATUS : ‘Allocated’ shows that the IP address is obtained from the DHCP. •...
- Page 61 Full Menu Setup > PORT : • HTTP PORT : Use a port number in the range 1024-65535. Default is 80. • HTTPS PORT : Use a port number in the range 1024-65535. Default is 443. • RTSP PORT : Use a port number in the range 1024-65535. Default is 554.
- Page 62 Full Menu Setup DDNS ● (Dynamic Domain Naming Service) > Mark ENABLE checkbox to use DDNS. > DDNS server : Select the DDNS server to use. > Input REGISTERED HOST name, USER NAME, PASSWORD and INTERVAL. If the camera has not been registered to the DDNS host previously, the [ NOTE ] registration is required.
- Page 63 Full Menu Setup UPnP ● UPnP is enabled by default so that the network camera can be automatically detected by operating systems and clients that support this protocol. > FRIENDLY NAME : Enter the name up to 32 alphanumeric characters like Model Name-MAC address. [ NOTE ] UPnP must also be enabled on your Windows computer.
- Page 64 Full Menu Setup Zeroconf ● ZeroConf (Zero configuration) networking enables the network to establish automatically with the automatic assignment of numeric network addresses (zeroconf IP addresses) without requiring manual operator intervention or special configuration servers when the DHCP server is not available in the network. >...
- Page 65 Full Menu Setup 3-7-5. Maintenance Maintain ● > RESTART : Restarts the camera without changing any settings. > RESET : Restarts and loads the factory settings but does not change IP address and PTZ settings. > DEFAULT : Loads and saves the factory defaults for all parameters including IP address and PTZ settings.
-
Page 66: User Manual
Full Menu Setup Setup Export ● Current configurations for the camera can be saved as a file by clicking the EXPORT button. Setup Import ● The exported configuration file from a reference camera or a backup configuration can be imported and configured/reloaded onto other cameras. [ NOTE ] •... -
Page 67: Troubleshooting
Troubleshooting If you suspect a problem is being caused by incorrect configuration or some other minor problem, consult the troubleshooting guide below. Upgrading the Firmware Firmware is software that determines the functionality of the network camera. One of your first actions when troubleshooting a problem should be to check the current firmware. - Page 68 Troubleshooting Poor image quality. Increased lighting can often improve image quality. Check that there is sufficient lighting at the monitored location. Check all image and lighting settings. Rolling dark bands or flickering Try adjusting the Exposure Control setting under AE in image.
- Page 69 VIDEOR E. Hartig GmbH Exclusive distribution through specialised trade channels only. VIDEOR E. Hartig GmbH Carl-Zeiss-Straße 8 63322 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 Technical changes reserved Fax +49 (0) 6074 / 888-100 www.videor.com...
