Connecting Devices

Connecting the Eumex 704PC LAN to T-ISDN

Regulations permit the general public to connect the Eumex 704PC LAN to the
Deutsche Telekom network. You can thus connect the Eumex 704PC LAN yourself if
the following conditions are met:
• The device may only be connected to a basic Euro-ISDN connection. Do not under
any circumstances connect it to lines or equipment in the analogue network. Never
connect it to an ISDN tie line. Failure to observe these conditions can result in
faulty operation or damage to the Eumex 704PC LAN as well as to the network.
• The basic Euro-ISDN connection must be used in conjunction with a network ter-
minator (NTBA) as supplied by Deutsche Telekom. The connection must be the
multi-terminal type.
Insert the Eumex 704PC LAN connector cable in the corresponding socket of the
NTBA. Insert the other end in the socket marked "ISDN" on the bottom left-hand side
of the Eumex 704PC LAN.

Connecting the Eumex 704PC LAN to T-DSL

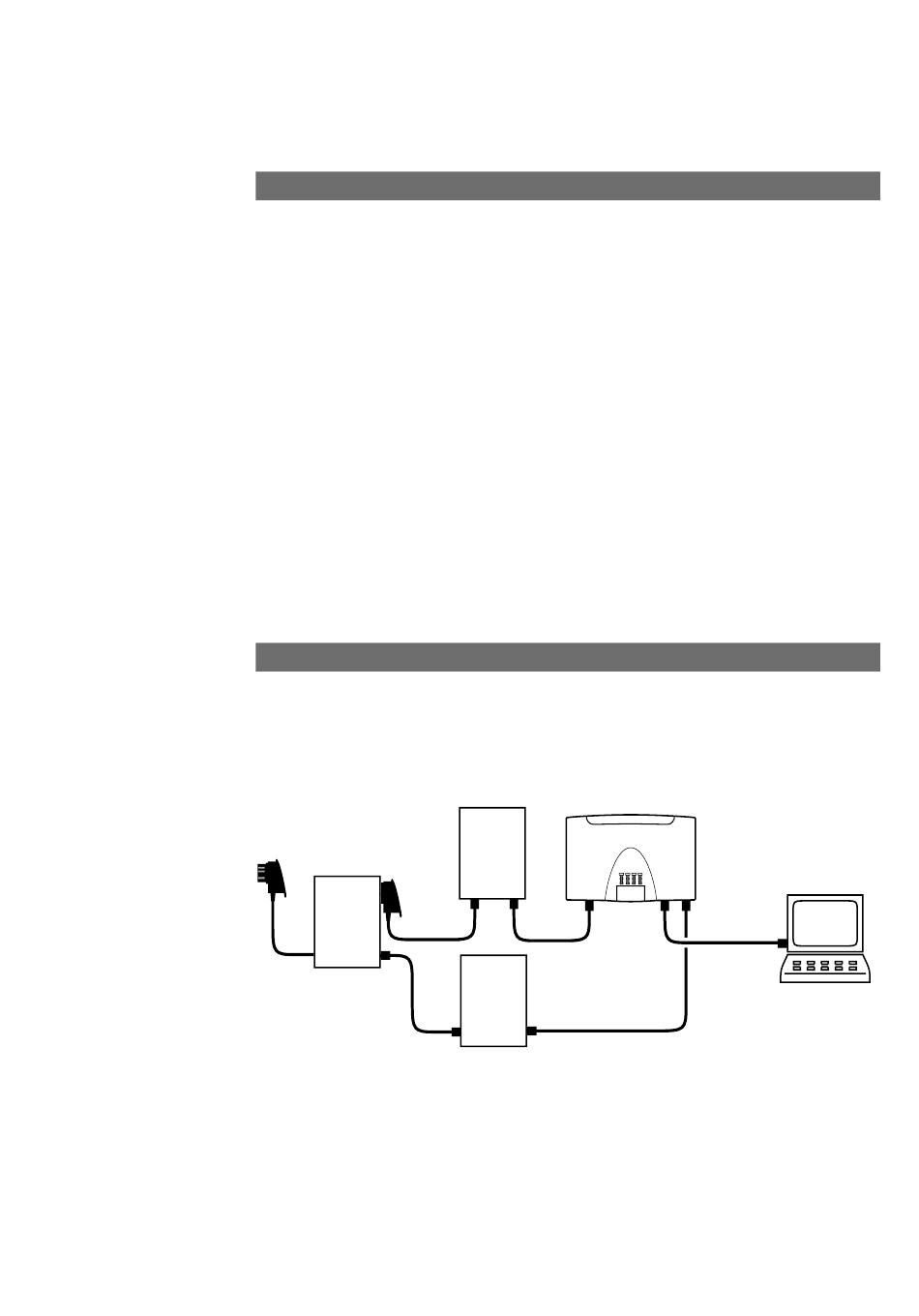

Connect the devices to one another as shown in the diagram. Please refer to the
installation, mounting and commissioning guides for details on the splitter (broad-
band connector unit) and the modem (broadband network terminator).
Splitter
(BBAE)
NTBBA
ADSL
In this configuration, both ISDN B-channels as well as the T-DSL connection are avail-
able simultaneously. You can thus surf in the Internet (via T-DSL) and still have two
lines free for making telephone calls and fax transmissions.
NTBA
Eumex 704PC Eumex 704PC
LAN LAN
T-ISDN
Modem
(NTBBA)
10BaseT
(Ethernet
or USB)
PC T-DSL
11
