Functional characteristics

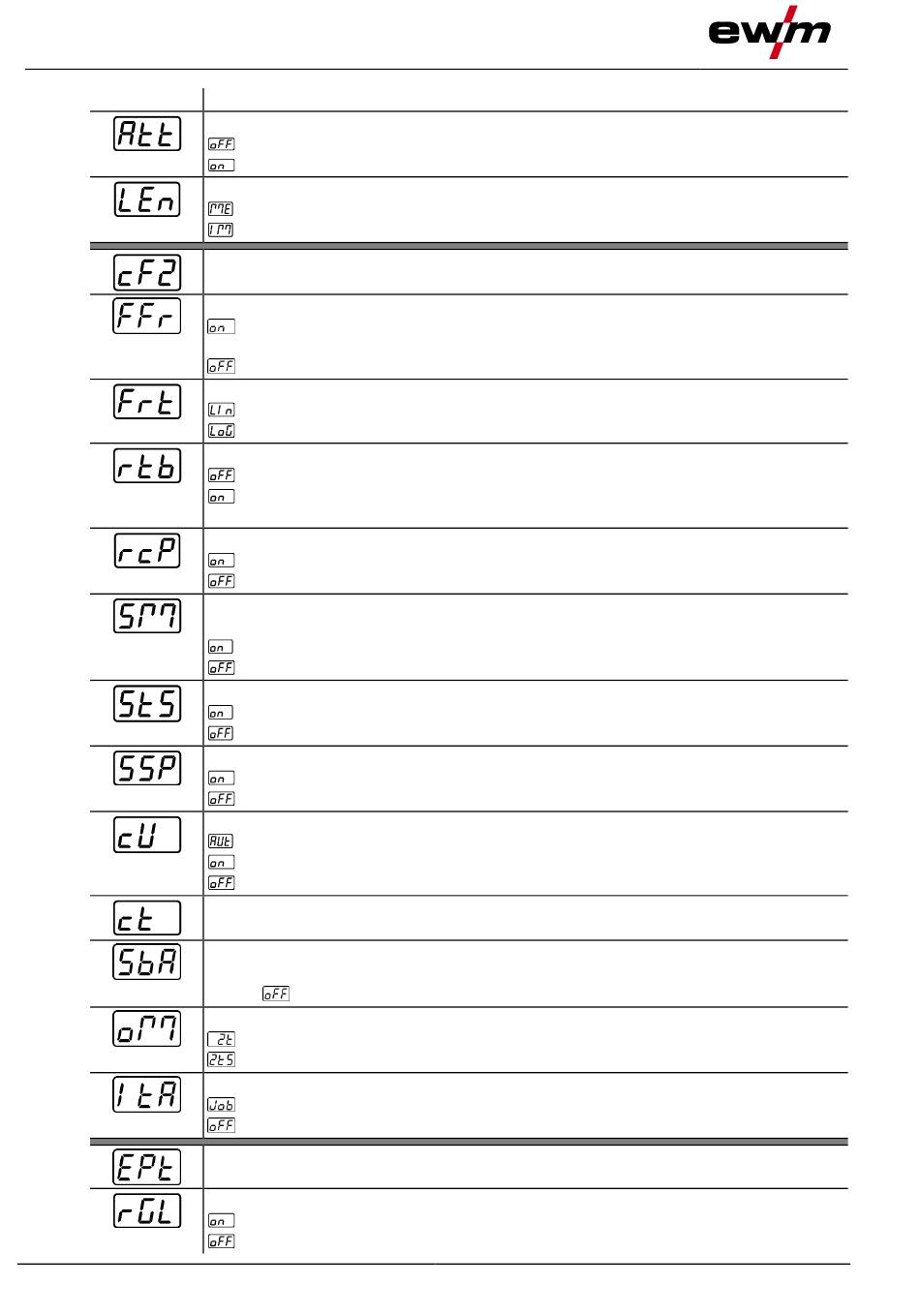

Machine configuration menu
Display
56
Setting/selection
Show warnings > see 6.1 chapter
------- Function disabled (ex works)
------- Function enabled
Setting the system of units
------- Units of length in mm, m/min. (metric system)
------- Unit of length in inches, ipm (imperial system)
Machine configuration (second part)
Settings for machine functions and parameter display
RTF start ramp > see 5.1.10.1 chapter
------- Welding current rises to the specified main current level in a ramp function (ex
works)
------- Welding current immediately jumps to the specified main current level
RTF response > see 5.1.10.2 chapter
------- Linear response
------- Logarithmic responsive (ex works)
Tungsten balling with RT AC remote control
------- Function disabled
------- Function enabled (in addition, the "AC balance" rotary knob at the RT AC
remote control has to be turned to the left stop) (ex works)
Welding current polarity switching
------- polarity switching at the RT PWS 1 19POL remote control (ex works)
------- polarity switching at the welding machine control
spotmatic operating mode > see 5.1.4.5 chapter
Ignition by contact with the workpiece
------- Function enabled (ex works)
------- Function disabled
Spot time setting > see 5.1.4.5 chapter
------- Short spot time, setting range 5 ms to 999 ms, increments of 1 ms (ex works)
------- Long spot time, setting range 0.01 s to 20.0 s, increments of 10 ms (ex works)
Process activation setting > see 5.1.4.5 chapter
------- Separate process activation (ex works)
------- Permanent process activation
Torch cooling mode
------- Automatic operation (ex works)
------- Permanently enabled
------- Permanently disabled
Welding torch cooling, post-flow time
Setting 1–60 min. (ex works 5 min.)
Time-based power-saving mode > see 5.4 chapter
Time to activation of the power-saving mode in case of inactivity.
=
Setting disabled or numerical value 5– 60 min. (ex works: 20).
Operating mode switching via interface for automated welding
------ Non-latched
------- Special non-latched
Re-ignition after arc interruption > see 5.1.3.3 chapter
------- JOB-dependent time (ex works 5 s).
------- Function disabled or numerical value 0.1–5.0 s.
Expert menu
AC average value controller
------- Function enabled (ex works)
------- Function disabled
1
1
1
