RocketFish RF-BTR-319 Manual

RocketFish RF-BTR-319 Manual

Bluetooth audio receiver

Advertisement

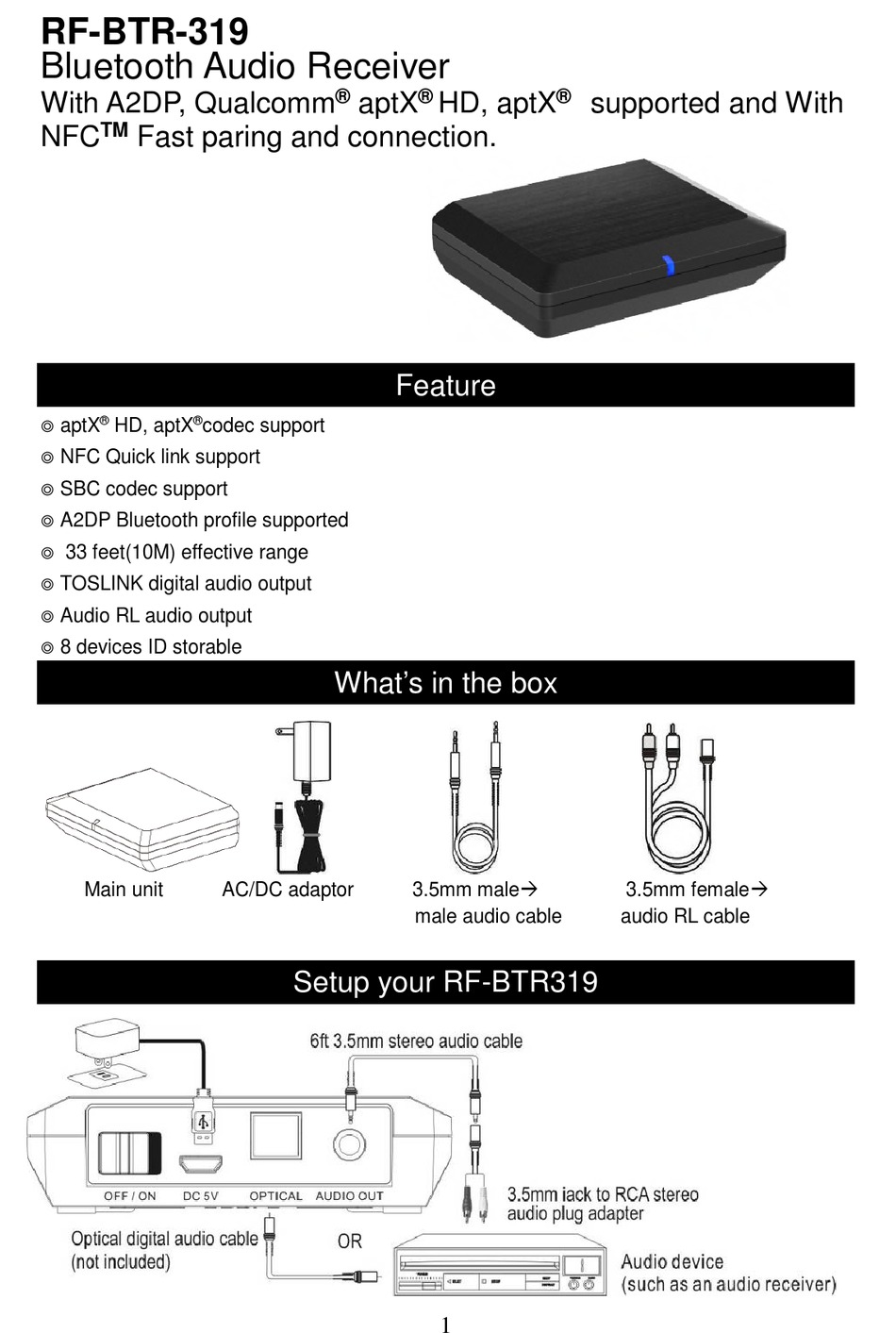

RF-BTR-319
Bluetooth Audio Receiver
With A2DP, Qualcomm
TM
NFC
Fast paring and connection.
®
®
aptX
HD, aptX
codec support
NFC Quick link support
SBC codec support
A2DP Bluetooth profile supported
33 feet(10M) effective range
TOSLINK digital audio output
Audio RL audio output
8 devices ID storable
Main unit
®
aptX
What's in the box
AC/DC adaptor

Setup your RF-BTR319

®
®
HD, aptX

Feature

3.5mm male
male audio cable
1
supported and With
3.5mm female
audio RL cable

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF-BTR-319 and is the answer not in the manual?

Questions and answers

Summary of Contents for RocketFish RF-BTR-319

  • Page 1 RF-BTR-319 Bluetooth Audio Receiver ® ® ® With A2DP, Qualcomm aptX HD, aptX supported and With Fast paring and connection. Feature ◎ ® ® aptX HD, aptX codec support ◎ NFC Quick link support ◎ SBC codec support ◎ A2DP Bluetooth profile supported ◎...
  • Page 2 Analogue connection Connect one 3.5mm end of the include audio to headphone jacket on the RF-BTR319 Connect the other end to an audio input on your home stereo system (3.5mm or 3.5mm + 3.5mmm2 RCA). Consult your stereo user’s manual for more information on how to accomplish this.
  • Page 3 Step 2 : Turn on the NFC function Back to setting page Check NFC function Turn on NFC function Step3: Fast Connection using NFC Connection, if connected Pairing First TAP the Smartphone to on you can play music now The NFC logo on RF-BTR319 *The message will pop up Please choose YES *Some device will pop up...
  • Page 4 Step4: Disconnected you device and RF-BTR319 If you wan to disconnect, you need to tap the Smartphone to RF-BTR319 again. Then the connection between RF-BTR319 and your device will off. Pairing your RF-BTR319 for no NFC device iPad/iPhone/iPod touch 1. Go to Bluetooth manager of your iPad/iPhone/iPod touch by the following steps 3.Turn On the Bluetooth 1 .From your 2.
  • Page 5 4.Your iPod/iPhone/iPad 5. Your iPod/iPhone/iPad 6.If you want to will auto searching connected to RF-BTR319 disconnect , press available device. You Now. And You can play music information , tap on will see “Music from your iPod/iPhone/iPad. disconnect Receiver” then Tap on 7.
  • Page 6 Android Phone/Tablet(ver 9.0 as Example with aptX HD support) 1. Go to Bluetooth manager of your smart phone by the following step 1. From your smart phone 2. Inside the setting, turn on 3. Bluetooth is turned on home page, tap on “setting” The Bluetooth 5.
  • Page 7 Note: Some devices, such as iPhone, will connect immediately after pairing so the LED will ON. Other devices, such as notebook, may ask you if you wish to connect and LED will go off after pairing until a connection is established. Although the RF-BTR319 can only play music from one device at a time, it is capable of being paired to up to 8 devices.
  • Page 8 Indication of LED Indication meaning Description Flash once 1 sec Power on Waiting for connection per 5 secs /Pairing Permanent Lighted connected Device and main unit are connected Troubleshooting You can solve your problems from this section No music out from my stereo speaker ◎...
  • Page 9 FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 10 IC Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference,and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
