Rotating either control will alternate between the ON or OFF selection. Press the Output On/Off button when the desired mode
is displayed.
If the NO option is selected the system will revert to the Setup main menu. If the YES option is selected the following screen will
be displayed:

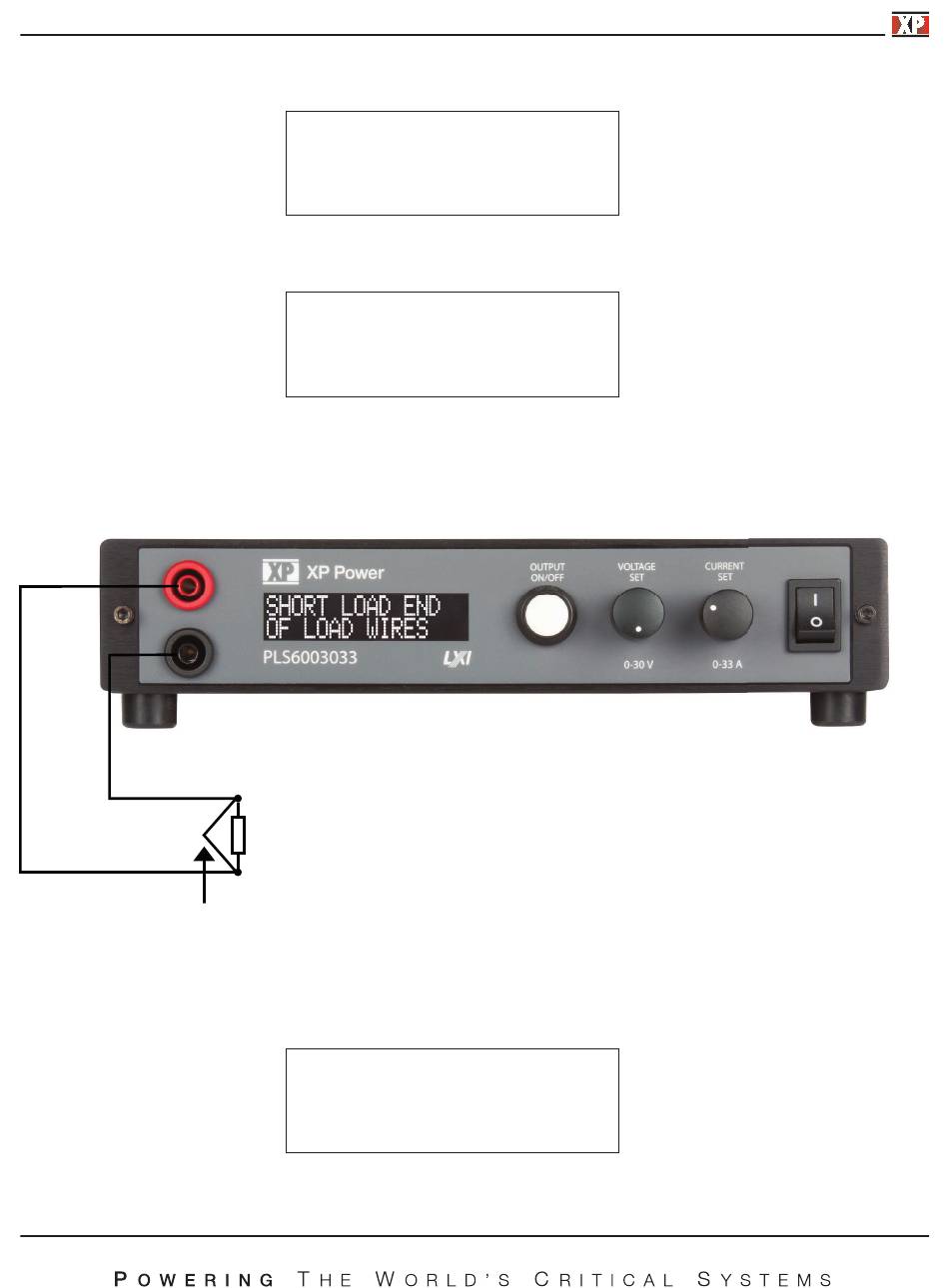

At this point the load end of the wires must be shorted as shown below:
Short here
It is important that a good short with heavy wire is made as failure to do this will result in a poor remote sense calibration.
Once the short is in place, press the output on/off button. The following screen is an example of what will be displayed.
18
Remote Sense
OFF
Short load end
of load wires
Load
Adjust to Normal
current
I=2.33
