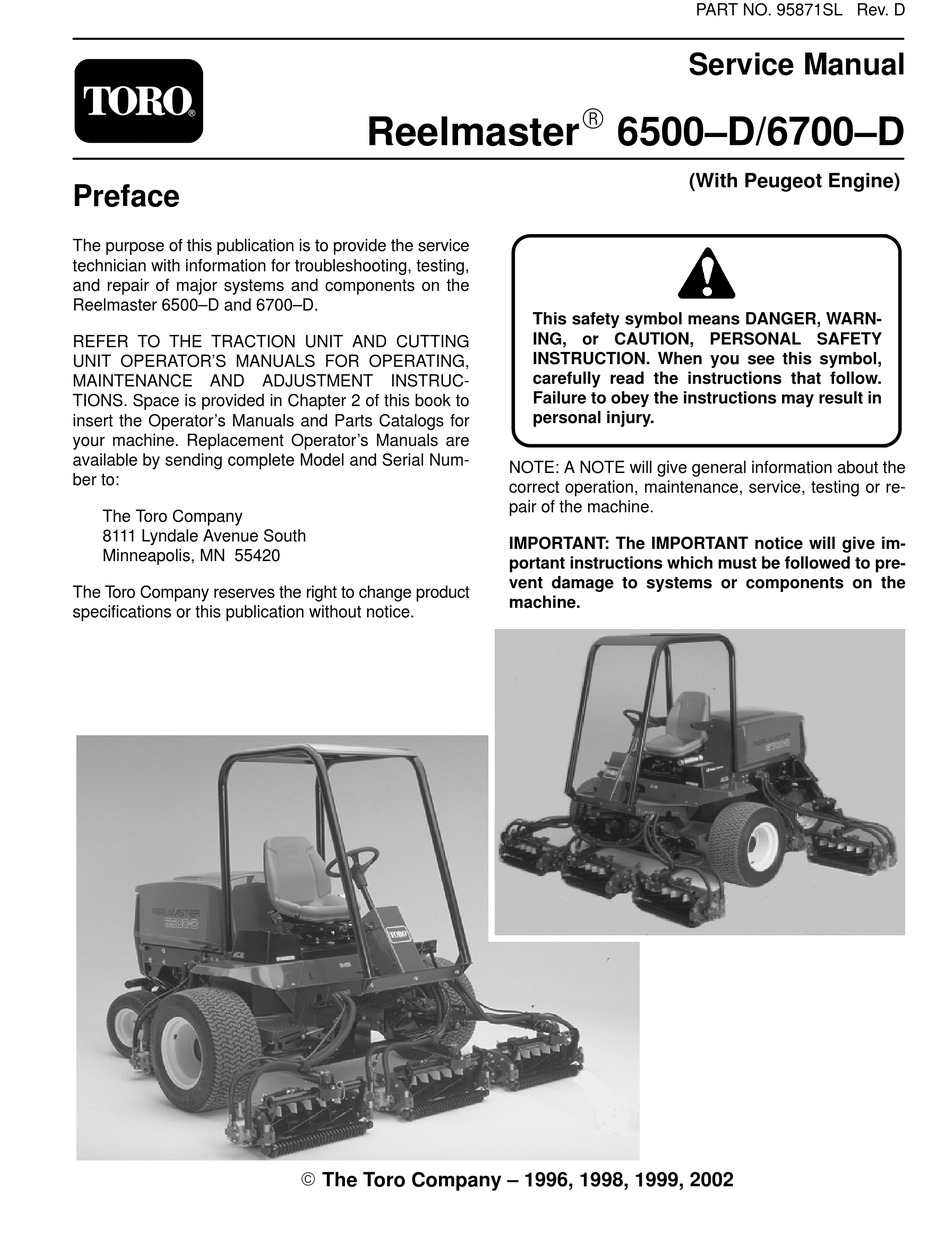

Preface
The purpose of this publication is to provide the service
technician with information for troubleshooting, testing,
and repair of major systems and components on the
Reelmaster 6500–D and 6700–D.
REFER TO THE TRACTION UNIT AND CUTTING
UNIT OPERATOR'S MANUALS FOR OPERATING,
MAINTENANCE AND
TIONS. Space is provided in Chapter 2 of this book to
insert the Operator's Manuals and Parts Catalogs for
your machine. Replacement Operator's Manuals are
available by sending complete Model and Serial Num-
ber to:
The Toro Company
8111 Lyndale Avenue South
Minneapolis, MN 55420
The Toro Company reserves the right to change product
specifications or this publication without notice.
Reelmaster
ADJUSTMENT
INSTRUC-
E The Toro Company – 1996, 1998, 1999, 2002
R
6500–D/6700–D
This safety symbol means DANGER, WARN-
ING, or CAUTION, PERSONAL SAFETY
INSTRUCTION. When you see this symbol,
carefully read the instructions that follow.
Failure to obey the instructions may result in
personal injury.
NOTE: A NOTE will give general information about the
correct operation, maintenance, service, testing or re-
pair of the machine.
IMPORTANT: The IMPORTANT notice will give im-
portant instructions which must be followed to pre-
vent damage to systems or components on the
machine.
PART NO. 95871SL Rev. D
Service Manual
(With Peugeot Engine)
