Hint:
Waiting for at least 10 minutes is required to discharge the high voltage capacitor inside the
inverter with converter assembly.
(1)

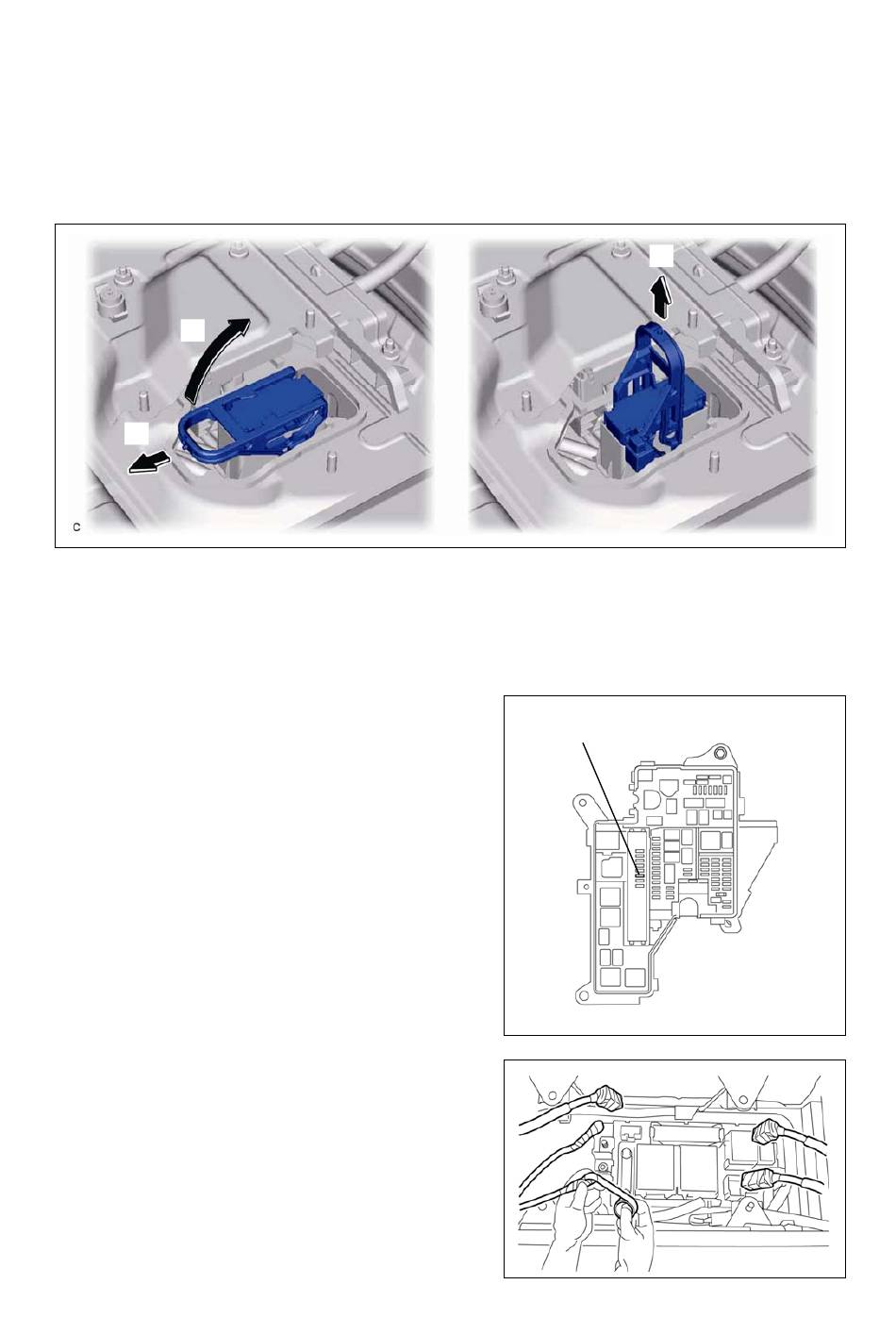

Wear insulated gloves and remove the service plug grip after sliding the lever of the service
plug grip as shown in the illustration.
2
1
4. Carry the removed service plug grip in your pocket to prevent other staff from
accidentally reinstalling it while you are dismantling the vehicle.
5. Make other staff aware that a high-voltage system is being dismantled by using the
following sign: CAUTION: HIGH-VOLTAGE. DO NOT TOUCH (see page 19).
6. If the service plug grip cannot be removed
due to damage to the vehicle, remove the
IG2-MAIN fuse (20 A).
Caution:
This operation shuts off the HV system.
Be sure to wear insulated gloves because
high voltage is not shut off inside the HV
battery. When it is possible to remove the
service plug grip, remove it and continue
the procedure.
7. After disconnecting or exposing a high-voltage
connector or terminal, insulate it immediately
using insulating tape. Before disconnecting or
touching a bare high-voltage terminal, wear
insulated gloves.
IG2-MAIN fuse
17
3
