Firmware Update Via At Commands; Procedure For Fota Over Http - Onlogic NWK030 Manual

Initial Setup (cont.)

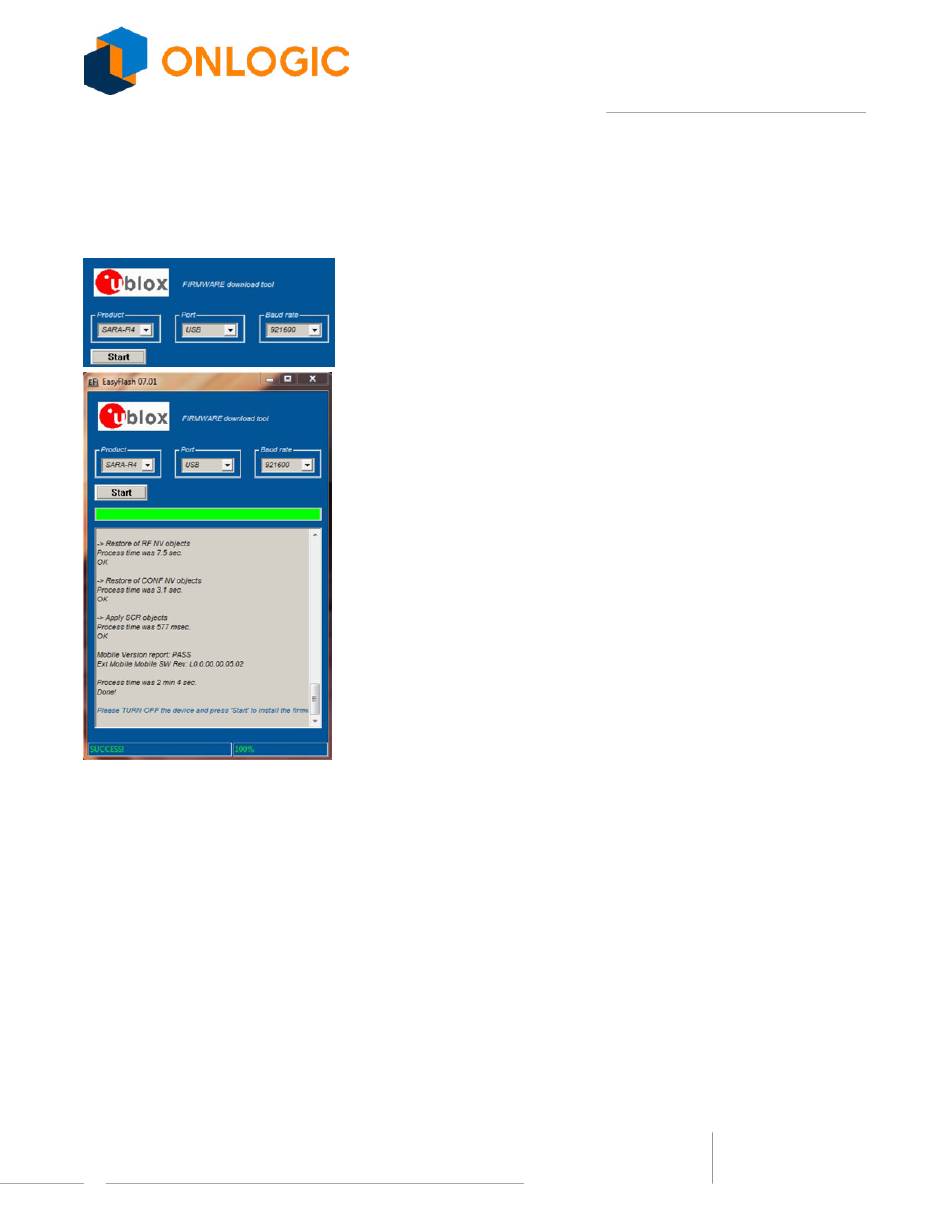

USB Update Application (cont.)

Firmware Update via AT Commands

Procedure for FOTA Over HTTP

1. Verify existing / current firmware version via ATI command
2. Set up a HTTP connection:
AT+UHTTP=2,1,"www.websiteurl.com"
AT+UHTTP=2,5,<port number>
3. Get from the previously set HTTP connection
AT+UHTTPC=0,1,"/path/firmware_file.pkg"
4. After the download is finished (+UUFTPCR: 100, 1), start the FOTA update:
AT+UFWINSTALL
It should reboot after 15-20 minutes, do not remove the power from the device before it reboots.
5. Verify firmware version via the ATI command
The firmware should be different from the previous ATI command output
10
Cat M1 / NB-IoT Modem
