INSTALLATION

7.1
MAGNET AND SENSOR
8
1
8
2
3
4
7
5
6
7.2
INSTALLING THE HANDLEBAR BRACKET
• Attach the mounting bracket to the right of the handlebar stem by using a screw-
driver.
• Use the rubber shims (provided) to ensure the bracket fits snuggly.
• Adjust the position of the bracket to desired angle. Tighten screws to secure
bracket.

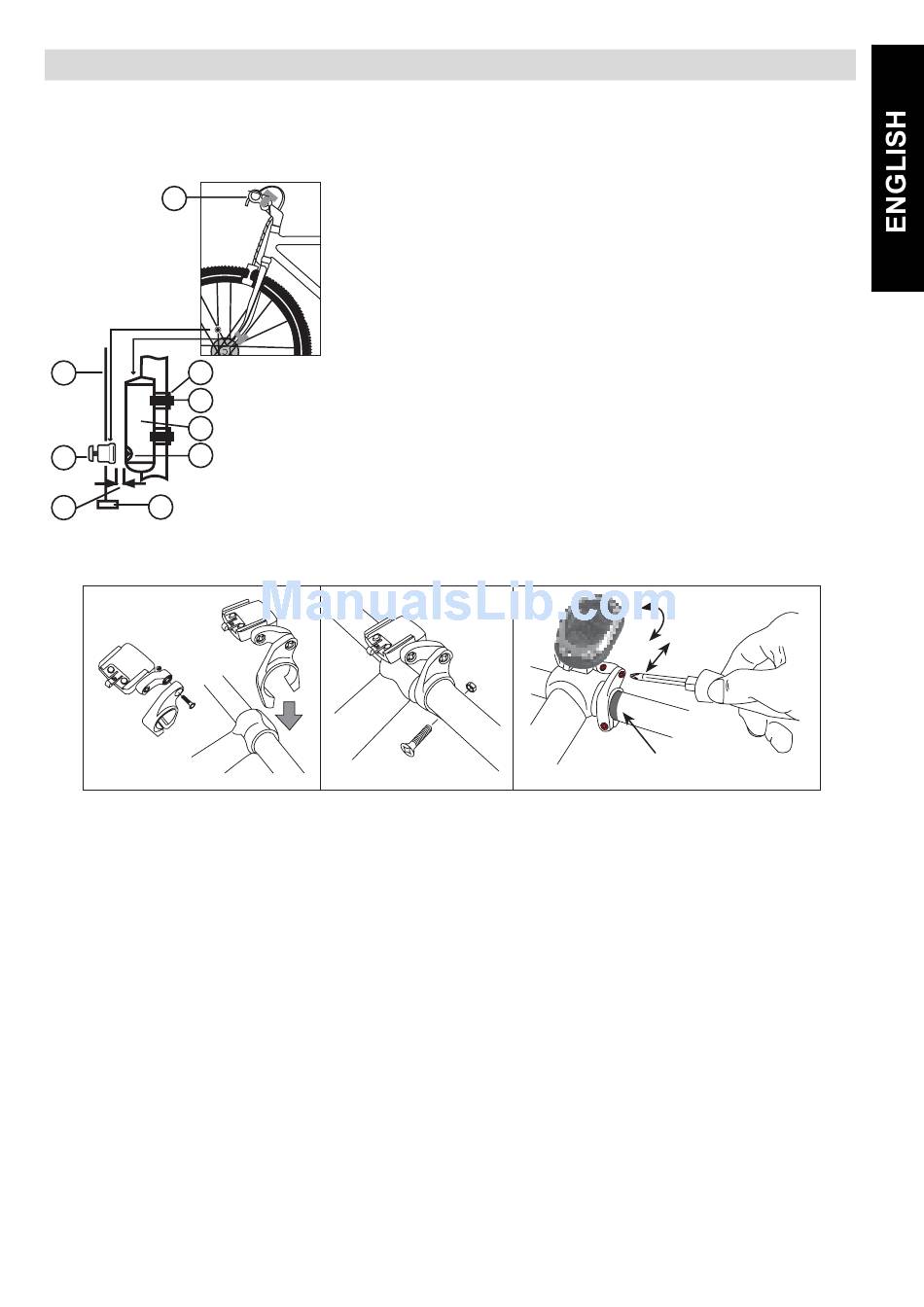

• Attach the magnet (7) to the spoke (8) at the right
side of the front wheel (5) approximately half the
length from the hub.
• Attach the SENSOR (3) loosely to the right fork
blade by using the cable ties (2)
Use a rubber shim (1) to ensure the sensor
fits tight.
• Position the SENSOR so that the MAGNET
passes within 2mm (6) of the alignment mark (5) on
the transmitter as the wheel rotates
• Tighten the zip ties to hold the SENSOR securely
in place and cut off the excess.
TOPCOM Speedopulse 1000w
