Polycom EagleEye Director Quick Integration Manual page 11

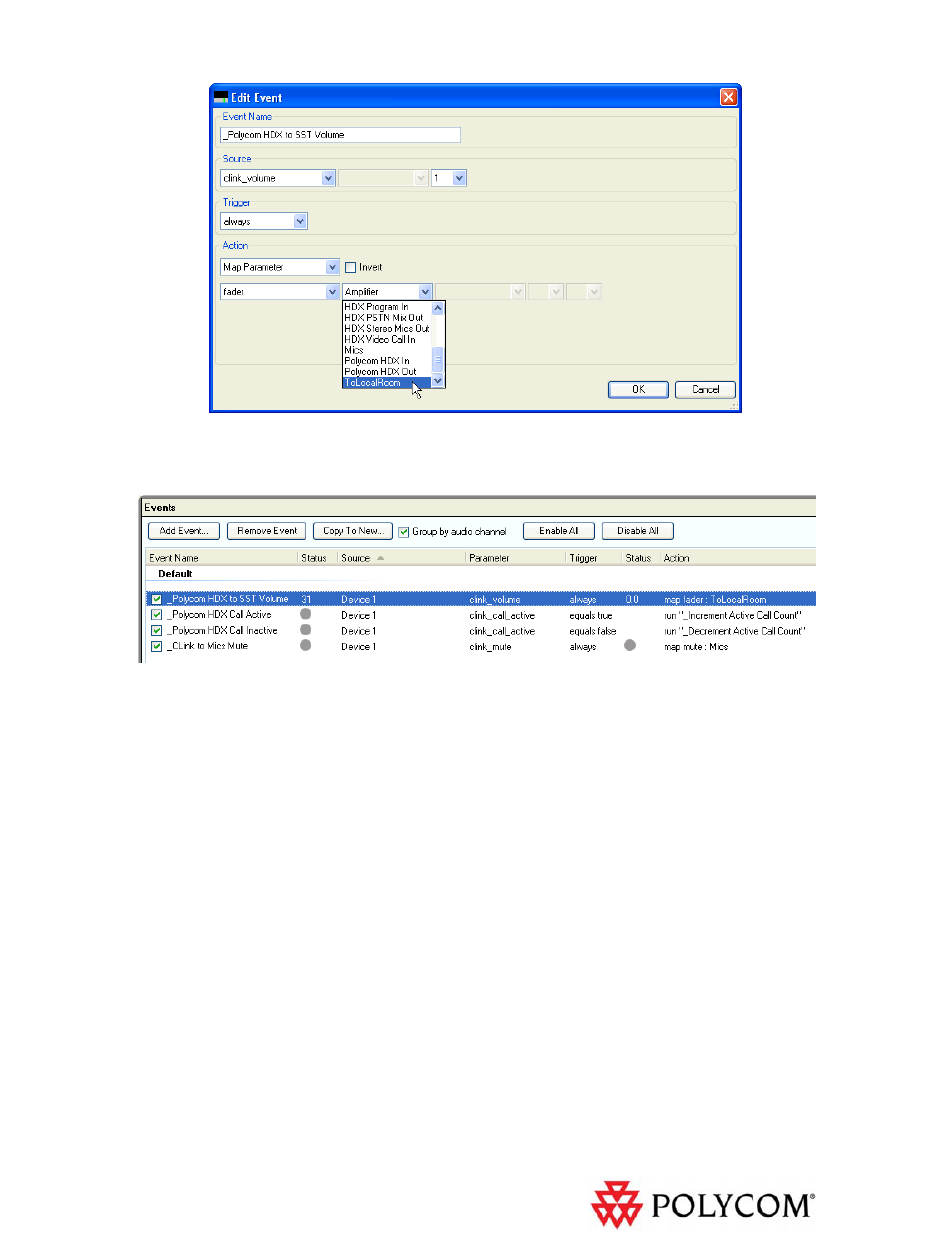

Figure 17 - Editing the volume control event to use the ToLocalRoom group in place of the Amplifier channel.
Click OK to save the event and the result is shown in Figure 18.
Figure 18 - The resulting volume control event after editing and saving the event.
Now if the volume changes on the HDX codec, either via an HDX IR remote or an explicit HDX API command for adjusting
the volume, the ToLocalRoom group within SoundStructure will track that change and, because ToLocalRoom is a group,
changes will adjust the group members: Amplifier and EagleEye. This will automatically make it louder or quieter to
both the audio amplifier channel and to the EagleEye Director.
Confirming the Physical Wiring Matches the Project Wiring
Now that the project is configured properly, the next step is to confirm the physical wiring of the audio to the Amplifier
and to the EagleEye Director. Navigate to the Wiring page and expand the output area as shown in Figure 19. In this
figure the Amplifier is connected to outputs 1 and 2 and the EagleEye Director is connected to outputs 3 and 4.
11
