Paloma PH-28 Installation Instructions

R
WARNING!
!
liquids (adhesives, solvents, paint thinners etc.), and the
vapors they produce are extremely dangerous. DO NOT
water heater or any other appliance. Be sure to read and
ing printed in this manual. Failure to do so can result in
Location -
This pipe cover is for indoor or outdoor
installations and should be installed directly to the bot-
tom of the water heater. The water heater is not included
with the pipe cover assembly.
The water heater must be installed in accordance with
the Use and Care Manual provided with the water heater.
All considerations of the use and care manual along with
any applicable local codes must be followed.
Dimensions and Piping -
proximately 16 inches below the bottom of the water
heater. Piping for water, gas, and connections for elec-
trical should penetrate the wall within 16 inches from
the bottom of the water heater. Provisions should be
made for cut off valves and service unions.

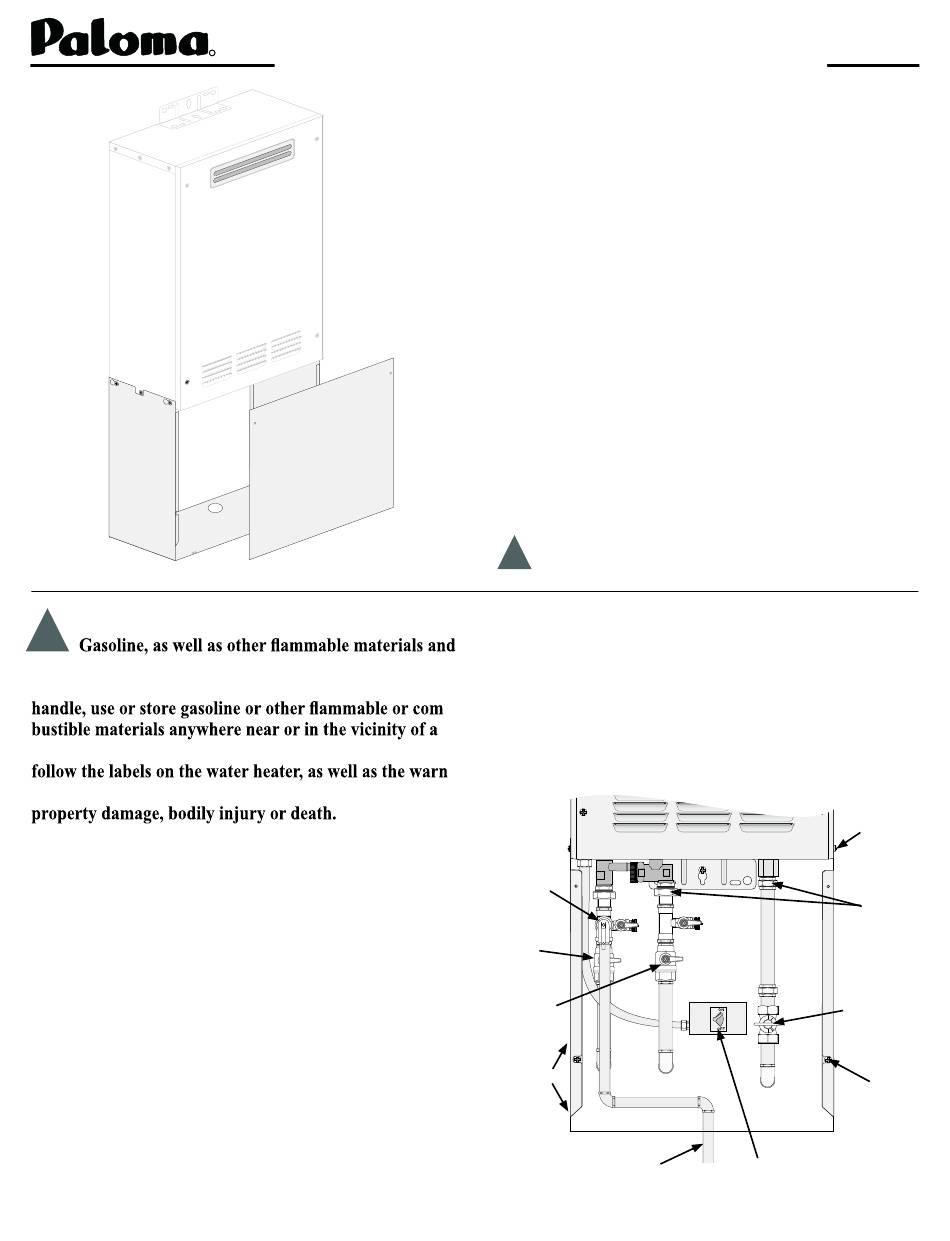

Tankless Water Heater Pipe Cover Assembly

Installation Instructions

Water Heater Not Provided
The box extends ap-
For use with these models of Indoor or Outdoor Tan-
kless Water Heaters;
PH-28 (ROFS/COFS/RIFS/CIFS)
The purpose of this manual is to provide the installer
with the basic instructions necessary to properly install
the pipe cover assembly. This manual assumes that the
installer has basic skills and plumbing knowledge. Local
codes may apply to this installation. All local building,
electrical, and plumbing codes should be followed.
It is very important that all persons who are expected to
install, operate or adjust this pipe cover assembly and/or
water heater, read these instructions along with those
instructions provided with the tankless water heater.
Recognize this symbol as an indication of
!
Important Safety Information!
Refer to the Use and Care Manual provided with
your tankless water heater for the proper installa-
tion procedures and requirments.
-
Typical Installation - Outdoor
-
Relief Valve
Hot Water
Valve
Cold Water
Valve
Pipe Cover
Assembly
Relief
Valve Drain
Follow instructions in
Use and Care provided
with the water heater.
- Figure 1
Water Heater
Power
Disconnect
AP14005 (04/06)
Upper
Mounting
Screws
Unions
Gas
Shut
Off
Wall
Mounting
Screws
(not included)
