Paloma PH-246CWHA Owner's Manual And Installation Instructions

Paloma PH-246CWHA Owner's Manual And Installation Instructions

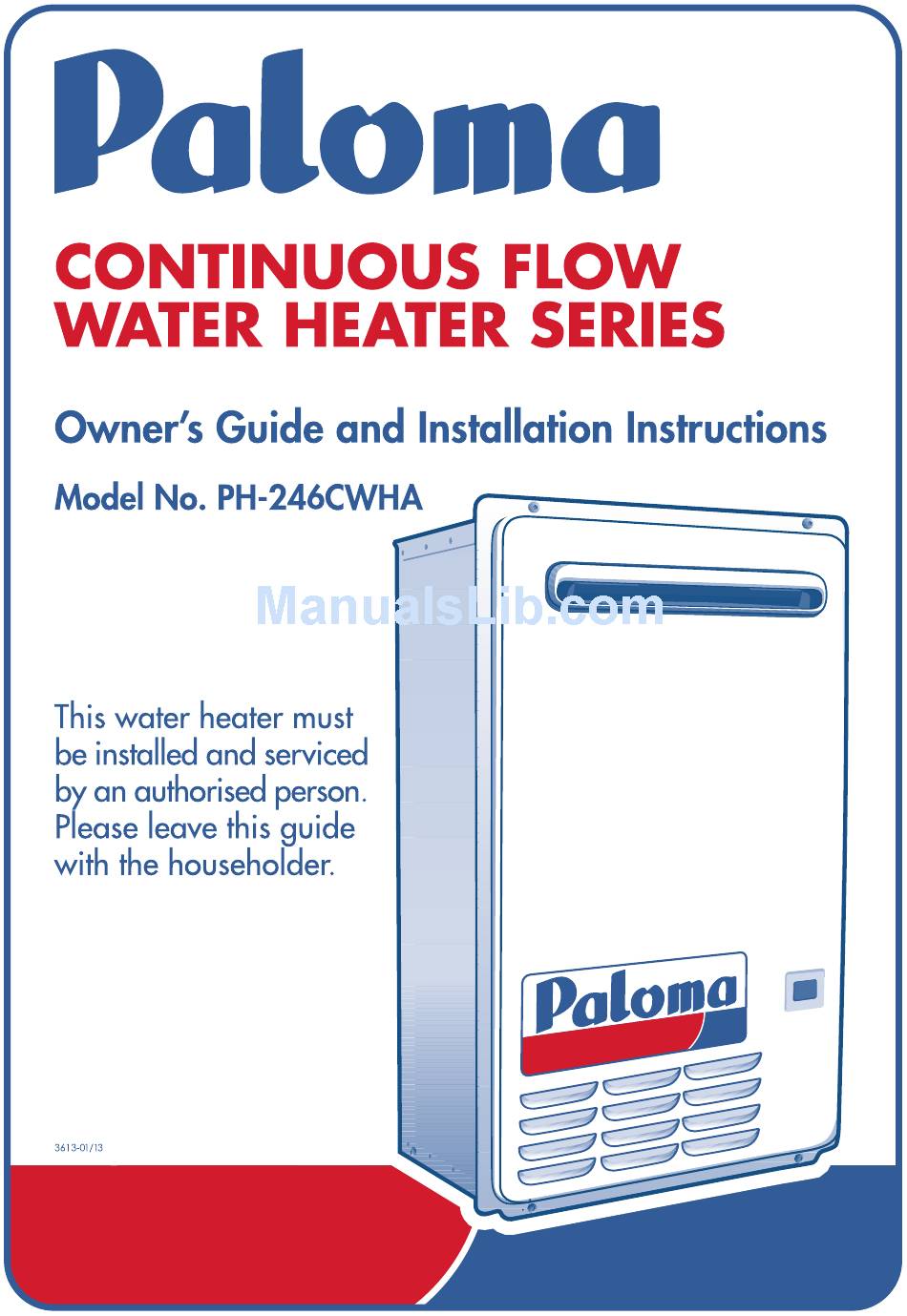

Continuous flow water heater series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PH-246CWHA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Paloma PH-246CWHA

Summary of Contents for Paloma PH-246CWHA

  • Page 2 IMPORTANT • Only a licensed person will give you a Compliance Certificate, showing that the work complies with all the relevant standards. • Make sure you use a licensed person to install this water heater and ask for your Compliance Certificate.

  • Page 3: Table Of Contents

    This water heater may be protected by one or more patents or registered designs in the name of Paloma Co., Ltd. Aber Holdings Ltd is the supplier of the Paloma range of electronic continuous flow gas water heaters, manufactured by Paloma Co., Ltd, a world leader in water heater technology and manufacture.

  • Page 4: About Your Water Heater

    This model extended manufacturer’s warranty (refer to the Paloma warranty on page 77). The water heater has a maximum pre-set outlet temperature setting of: • PH-246CWHA series 60°C Notes: •...
  • Page 5 PH-246CWHA series 55°C Note: The pre-set outlet temperature setting of this water heater cannot be adjusted by the householder. The setting can only be adjusted by the installer, or a Paloma Service Agent. maximum Kitchen controller temperature setting. maximum recommended supply temperature to bathrooms and ensuites.
  • Page 6 If the power supply cord or plug is damaged, it must be replaced by a qualified person in order to avoid a hazard. The power supply cord and plug must be replaced with a genuine replacement part available from Paloma. Phone your nearest Paloma Service Agent to arrange for an inspection.
  • Page 7 Paloma Service Agent to arrange for a service. Note: The five year service and routine replacement of any components, if required, are not included in the Paloma warranty. A charge will be made for this work. Only genuine replacement parts should be used on this water heater.
  • Page 8 ABOUT YOUR WATER HEATER CIRCULATED HOT WATER FLOW AND RETURN SYSTEM A Paloma PH-246CWHA series continuous flow water heater can be installed as part of a circulated hot water flow and return system in a building. Notes: • The pre-set outlet temperature setting of the water heater must be set to at least 60°C.
  • Page 9 The frost protection system will be rendered inoperable if electrical power is not available at the water heater. Damage caused by freezing due to the unavailability of power at the water heater is not covered by the Paloma warranty (refer to “Terms of the Paloma Warranty” on page 78.
  • Page 10 ABOUT YOUR WATER HEATER HOW DO I KNOW IF THE WATER HEATER IS INSTALLED CORRECTLY? Installation requirements are shown on pages 45 to 56. The water heater must be installed: • by a qualified person, and • in accordance with the installation instructions, and •...

  • Page 11: Temperature Control

    TEMPERATURE CONTROL CONTROLLERS The Paloma PH-246CWHA series can be installed with Paloma controllers to enable the user to control the temperature of the delivered water from the outlet of the water heater. There are two families of Paloma controllers suitable for installation with this water heater. These are the standard controllers and the Deluxe controllers.

  • Page 12: Temperature Control - Standard

    TEMPERATURE CONTROL – STANDARD STANDARD CONTROLLER FUNCTIONS If one or more controllers are installed, at least one must be on for the water heater to operate. If all controllers are off, the water heater will only deliver cold water. on / off button – This button must be pressed once to turn on the controller.
  • Page 13 TEMPERATURE CONTROL – STANDARD STANDARD CONTROLLER priority light in use light display panel button water volume symbol down button water volume operating light on / off operating light water volume button on / off controller type button K = Kitchen B1 = Bathroom1 B2 = Bathroom2 Note: water volume button, water volume operating light and water volume symbol are on the...
  • Page 14 On a building fitted with a temperature limiting device such as a tempering valve and where an PH-246CWHA series water heater is installed without a separate untempered hot water line to the kitchen, laundry or other non-ablution area, although the Kitchen controller will be able to display temperatures above 50°C and the water leaving the water heater will be at the set temperature,...
  • Page 15 The temperature adjustment is made by pressing the up ( ) button or down ( ) button. • The maximum temperature setting for the controllers are: Kitchen Bathroom PH-246CWHA series 55°C 50°C • Each press of the up ( ) button will increase the temperature setting by one increment.
  • Page 16 It has a minimum temperature setting of 37°C and a maximum temperature setting of: • PH-246CWHA series 55°C The Kitchen controller does not have priority if a Bathroom controller is on. Notes on the Kitchen controller: •...
  • Page 17 PH-246CWHA series 50°C b e f o r e u s e Select the temperature setting pri o ri ty i n u se Press the up ( ) button or down ( ) button.
  • Page 18 The Kitchen controller will gain priority if it is on and the temperature setting can be up to: PH-246CWHA series 55°C If a hot tap is open in another bathroom, the water will be delivered at this temperature.
  • Page 19 TEMPERATURE CONTROL – STANDARD To operate a Bathroom controller: Turn off the Kitchen controller If a temperature setting is displayed and the priority light is not glowing, it is advised to turn off the Kitchen controller. Refer to the notes on the Bathroom controllers on page 17. Turn on the Bathroom controller pri ority i n us e...
  • Page 20 TEMPERATURE CONTROL – STANDARD WATER VOLUME FUNCTION – STANDARD CONTROLLER The water volume function is designed to warn, by a beeping sound, that a certain volume of water has been delivered from the water heater. It does not stop either the flow of or the heating of water.
  • Page 21 TEMPERATURE CONTROL – STANDARD Turn off the alarm pri ority i n use Press the water volume button to turn off the alarm. The water volume operating light goes out and ° ° ° ° C 0 x10l is displayed momentarily on the controller. The temperature setting of the controller with priority is then displayed.

  • Page 22: Temperature Control - Deluxe

    TEMPERATURE CONTROL – DELUXE DELUXE CONTROLLER FUNCTIONS If one or more Deluxe controllers are installed, at least one must be on or the bath fill function activated for the water heater to operate. If all Deluxe controllers and the bath fill function are off, the water heater will only deliver cold water.
  • Page 23 TEMPERATURE CONTROL – DELUXE Bath fill water volume display panel – The selected bath fill water volume is displayed in litres on all Deluxe controllers. The selected bath fill water volume is displayed whenever the Bath Fill mode is on (refer to “Bath Fill Mode” on page 31) or when the bath fill water volume is being adjusted and the Bath Fill mode is off.
  • Page 24 TEMPERATURE CONTROL – DELUXE VOICE PROMPT AND OPERATING TONE The Deluxe controllers have a series of voice prompts and operating tones which sound during certain operations. The voice prompts and operating tones sound from all Deluxe controllers, regardless of which Deluxe controller is being operated at the time.
  • Page 25 TEMPERATURE CONTROL – DELUXE Adjusting the Volume of the Voice Prompt and Operating Tone The volume of the voice prompt and the operating tone can be adjusted to a level comfortable for you. The volume of the voice prompt and the operating tone can be adjusted independently of each other.
  • Page 26 On a building fitted with a temperature limiting device such as a tempering valve and where an PH-246CWHA series water heater is installed without a separate untempered hot water line to the kitchen, laundry or other non-ablution area, although the Kitchen Deluxe controller will be able to display temperatures above 50°C and the water leaving the water heater will be at the set...
  • Page 27 TEMPERATURE CONTROL – DELUXE TEMPERATURE ADJUSTMENT – DELUXE CONTROLLERS • A controller must be on with the ACTIVE indicator displayed to be able to adjust the temperature setting. • The temperature adjustment is made by pressing the up ( ) button or down ( ) button. •...
  • Page 28 It has a minimum temperature setting of 37°C and a maximum temperature setting of: • PH-246CWHA series 55°C The Kitchen Deluxe controller does not have priority (ACTIVE light is off) if a Bathroom Deluxe controller is on.
  • Page 29 BATH FILL ON/OFF The Kitchen controller temperature setting will be displayed. This is the lower of the previous setting and: PH-246CWHA series 50°C Select the temperature setting ACTIVE Press the up ( ) button or down ( ) button. °C...
  • Page 30 Bathroom Deluxe controller in the other bathroom. The Kitchen Deluxe controller will gain priority (ACTIVE light glows) if it is on and the temperature setting can be up to: PH-246CWHA series 55°C If a hot tap is open in another bathroom, the water will be delivered at up to 50°C if a temperature limiting device is installed in the hot pipe to the bathroom or up to 55°C if a...
  • Page 31 TEMPERATURE CONTROL – DELUXE To operate a Bathroom Deluxe controller: Turn off the Kitchen Deluxe controller If a temperature setting is displayed and the ACTIVE ACTIVE and ON / OFF operating lights are not °C 8 8 8 8 glowing, it is advised to turn off the Kitchen BATH (l) Deluxe controller.
  • Page 32 TEMPERATURE CONTROL – DELUXE BATH FILL MODE The Bath Fill mode is designed to allow the water heater to deliver a selected volume of water at a selected temperature. The Bath Fill mode commences when the BATH FILL button is on and a hot tap is opened.
  • Page 33 TEMPERATURE CONTROL – DELUXE Close the front panel on the Deluxe controller. Rheem Turn on the Bath Fill mode Press the BATH FILL button. ACTIVE On all Deluxe controllers: °C 1 2 0 The BATH FILL operating light will glow. BATH (l) The bath fill temperature setting will appear on the temperature display panel.
  • Page 34 TEMPERATURE CONTROL – DELUXE Bath Fill Mode – Explanatory Notes To operate the Bath Fill mode: Turn off all Deluxe controllers It is advised to turn off all Deluxe controller(s) ACTIVE before activating the Bath Fill mode. °C 1 2 0 BATH (l) Refer to the notes on the Bathroom Deluxe controllers on page 29.
  • Page 35 TEMPERATURE CONTROL – DELUXE Set the bath fill water volume Press the BATH FILL VOLUME (up button) or the BATH FILL VOLUME (down button). ACTIVE The first press of either the BATH FILL VOLUME °C 1 2 0 (up button) BATH FILL VOLUME BATH (l)
  • Page 36 TEMPERATURE CONTROL – DELUXE Open the hot tap The operating light will glow Deluxe ACTIVE controllers. °C 1 2 0 BATH (l) Measurement of the water flow at the water heater will commence when the hot tap is opened. BATH FILL ON/OFF Notes: If a second hot tap is opened when the Bath Fill...
  • Page 37 TEMPERATURE CONTROL – DELUXE Turning Off Bath Fill Mode During Its Operation The bath fill operation can be interrupted by pressing the BATH FILL button before completion of the bath fill operation. If it is necessary to turn off the Bath Fill mode before the operation is complete, during Step 7: •...
  • Page 38 TEMPERATURE CONTROL – DELUXE Notes on the Bath Fill mode: • The Bath Fill mode can be set, turned on and turned off at any of the Deluxe controllers. • The Deluxe controllers do not require to have priority (ACTIVE light glowing) or be on in order to set the bath fill water volume or bath fill temperature or to turn the BATH FILL button on.
  • Page 39 TEMPERATURE CONTROL – DELUXE Opening a Second Hot Water Tap during Bath Fill Operation • The bath fill water volume is measured as the water flows through the water heater. If more than one hot tap is open, the Bath Fill mode will measure the total water volume drawn from all taps and the expected water volume from the first tap will be decreased.
  • Page 40 TEMPERATURE CONTROL – DELUXE Operation of the Bath Fill mode whilst a Deluxe Controller is ACTIVE It is recommended the Bath Fill mode be set and operated with the Deluxe controllers turned off (refer to Step 1 on page 33). However, if a Deluxe controller is ACTIVE during the setting and operation of the Bath Fill mode, then the following additional events occur: During Step 3, when the bath fill temperature is being set...

  • Page 41: Water Supplies

    WATER SUPPLIES This water heater must be installed in accordance with this advice to be covered by the Paloma warranty. This water heater is manufactured to suit the water conditions of most public reticulated water supplies. However, there are some known water chemistries which can have detrimental effects on the water heater and its operation and / or life expectancy.

  • Page 43: Save A Service Call

    Check the items below before making a service call. You will be charged for attending to any condition or fault, which is not related to manufacture or failure of a part (refer to “Terms of the Paloma Warranty” on page 78). NO DISPLAY ON THE CONTROLLER •...
  • Page 44 • Collector area is too small For most installations, the number of solar collectors recommended in Paloma literature has been proven to provide the required solar energy to meet the average family needs. However, in some circumstances, it may be necessary to install an additional solar collector.
  • Page 45 If the error code persists, take note of the numerical code, turn off the hot tap and turn off the controller(s). Phone your nearest Paloma Service Agent to arrange for inspection. HIGHER THAN EXPECTED GAS BILLS Should you at any time, feel your gas account is higher than expected, we suggest you check the following points: •...

  • Page 46: Installation - Water Heater

    The PH-246CWHA series water heater may be installed as an in-series gas booster to a solar water heater. For information relating to the function and operation of the solar water heater, refer to the Owner’s Guide and Installation Instructions supplied with the solar water heater.
  • Page 47 INSTALLATION – WATER HEATER underside, pointing toward the ground. The back of the water heater can be either against a wall or supported by a frame. Note: The water heater must be well secured to the wall or frame using two screws each at the top and bottom of the unit (refer to page 53 for mounting hole positions).
  • Page 48 Damage to the water heater caused by freezing of the pipe work to or from the water heater is not covered under the Paloma warranty. Refer to AS/NZS 3500.4 for precautions to be taken for installations in frost prone areas. The water heater is not suitable for installation in areas where the ambient temperature falls below -20°C (including wind chill factor).
  • Page 49 Refer to “Water Temperature Diagrams” on page 52. Gas Booster for a Solar Water Heater The temperature limiting device used with an PH-246CWHA series in-series gas booster as part of a solar water heater installation must have the additional capability of receiving a hot water supply temperature of up to 99°C if the solar water heater does not have an over temperature protection...
  • Page 50 INSTALLATION – WATER HEATER Warning: Temperature controllers must not be fitted to this water heater if it is installed as an in- series gas booster with a solar water heater system or if a Water Star water heater is installed because water at a temperature much higher than the controller setting can be delivered.
  • Page 51 Two Temperature Zones Using a Temperature Limiting Device CIRCULATED HOT WATER FLOW AND RETURN SYSTEM A Paloma PH-246CWHA series continuous flow water heater can be installed as part of a circulated hot water flow and return system in a building.
  • Page 52 INSTALLATION – WATER HEATER Recirculated Hot Water Flow and Return – Continuous Flow Gas Water Heater from solar storage tank Circulated Hot Water Flow and Return In-series Gas Booster as part of a Solar Water Heater Installation REDUCING HEAT LOSSES The hot water line from the water heater and the pipe work between the solar storage tank, if one is installed, and the in-series gas booster must be insulated in accordance with the requirements of AS/NZS 3500.4.
  • Page 53 Note: The maximum outlet temperature is 55°C in a domestic situation. The maximum programmable temperature is 60°C. No Controllers Notes: • Temperature Limiting Devices – refer to “Hot Water Delivery” on page 48. • The factory pre-set outlet temperature setting is: PH-246CWHA series 55°C...
  • Page 54 INSTALLATION – WATER HEATER DIMENSIONS AND TECHNICAL DATA Model PH-246CWHA series Rated delivery litres / min (@ 40°C rise) Recovery litres / min (@ 25°C rise) Mass Empty (unpackaged) Hourly Gas Gas Details Test Point Gas Pressure (kPa) Min. Gas Pressure Max.
  • Page 55 INSTALLATION – WATER HEATER DIMENSIONS – STANDARD CONTROLLERS Kitchen Controller (Standard) Bathroom Controller (Standard)
  • Page 56 INSTALLATION – WATER HEATER DIMENSIONS – DELUXE CONTROLLERS Deluxe Controller – Cover Closed Deluxe Controller – Cover Open...
  • Page 57 INSTALLATION – WATER HEATER TYPICAL INSTALLATION – OUTDOOR LOCATION...

  • Page 58: Connections - Plumbing

    • PH-246CWHA series water heaters when installed as an in-series gas booster to a solar water heater do not need to be installed with a solar transfer valve if the maximum solar preheat water heater does not exceed 80°C.
  • Page 59 Disconnect the water heater after the isolation valve to prevent the risk of serious damage to the gas control. The Paloma warranty does not cover damage of any nature resulting from failure to observe this precaution. Refer to rating label for gas types and pressures.

  • Page 60: Connections - Electrical

    CONNECTIONS – ELECTRICAL All electrical work and permanent wiring must be carried out by a qualified person and in accordance with the Wiring Rules AS/NZS 3000 and local authority requirements. Warning: Temperature controllers must not be fitted to this water heater if it is installed as an in- series gas booster with a solar water heater system or if a Water Star water heater is installed because water at a temperature much higher than the controller setting can be delivered.

  • Page 61: Installation - Controllers

    INSTALLATION – CONTROLLERS CONTROLLERS The Paloma PH-246CWHA series can be installed with Paloma controllers to enable the user to control the temperature of the delivered water from the outlet of the water heater. There are two families of Paloma controllers suitable for installation with this water heater. These are the standard controllers and the Deluxe controllers.
  • Page 62 Outdoors. The controllers are not weatherproof. KITCHEN CONTROLLER The standard Kitchen controller (Paloma MC-101) or Kitchen Deluxe controller (Paloma MC-115) is to be installed in the kitchen or laundry only. It has a minimum temperature setting of 37°C and a maximum temperature setting of: •...
  • Page 63 INSTALLATION – CONTROLLERS Wiring installation: Penetrate the wall with a 30-35 mm hole at the controller location. Install the Kitchen controller cable between the location of the controller and the water heater. Remove the base plate from the controller. Draw the cable through the central hole in the base plate. Fix the base plate to the wall using suitable screws and wall anchors.
  • Page 64 INSTALLATION – CONTROLLERS If it is necessary to have an exposed wiring installation, follow this procedure omitting Steps 1 and 4, and make an opening in the thin section in the underside of the controller to accommodate the cable (as shown in the diagram), prior to Step 6. controller suitable wall anchors...
  • Page 65 INSTALLATION – CONTROLLERS BATHROOM1 AND BATHROOM2 CONTROLLERS If only one Bathroom controller is to be installed, the standard Bathroom1 Controller (Paloma SC- 101) or the Bathroom1 Deluxe controller (Paloma SC-115V) must be used. If two Bathroom controllers are to be installed, one must be a standard Bathroom1 controller and the other must be a standard Bathroom2 controller (Paloma SC-101-S) or one must be a Bathroom1 Deluxe controller and the other must be a Bathroom2 Deluxe controller (Paloma SC-115VS).
  • Page 66 INSTALLATION – CONTROLLERS Wiring installation: Penetrate the wall with a 30-35 mm hole at the controller location. Install the supplied cable between the location of the controller and the water heater. Remove the base plate from the controller. Peel off one side of the adhesive paper from the foam packing and adhere to the back face of the base plate.
  • Page 67 INSTALLATION – CONTROLLERS CONNECTING THE CONTROLLER(S) TO THE WATER HEATER To connect the controller(s) to the water heater: water heater Ensure the electrical supply to the water heater is switched off. Unscrew and gently remove the electrical cover from the underside of the water heater. Draw the cable(s) through the electrical cover.

  • Page 68: Commissioning

    COMMISSIONING All water heaters are tested and adjusted before dispatch from the factory, however further adjustments may become necessary because of local conditions. TO TURN ON THE WATER HEATER • Open all of the hot taps in the house (don’t forget the shower). •...
  • Page 69 COMMISSIONING Gas Inlet Test Point Pressure To check the gas inlet pressure: Close any hot taps and ensure the burners are not operating. Close the gas isolation valve at the gas inlet to the water heater. Locate the gas inlet test point on the gas connection to the water heater.
  • Page 70 COMMISSIONING BURNER GAS PRESSURE It is necessary to check the burner gas pressure at both the minimum and maximum operational settings. To check and if necessary adjust the operational gas pressures, the electrical supply to the water heater must be switched on, the burners ignited and hot water must be flowing from a hot tap.
  • Page 71 COMMISSIONING Notes: • If the burners extinguish and error code 11 or 12 starts to flash on the LED display: release the MIN and adjuster buttons close the hot tap clear the error code (refer to “Clearing Error Code” on page 70) re-commence the procedure from Step 8.
  • Page 72 PRE-SET OUTLET TEMPERATURE SETTING The factory pre-set outlet temperature setting of the water heater is: • PH-246CWHA series 55°C If a temperature controller is connected to the water heater, this will override the pre-set outlet temperature setting and the maximum temperature setting will be:...
  • Page 73 The temperature settings will be displayed on the LED display. The pre-set outlet temperature settings are: • PH-246CWHA series 40°C, 43°C, 50°C, 55°C, 60°C Note: Maximum temperature adjustable by dip switches is 60°C. To change to 75°C it will require a special gas type connector (GTC).
  • Page 74 COMMISSIONING OUTLET TEMPERATURE COMPENSATION ADJUSTMENT The maximum outlet temperature the water heater may be adjusted to compensate for temperature losses in the pipe work between the water heater outlet and sanitary fixtures. Warnings • After adjustment, the water temperature from the first tap in the hot water pipe work after the water heater used for personal hygiene purposes, such as in a bathroom or ensuite, MUST NOT exceed: 48°C if a temperature controller is connected to the water heater, or...
  • Page 75 COMMISSIONING Note: The pre-set outlet temperature setting of this water heater must be set at 48°C prior to the commencement of this procedure. This procedure cannot be performed if the pre-set outlet temperature is set at 43°C or 45°C. Refer to “To Check or Adjust the Pre-set Outlet Temperature Setting”...
  • Page 76 • Damage caused by freezing due to the unavailability of power at the water heater is not covered by the Paloma warranty (refer to “Terms of the Paloma Warranty” on page 77). • If the power has been switched off to the water heater and there is a risk of freezing, then it is...

  • Page 77: Draining The Water Heater

    DRAINING THE WATER HEATER To drain the water heater: • Turn off the water heater (refer to “Turn Off The Water Heater” on page 75). • Open a hot tap (preferably the shower outlet). • Unscrew the two drain plugs, one each at the cold water inlet and hot water outlet, on the underside of the water heater.

  • Page 78: Warranty

    Notes: • Aber Holdings Ltd is the supplier of Paloma electronic continuous flow gas water heaters, manufactured by Paloma Co., Ltd, a world leader in water heater technology and manufacture. • Aber reserves the right to transfer fully functional components from the defective water heater to the replacement water heater if required.
  • Page 79 WARRANTY EXCLUSIONS 1. REPAIR AND REPLACEMENT WORK WILL BE CARRIED OUT AS SET OUT IN THE PALOMA WATER HEATER WARRANTY, HOWEVER THE FOLLOWING EXCLUSIONS MAY CAUSE THE WATER HEATER WARRANTY TO BECOME VOID AND MAY INCUR A SERVICE CHARGE AND / OR COST OF PARTS.
  • Page 80 Revision Date: 2013 January (31-76787-00)
