GrowSpan Gothic Premium H Series Instructions Manual
  1. Manuals
  2. Brands
  3. GrowSpan Manuals
  4. Lawn and Garden Equipment
  5. Gothic Premium H Series
  6. Instructions manual

GrowSpan Gothic Premium H Series Instructions Manual

High tunnels
Hide thumbs Also See for Gothic Premium H Series:

Advertisement

Quick Links

Download this manual
GrowSpan

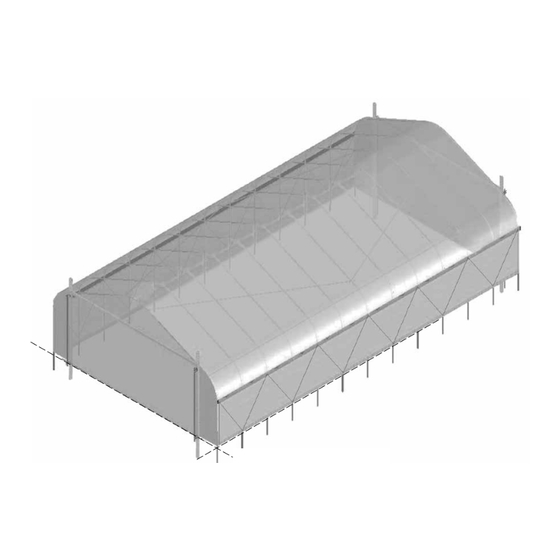

Photo may show a different but similar model. These instructions include information for buildings equipped with either
drop-down side curtains or roll-up side curtains. Verify that you are completing the correct steps for your building. The
cover installation steps for buildings with a film cover or a 5.2 oz fabric cover are the same.
©2019
All Rights Reserved. Reproduction
is prohibited without permission.
Revision date: 09.20.19
GROWSPAN
Gothic Premium High Tunnels
™
(All H Models)
Ground Level
GOTHIC PREMIUM HIGH TUNNELS
™
STK#
DIMENSIONS
108185H
26' W x 14' H x 36' L
108186H
26' W x 14' H x 48' L
108187H
26' W x 14' H x 60' L
108188H
26' W x 14' H x 72' L
108189H
26' W x 14' H x 96' L
1
