Bloomfield Koffee-King 8541 Owner's Manual

Modular brewing systems
Hide thumbs Also See for Koffee-King 8541:

Advertisement

Table of Contents

Wunder-Bar
2060 Cessna Drive, Suite 100
Vacaville, CA 95688 U.S.A
Phone: (707) 448-5151
Fax (707) 448-1521
www.wunderbar.com
75804
p/n 2M-
Rev. K

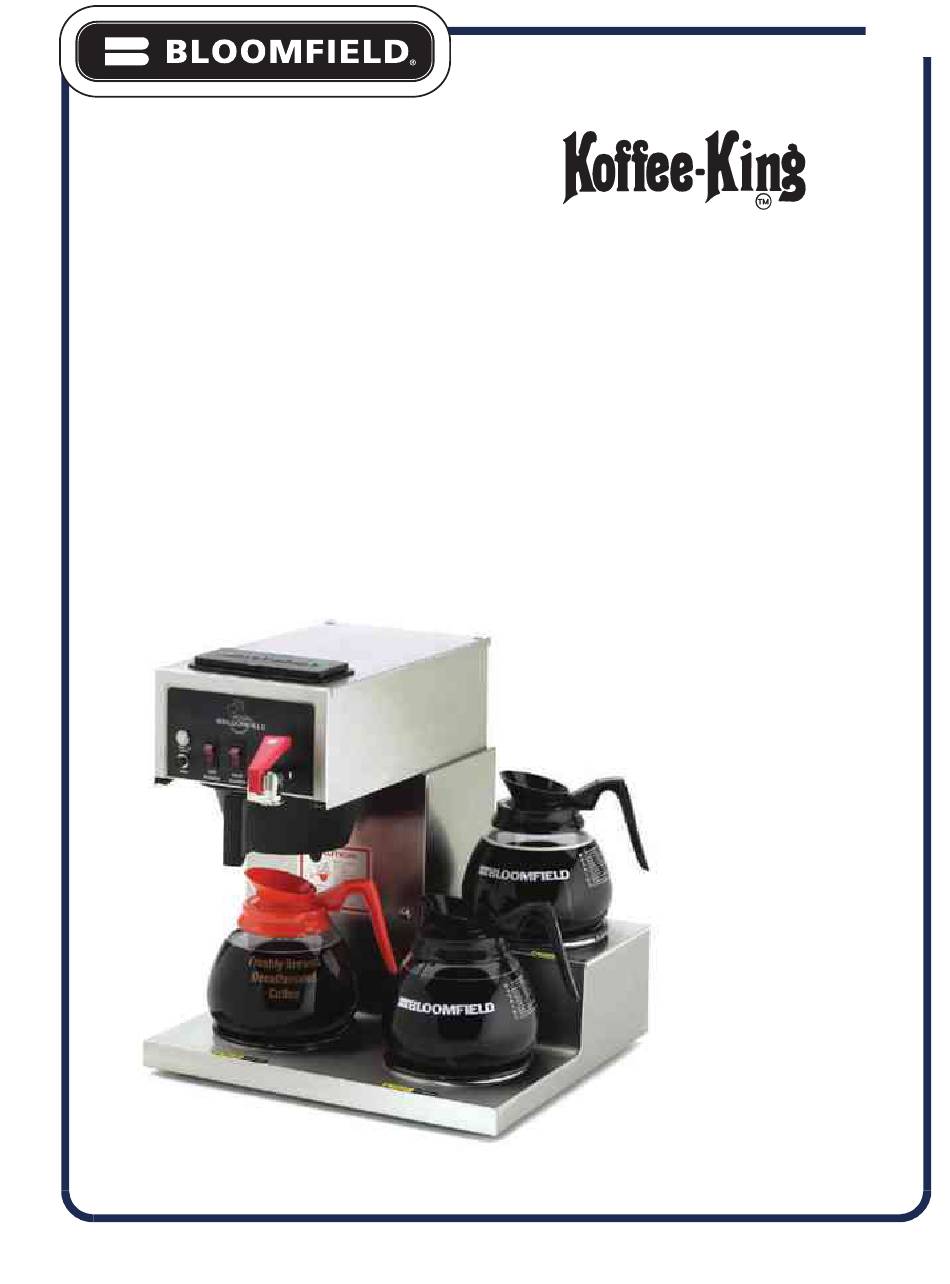

OWNERS MANUAL
MODULAR
BREWING SYSTEMS
MODELS
POUR OVER
AUTOMATIC
UNITS
UNITS
8542
8541
8543
8573
8571
Includes:
Installation
Use & Care
Servicing Instructions

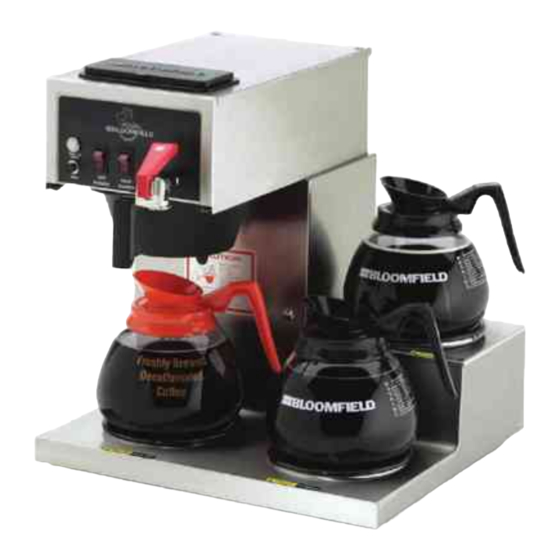

Model 8574 Brewer
with optional
8900-Series Glass Decanters
For
AUTOMATIC
UNITS
WITH FAUCET
8540
8572
8574
13
M611
0610
611

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Koffee-King 8541 and is the answer not in the manual?

Questions and answers

Related Manuals for Bloomfield Koffee-King 8541

Summary of Contents for Bloomfield Koffee-King 8541

  • Page 1 OWNERS MANUAL Wunder-Bar 2060 Cessna Drive, Suite 100 Vacaville, CA 95688 U.S.A Phone: (707) 448-5151 Fax (707) 448-1521 www.wunderbar.com MODULAR BREWING SYSTEMS MODELS POUR OVER AUTOMATIC AUTOMATIC UNITS UNITS UNITS WITH FAUCET 8542 8541 8540 8543 8573 8572 8571 8574 Includes: Installation Use &...

  • Page 2: Warranty Statement

    WARRANTY STATEMENT All electrical equipment manufactured by BLOOMFIELD is removed or unauthorized service personnel perform service. warranted against defects in materials and workmanship for a period of (1 year labor, two year parts) from the date upon the limitations in this warranty. Seller’s obligation under...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS WARRANTY STATEMENT Thank You for purchasing this SPECIFICATIONS FEATURES & OPERATING CONTROLS PRECAUTIONS & GENERAL INFORMATION AGENCY APPROVAL INFORMATION INSTALLATION INSTRUCTIONS OPERATION BREWING COFFEE CLEANING INSTRUCTIONS TROUBLESHOOTING SUGGESTIONS SERVICING INSTRUCTIONS EXPLODED VIEWS & PARTS LISTS WIRING DIAGRAMS SPECIFICATIONS MODEL TYPE...

  • Page 4: Features & Operating Controls

    FEATURES AND OPERATING CONTROLS IL1695 Fig. 1 Features & Operating Controls...

  • Page 5: Precautions & General Information

    PRECAUTIONS AND GENERAL INFORMATION WARNING: ELECTRIC SHOCK HAZARD WARNING WARNING: INJURY HAZARD WARNING WARNING: ELECTRIC SHOCK HAZARD WARNING WARNING: BURN HAZARD WARNING CAUTION: EQUIPMENT DAMAGE Installation Instructions CAUTION: BURN HAZARD AGENCY APPROVAL INFORMATION E9253 STD 4...

  • Page 6: Installation Instructions

    INSTALLATION INSTRUCTIONS READ THIS CAREFULLY BEFORE STARTING THE INSTALLATION IMPORTANT: REFER TO EXPLODED VIEWS PAGES 18 thru 22 FOR COMPONENT NAMES/NUMBERS LEVELING THE UNIT CAUTION: EQUIPMENT DAMAGE CAUTION: PLUMBER’S INSTALLATION INSTRUCTIONS UNSTABLE POTABLE WATER, COLD EQUIPMENT HAZARD WATER NOTE:...
  • Page 7 INSTALLATION INSTRUCTIONS (continued) NOTE: COPPER LOOPS OR FLEX LINES SOLENOID (PROVIDED BY STRAINER PLUMBER) WASHER WARNING: WARNING SHUT-OFF VALVE SHOCK HAZARD (PROVIDED BY WATER INLET PLUMBER) FITTING FLOW WATER SUPPLY IL1652 Fig. 2 Water Supply Installation New-style shown IMPORTANT: water hammer arrester IMPORTANT: ELECTRICIAN’S INSTALLATION INSTRUCTIONS IMPORTANT:...

  • Page 8: Operation

    OPERATION IL1697 Fig. 4 Brewer Operation Diagram IMPORTANT: START-UP • • • BEFORE THE WATER TANK MUST is NOT COVERED BY BE FILLED WARRANTY IL1618...
  • Page 9 OPERATION (continued) WATER HEATER HI-LIMIT THERMOSTAT THERMOBULB HEATER THERMOSTAT ELEMENT Fig. 5 Heat Control Diagram WATER FLOW POUR-OVER FEATURE MANUAL POUR-OVER BASIN BREW AUTOMATIC OPERATION TANK SOLENOID MANUAL POUR-OVER BASIN FAUCET BYPASS BREW TANK SOLENOID HOT WATER FAUCET FAUCET SHUT-OFF FAUCET VALVE FAUCET...

  • Page 10: Brewing Coffee

    BREWING COFFEE PREPARATION CAUTION: BURN HAZARD PAPER FILTER BREW CHAMBER IL1605 Fig. 7 Brew Chamber B. POUR-OVER OPERATION CAUTION: NOTE: BURN HAZARD EMPTY CAUTION: BURN HAZARD C. AUTOMATIC OPERATION EMPTY NOTE:...

  • Page 11: Cleaning Instructions

    CLEANING INSTRUCTIONS PROCEDURE: Clean Coffee Brewer CAUTION: BURN HAZARD CAUTION: SHOCK HAZARD IMPORTANT: GASKET SPRAY DISK LIFT EARS UP TURN LEFT TO REMOVE IL1599 Fig. 8 Cleaning...

  • Page 12: Troubleshooting Suggestions

    TROUBLESHOOTING SUGGESTIONS SYMPTOM POSSIBLE CAUSE SUGGESTED REMEDY Check power supply cord Brewer unplugged or circuit breaker tripped Check / reset circuit breaker Thermostat set too low Set for desired temperature Allow to cool Hi-Limit thermostat tripped Reset hi-limit (8786, 8788) Water won’t heat Examine wiring &...

  • Page 13: Servicing Instructions

    SERVICING INSTRUCTIONS ACCESS PANELS CAUTION: SHOCK HAZARD WARMER PLATE TOP PANEL TOP / REAR PANEL TIMER ACCESS BUTTON PLUG FRONT PANEL SOLENOID DOOR WARMER PLATE RETAINER NUT BUTTON PLUG Fig. 9 Access Panels...
  • Page 14 SERVICING INSTRUCTIONS (continued) TEMPERATURE ADJUSTMENT CAUTION: SHOCK HAZARD THERMOSTAT DIAL-TYPE THERMOMETER IN VENT HOLE ADJUSTING SHAFT IL1607 TANK LID ASSEMBLY NOTE: Fig. 10 Checking and Adjusting Brew Temperature IMPORTANT: BOILING POINT OF WATER IDEAL BREWING TEMPERATURE MAXIMUM TEMPERATURE SETTING IL1606 ELEVATION (meters above sea level) Fig.
  • Page 15 SERVICING INSTRUCTIONS (continued) TIMER ADJUSTMENT IMPORTANT: REMOVE TANK LID ASSEMBLY IMPORTANT: DO NOT OVER-TIGHTEN REPLACE THERMOSTAT IMPORTANT:...
  • Page 16 SERVICING INSTRUCTIONS (continued) IMPORTANT: REPLACE HEATING ELEMENT REPLACE SOLENOID BYPASS OUTLET WHITE CLINCH NOTE RING IMPORTANT: METAL FITTING #86660 WRENCH WRENCH METAL FITTING CLINCH RING SLIDE WRENCH BETWEEN VALVE AND HOSE FITTING PRESS CLINCH RING TOWARD METAL FITTING TO RELEASE IL1699 Fig.
  • Page 17 SERVICING INSTRUCTIONS (continued) REPLACE TIMER ASSEMBLY IMPORTANT: REPLACE HOT WATER FAUCET COIL NOTE: REPAIR HOT WATER FAUCET REPLACE BREW READY LIGHT or BREW BUTTON...
  • Page 18 SERVICING INSTRUCTIONS (continued) PROCEDURE: Delime the Water Tank CAUTION: CHEMICAL BURN HAZARD IMPORTANT: IMPORTANT: NOTE: NOTE:...
  • Page 19 Koffee-King™ EXPLODED VIEW & PARTS LIST CABINET & RELATED COMPONENTS IL1700...

  • Page 20: Exploded Views & Parts Lists

    Koffee-King™ EXPLODED VIEW & PARTS LIST (continued) ITEM PART NO. DESCRIPTION USED ON 2D-70090 COVER PLATE, WARMER, BLACK, 1/4-28 STUD ALL, MADE IN USA 2D-Z15630 PLATE COVER WARMER, 1/4-20 STUD ALL, MADE IN CHINA 2C-70098 CLIP, PANEL RETAINING 2C-70132 NUT, #8SMS, TINNERMAN (not shown) 2K-70229 BUSHING, HEYCO 2I-70139...
  • Page 21 Koffee-King™ EXPLODED VIEW & PARTS LIST (continued) HOT WATER TANK ASSEMBLY ALT. GREY N.L.A IL1701 ITEM PART NO. DESCRIPTION USED ON 2C-70134 HOLD-DOWN STRAP 2C-73457 NUT, HEX 8-32 KEPS WS-8512-51 THERMOSTAT (BLACK BODY - INCL. SEAL & MOUNTING SCREWS) N.L.A THERMO (ALT) (GRAY BODY - INCL.
  • Page 22 Koffee-King™ EXPLODED VIEW & PARTS LIST (continued) INTERNAL PLUMBING COMPONENTS IL1702 ITEM PART NO. DESCRIPTION USED ON 2V-70104 FORMED TUBE, FAUCET OUTLET ASSEMBLY 10-7/8" LONG 8540, 8572, 8574 2V-70111 FORMED TUBE, FAUCET COIL INLET ASSEMBLY 8540, 8572, 8574 2E-70451 ADAPTER, 1/4" MALE FLARE x 1/8" FPT BRASS 8540, 8572, 8574 2V-70352 VALVE, FAUCET SHUT OFF, NEEDLE SEAT...
  • Page 23 Koffee-King™ EXPLODED VIEW & PARTS LIST (continued) ELECTRICAL COMPONENTS IL1703 ITEM PART NO. DESCRIPTION USED ON 2N-70091UL HEATING ELEMENT, WARMER 120V 100W 2N-70635UL ELEM WMR, 100W @240/85W @220 UK & EU 230V UNITS 2E-72946 SWITCH, WARMER ON/OFF 120V 2E-70247 SWITCH ON OFF LTD BLACK UK &...

  • Page 24: Wiring Diagrams

    Koffee-King™ WIRING DIAGRAMS HI-LIMIT TIMER THERMOSTAT LOWER UPPER WARMER WARMER ELEMENT BLACK BLACK GREEN WHITE WHITE WHITE WHITE BLACK BLACK BLACK MODEL NUMBER SOLENOID READY BREW WARMER WARMER 8540 and 8541 LIGHT SWITCH SWITCH SWITCH MODEL 8543 ONLY HI-LIMIT THERMOSTAT LOWER UPPER WARMER...
  • Page 25 Koffee-King™ WIRING DIAGRAMS (continued) TIMER THERMOSTAT RIGHT LEFT REAR WARMER WARMER WARMER ELEMENT GREEN WHITE WHITE WHITE WHITE MODEL NUMBER 8572 and 8573 SOLENOID READY BREW WARMER WARMER WARMER LIGHT SWITCH SWITCH SWITCH SWITCH TIMER THERMOSTAT RIGHT LEFT REAR WARMER WARMER WARMER ELEMENT...
  • Page 26 NOTES:...
  • Page 27 NOTES:...
