631
OWNERS MANUAL
For
10 Sunnen Drive
St. Louis, MO 63143
BREWING SYSTEMS
telephone: 314-678-6336
fax: 314-781-2714
www.wellsbloomfield.com
MODELS
POUR OVER BREWER
4543-D2
POUR OVER AIRPOT BREWER
4774-A
Includes:
Installation
Use & Care
Servicing Instructions

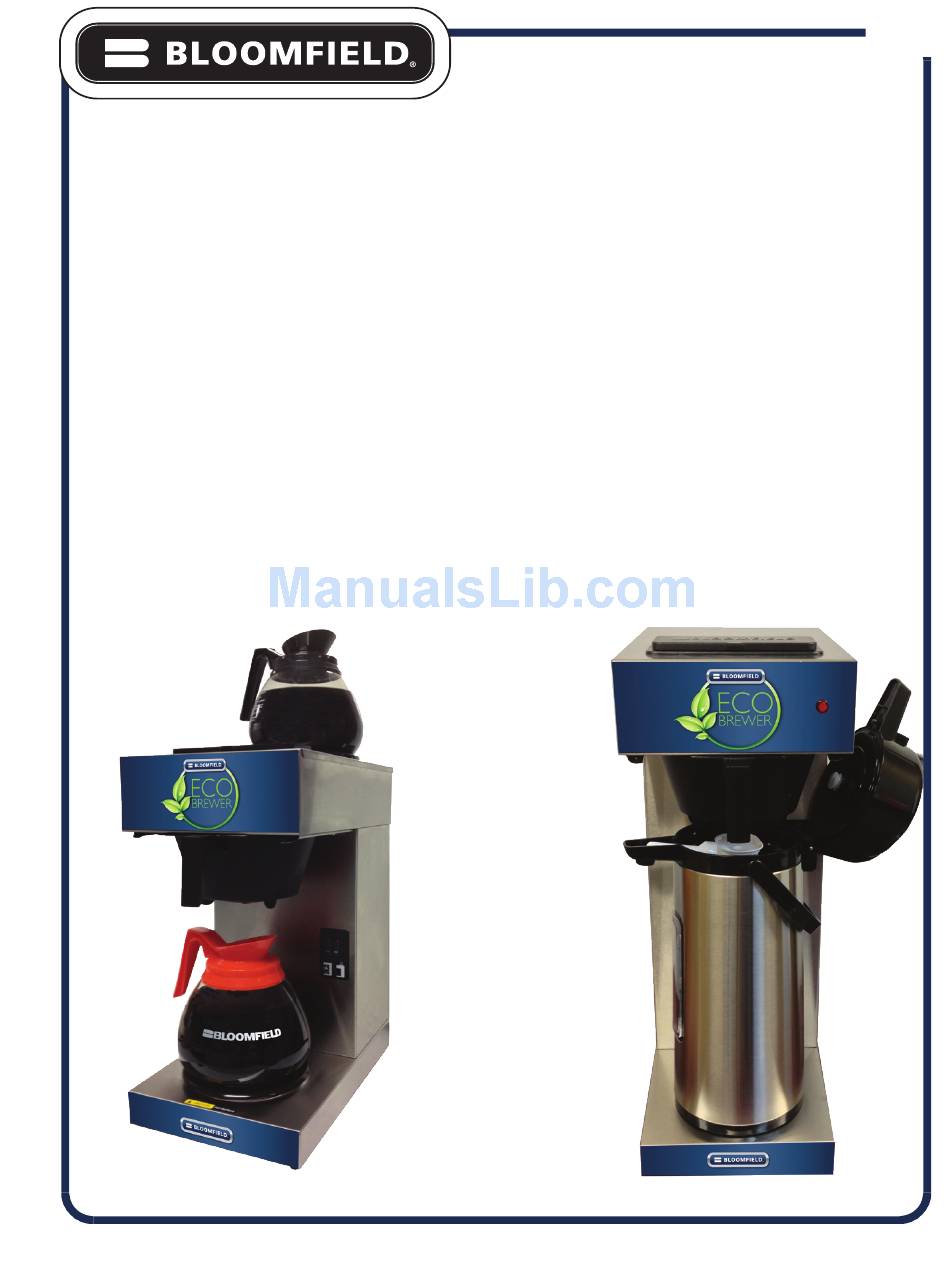

Model 4774-A Airpot Brewer
with optional
7760-ALM Airpot
Model 4543-D2 Brewer
with optional
8900-Series Glass Decanters
Z16993
13
p/n 2M-
Rev. -
M631
0726
Advertisement
Related Manuals for Bloomfield 4543-D2
Summary of Contents for Bloomfield 4543-D2
- Page 1 MODELS POUR OVER BREWER 4543-D2 POUR OVER AIRPOT BREWER 4774-A Includes: Installation Use & Care Servicing Instructions Model 4774-A Airpot Brewer with optional 7760-ALM Airpot Model 4543-D2 Brewer with optional 8900-Series Glass Decanters Z16993 p/n 2M- Rev. - M631 0726...
- Page 2 It also does not apply if the serial nameplate has been removed or unauthorized service personnel perform service. The prices charged by Bloomfield for its products are based upon the limitations in this warranty. Seller’s obligation under this warranty is limited to the repair of defects without charge by a Bloomfield Authorized Service Agency or one of its sub-agencies.
- Page 3 TABLE OF CONTENTS WARRANTY STATEMENT Thank You for purchasing this SPECIFICATIONS Wells Bloomfield appliance. PRECAUTIONS & GENERAL INFORMATION Proper installation, professional AGENCY APPROVAL INFORMATION operation and consistent INSTALLATION INSTRUCTIONS maintenance of this appliance will OPERATION ensure that it gives you the very...
- Page 4 PRECAUTIONS AND GENERAL INFORMATION WARNING: ELECTRIC SHOCK HAZARD All servicing requiring access to non-insulated components must be performed by qualified WARNING service personnel. Do not open any access panels which require the use of tools. Failure to heed this warning can result in electrical shock. WARNING: INJURY HAZARD All installation procedures must be performed by qualified personnel with full knowledge of...
- Page 5 INSTALLATION INSTRUCTIONS READ THIS CAREFULLY BEFORE STARTING THE INSTALLATION IMPORTANT: LEVELING THE UNIT To enable the installer to make Place unit on a firm level surface. a quality installation and to A spirit level should be placed on the top of the unit, at the edge, minimize installation time, the to be sure it is level.
- Page 6 START UP IMPORTANT: INITIAL START-UP BEFORE BREWING COFFEE Never pour more than For initial start-up, or if the brewer has not been used for an 9 cups (2.2 liter) of water extended period of time: into the water reservoir. Please check that your EMPTY brew chamber is assembled correctly, Never pour hot water, with the spring wedged firmly at the bottom of the basket.
- Page 7 BREWING COFFEE PREPARATION CAUTION: Place one (1) genuine Bloomfield BURN HAZARD paper filter in the brew chamber. Exposed surfaces of the Add a pre-measured amount of brewer, brew chamber and fresh coffee grounds. decanter may be HOT to Gently shake the brew chamber to the touch, and can cause level the bed of grounds.
- Page 8 CLEANING INSTRUCTIONS PROCEDURE: Clean Coffee Brewer CAUTION: SHOCK HAZARD PRECAUTIONS: Disconnect brewer from electric power. Do not submerge or immerse Allow brewer to cool. brewer in water. FREQUENCY: Daily IMPORTANT: DO NOT use steel wool, sharp TOOLS: Mild Detergent, Clean Soft Cloth or Sponge objects, or caustic, abrasive or Bristle Brush.
- Page 9 3. Place an empty container under the brew chamber. delimed. Should deliming hoses become necessary, Bloomfield 4. Pour the deliming solution into the pour-over located on top recommends replacing the of the unit.
- Page 10 Coffee level low (pour-over) Too much coffee grounds Adjust amount of grounds Too many filter papers or wrong filter Use one (1) genuine Bloomfield filter per brew paper Brew chamber dispense hole plugged Thoroughly clean brew chamber Brew chamber overflows...
- Page 11 SPARE PARTS Models Spare Parts List Fig No. Parts No. Descripation. 4543 4774 2A-Z17451 Foot 2E-Z17542 Relay 2A-Z17453 Inflow Pipe Silicone 2A-Z17472 Inflow Pipe Silicone 2E-Z17454 Main Heater 2A-Z17455 Outflow Pipe Silicone 2A-Z17477 Outflow Pipe Silicone 2E-Z17456 Auto Thermostat 221°F (105 ) 2E-Z17480 Manual Thermostat 293°F (145 ) 2N-70091UL...
- Page 12 EXPLODED VIEW; 4543-D2 Model: 4543-D2 Drain Pipe...
- Page 13 EXPLODED VIEW; 4774-A Model: 4774-A...
- Page 14 NOTES...
- Page 15 NOTES...
- Page 16 10 Sunnen Drive, St. Louis, MO 63143 telephone: 314-678-6336 fax: 314-781-2714 www.wellsbloomfield.com...
