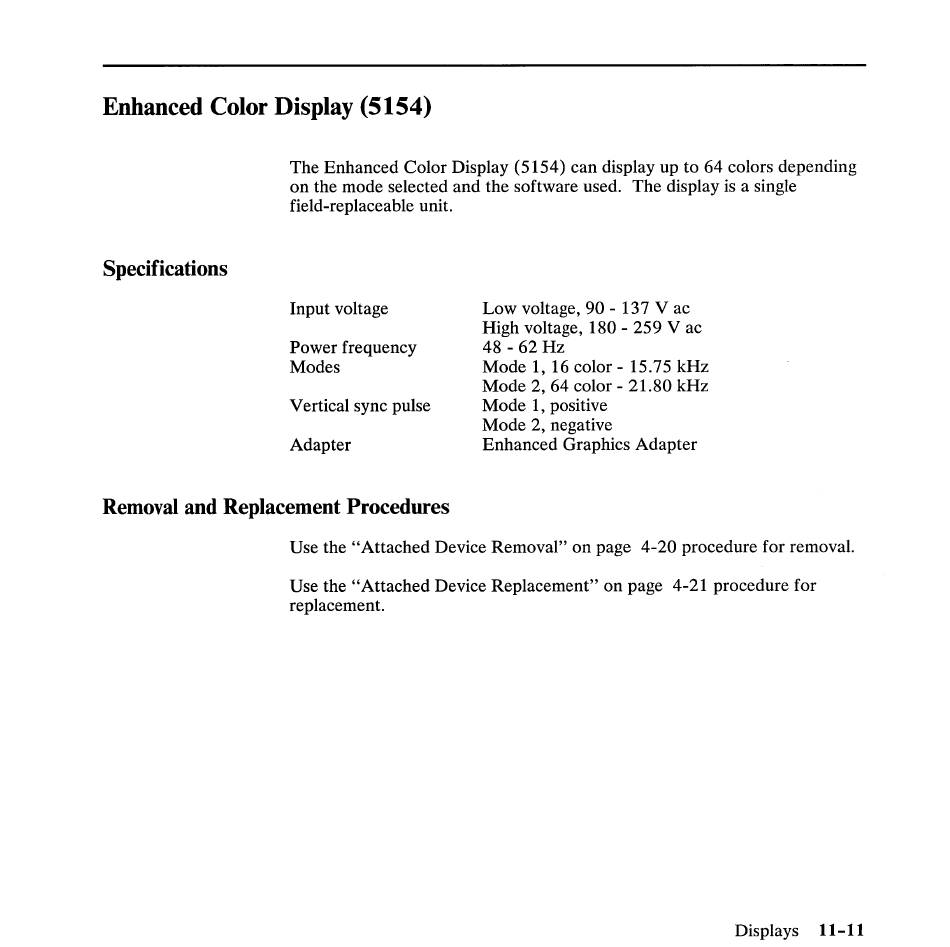

Enhanced Color Display (5154)
The Enhanced Color Display (5154) can display up to 64 colors depending
on the mode selected and the software used. The display is a single
field-replaceable unit.
Specifications
Input voltage
Power frequency
Modes
Vertical sync pulse
Adapter
Removal and Replacement Procedures
Low voltage, 90 - 137 V ac
High voltage, 180 - 259 Vac
48 - 62 Hz
Mode 1, 16 color - 15.75 kHz
Mode 2, 64 color - 21.80 kHz
Mode 1, positive
Mode 2, negative
Enhanced Graphics Adapter
Use the "Attached Device Removal" on page 4-20 procedure for removal.
Use the "Attached Device Replacement" on page 4-21 procedure for
replacement.
