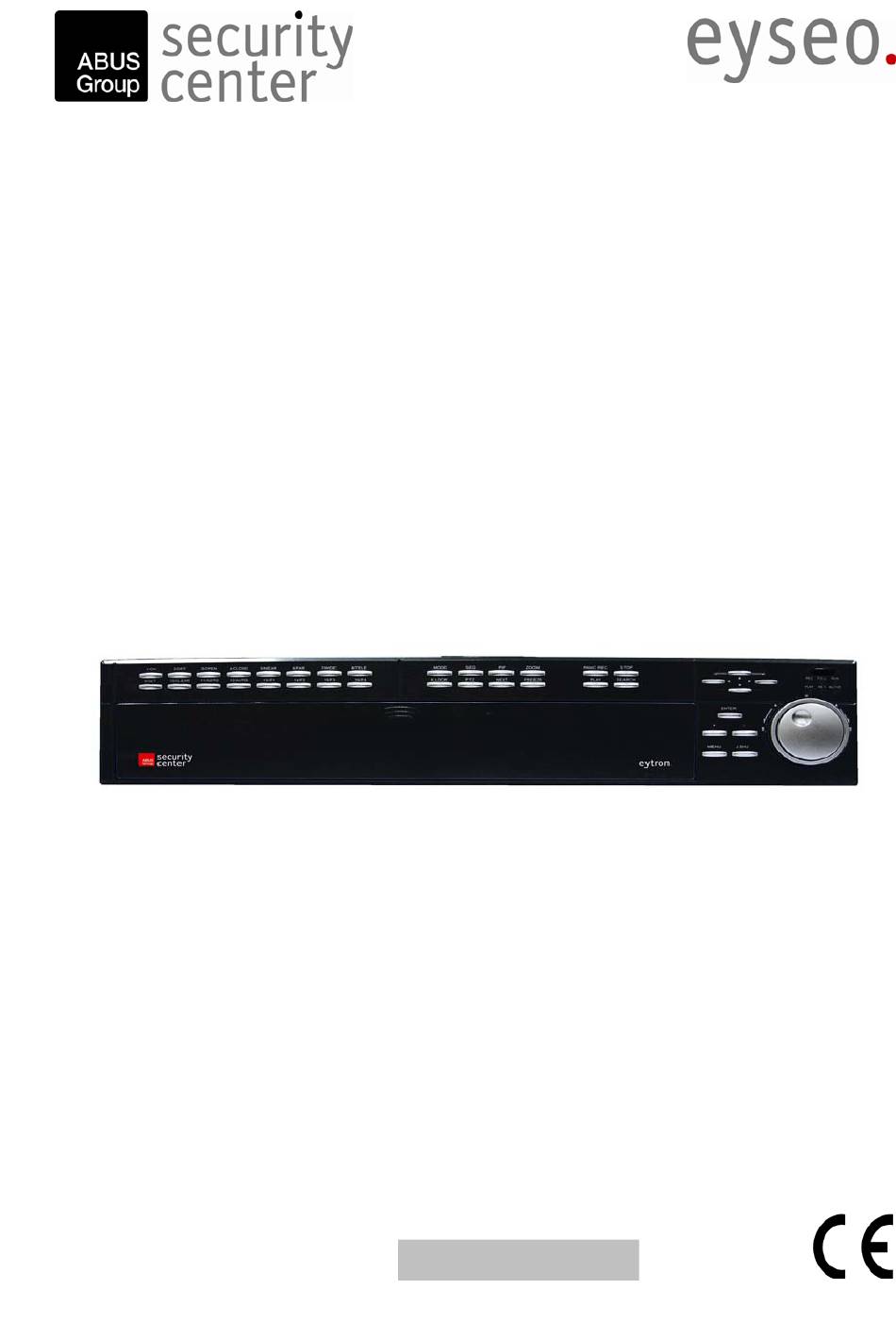

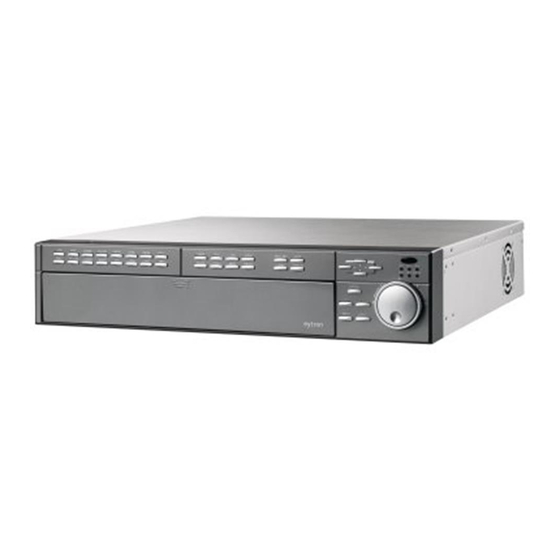

  • Page 1 Eytron JPEG2000 Dual Codec DVR User manual Version: 1.0, 03/2008 TV8931-TV8933...

  • Page 2: Table Of Contents

    Contents 1. Preface ........................ 50  2. Scope of delivery ....................51  3. Features ......................51  4. Precautions ......................52  5. System Design ....................53  5.1 Front Panel ....................53  5.2 Rear Panel ....................55  5.3 Remote Controller ..................56  6. Installation ......................57  6.1 Camera installation ...................

  • Page 3: Preface

    1. Preface Dear Customer, Thank you for purchasing this Eytron digital recorder. You made the right decision in choosing this state-of-the-art technology. This product complies with the current standards of domestic and European regulations. The CE has been proven and all related certifications are available from the manufacturer (www.security-center.org) upon request.

  • Page 4: Scope Of Delivery

    2. Scope of delivery • Eytron JPEG2000 Dual Codec DVR • Remote control • Batteries • Power supply • Power cable • Software CD • Installation instructions 3. Features This Eytron digital recorder has following functions: • Dual Codec: JPEG2000 image recording + H.264 network streaming •...

  • Page 5: Precautions

    4. Precautions The digital recorder and connected components must be kept free of moisture (cellars and similar surroundings are to be strictly avoided). Use of this product for other than the described purpose may lead to damage of the product. Other hazards such as short- circuiting, fire, electric shock, etc., are also possible.

  • Page 6: System Design

    5. System Design 5.1 Front Panel Description of operating controls (1) (2) (5) (6) (7) (8) (13) (14) (15) (16) (10) (11) (12) (c) (d) (e) (f) (g) (h) (j) (k) (l) (m) (n) (o) (p) 1/ON - Press for a full screen picture of camera input 1 2/OFF - Press for a full screen picture of camera input 2 3/OPEN...
  • Page 7 MENU - Press to open the OSD menu J.SHUT - Press to activate the jog-shuttle. Description of control keys and LEDs - In playback mode: Press to switch playback from forwards to reverse. - In programming mode: Press to move the cursor to the left. - In playback mode: Press to increase playback speed.

  • Page 8: Rear Panel

    5.2 Rear Panel Description of rear connectors 4-Channel 8-Channel 16-Channel (1) - RS485 connection to PTZ cameras - 4/8/16 sensor inputs and 1 relay output (2) - Optional VGA output. Gets activated when inserting VGA module TV8934 (3) - Ethernet connection for LAN or Internet access (4) - Not used (5) - 4/8/16 BNC-Camera inputs - 4/8/16 BNC-Camera outputs looped through...

  • Page 9: Remote Controller

    5.3 Remote Controller - Enter or exit Menu - Choose between different viewing modes - The Audio button is disabled - Press to switch to a camera - Use to enter password - Press FRZ to freeze live screen - Press SEQ to start sequence viewing - Press ZOOM to enlarge picture.

  • Page 10: Installation

    6. Installation 6.1 Camera installation Connect the cameras to BNC- Channels 1-16. ※Please do not start the DVR before the camera installation is done. 6.2 Monitor and SPOT Monitor installation Connect the MONTIOR BNC-Output of the Connect the Spot Monitor BNC-Output to a DVR back panel to the “Video In”...

  • Page 11: Sensor And Alarm Installation

    6.3 Sensor and Alarm installation 4-Channel 8-Channel FUNCTION  1 RS 485 D ‐  6  GND  11 ALARM D5  2 RS 485 D +  7  GND  12 ALARM D4  3 RELAY COM  8  ALARM D8  13 ALARM D3  4 RELAY NC  9  ALARM D7  14 ALARM D2  5 RELAY NO  10  ALARM D6  15 ALARM D1  16-Channel FUNCTION  1 RS 485 D ‐ ...

  • Page 12: Ptz Camera Installation

    Relay Output NO/NC/COM The alarm output can be NO (Normally Open) or NC (Normally Closed), depending on the settings in the menu. NO + COM are a normally open circuit. Alarm is triggered when the circuit is closed. NC + COM are a normally closed circuit. Alarm is triggered when the circuit is opened.

  • Page 13: Hdd Installation

    6.5 HDD installation Fitting the hard disk 1. Step: Switch off the digital recorder and open the hard-disk slot. 2. Step: Turn the handle carefully to the left and pull the HDD frame carefully out of the slot. (Keys and fitting screws are contained in the HDD frame.) 3.

  • Page 14: Operation

    7. Operation 7.1 Display - Shows in Live mode current time - Shows in Playback Mode recorded time in playback - Shows in Live mode current date - Shows in Playback Mode recorded date in playback - Displays the camera title of every channel - Displays the recording quality LOW - HYPER - Displays if a client is connected.

  • Page 15: Channel Selection

    - Displays the Recording Resolution: 4CH: 50IPS@720X288 (PAL) / 60IPS@720X240 (NTSC) 100 IPS @360X288 (PAL) / 120IPS@360X240 (NTSC) 200 IPS @360X144 (PAL) / 240IPS@360X120 (NTSC) 8CH/ 100IPS@720X288 (PAL) / 120IPS@720X240 (NTSC) 16CH: 200 IPS @360X288 (PAL) / 240IPS@360X240 (NTSC) 400 IPS @360X144 (PAL) / 480IPS@360X120 (NTSC) - Displays the current Recording Mode: Alarm Recording Motion Recording...

  • Page 16: Pip (Picture In Picture) View

    7.3 PIP (Picture in Picture) view - In full screen mode, press “PIP” to enter PIP mode. - Press “PIP” again to cancel. 7.4 Freeze view - In a split screen mode, press FREEZE and a number button to select the corresponding channel to freeze. Press the number again to cancel freeze.

  • Page 17: Zoom In View

    7.6 Zoom in view - Select the channel to be zoomed and press ZOOM to bring up zoom area. Press ENTER to enlarge this area. Use the direction buttons to move the enlarged part. - Press the ZOOM button again to exit. 7.7 Key lock - To activate the key lock function, press the “K.
  • Page 18 SEARCHBAR Use the Jog-shuttle or +/- keys to select the SEARCH recording percentage of the search bar. Press the “ENTER” button to confirm and [TARGET DATE/TIME] start the playback. 040% SELECT: JOG. SHUTTLE SEARCH: [ENTER], EXIT: [MENU] TIME/DATE START TIME/DATE Shows the start date and time of the [START] 2008/08/21 14:10:01 recording.

  • Page 19: Mouse Operation

    7.10 Mouse operation In order to control the JPEG2000 Dual Codec DVR by mouse, it is necessary to connect the mouse with the PS/2 port at the rear side of the DVR. When using the mouse in Live Mode, the mouse can be used as following. Left Mouse button - Click: To execute - Double click: Switch to full screen...
  • Page 20 Control interface in PLAY mode To start playback press the PLAY icon to switch to playback interface or click on the "SEARCH" icon to open the search dialog. Icon Left click Right click Wheel Icon Left click Right click Wheel Pause Slow Step play...

  • Page 21: Osd (On-Screen-Display) Menu

    8. OSD (On-Screen-Display) Menu 8.1 LOG-IN In order to enter the OSD press the menu icon Enter the password by using the channel selector buttons 1-0 or click on the corresponding OSD buttons. Press Enter or click to confirm password, click to exit.

  • Page 22: Display Setup

    8.2.1 DISPLAY SETUP SCREEN DISPLAY DISPLAY SETUP Here you can set which information is SCREEN DISPLAY displayed at Live and Playback mode. MONITOR SETUP MONITOR SETUP Here you can adjust the VGA display resolution and the monitor color. SELECT MENU ▲▼, & [ENTER] SCREEN DISPLAY LIVE SCREEN DISPLAY...

  • Page 23: Configuration

    MONITOR SETUP VGA SETUP MONITOR SETUP Here you can select between different VGA SETUP resolution: COLOR BAR TEST 1280*1024 / 1024*768 / 800*600 / 640*480 60HZ 60HZ 60HZ / 60HZ 1280*1024 / 1024*768 / 800*600 / 640*480 75HZ 75HZ 75HZ / 75HZ COLOR BAR TEST Here you can adjust the colors of the monitor.
  • Page 24 HDD MANAGEMENT HDD SETUP HDD MANAGEMENT BEGIN HDD SETUP Shows the start Date/Time of recorded data HDD INFORMATION on HDD (Master/Slave). HDD REPLACEMENT SETUP RECORD Shows the end Date/Time of recorded data on HDD (Master/Slave). PLAY Shows the previous playback Date/Time on HDD (Master/Slave).
  • Page 25 LOAD DVR INFO Press the "LOAD DVR INFO” button to retrieve recorded data of HDD. HDD retrieval procedure: 1. Install HDD with new DVR and power on. 2. Press [STOP] button when the DVR is booting. Message “HDD CHANGE MODE-ON“ will be shown. 3.
  • Page 26 CAMERA COLOR SETUP CHANNEL CAMERA ACTIVE SETUP Select the camera to be modified. CHANNEL BRIGHTNESS BRIGHTNESS CONTRAST Adjust image brightness (-32 - 31). SATURATION CONTRAST SCREEN POSITION Adjust color contrast (-32 - 31). SATURATION Adjust color saturation (-32 - 31). SELECT MENU ▲▼, CHANGE VALUE: + Adjust color hue (-32 - 31).
  • Page 27 RECORD DURATION Set here the record duration time when motion is detected. If motion is continuously detected, the duration time is added to the total detection time. For example, the duration is set to 10 seconds and the motion last for 3 minutes, the DVR records for 3 minutes and 10 seconds.
  • Page 28 INTERVAL SETUP SWITCH INTERVAL INTERVAL SETUP FULL SWITCH INTERVAL Select here the switching interval time for FULL 01 SEC FULL SCREEN SEQUENCE display: 01 SEC 1 – 99 seconds. EVENT RECORD EVENT UPDATE TIME 600 SEC Select here the switching interval time for Picture-in-Picture display: 1 –...
  • Page 29 EVENT POPUP SETUP Here you can setup if in case of an alarm EVENT POPUP SETUP the corresponding channel shall be shown CHANNEL in full screen. POPUP ON/OFF EVENT CHANNEL DURATION Select the camera to be changed. POPUP ON/OFF Turn POPUP function ON / OFF. EVENT Select the event that will trigger the POPUP: SELECT MENU ▲▼, &...
  • Page 30 PASSWORD SETUP Enter a password, consisting of up to 8 digits. PASSWORD SETUP USER ID ADMIN USER ID USER PW __________ Select the user to change password. NEW PW __________ CONFIRM __________ USER PW __________ Enter the current password. [◄-►] CHANGE USER ID NEW PW [K1-K10] INPUT PASSWORD Enter the new password.
  • Page 31 SYSTEM INFORMATION S/W VERSION SYSTEM INFORMATION Shows the current firmware version. S/W VERSION VER 1.02 H/W VERSION VER 1.00 H/W VERSION PRODUCT ID Shows the current PCB version. 01P-2005-000001-AR-01 MASTER 1 PRODUCT HDS724040KLAT80 Shows the product ID number. MASTER 2 HDS724040KLAT80 MASTER 1 CD-R...
  • Page 32 During the remote connection, the DVR keeps recording if the client stays at the LIVE mode. It stops recording when the client enters the playback mode. Triplex Allows recording, remote connection and playback simultaneously. The DVR keeps recording while the DVR enters playback either locally or remotely. Under Triplex mode, you may see the playback is slower than under recording in Duplex mode.
  • Page 33 SCHEDULE SETUP Here you can program the recording schedule throughout the week for the JPEG2000 DVR. SCHEDULE SETUP 00-02 02-04 04-06 06-08 08-10 10-12 MODE ALL 1 / 2 SELECT: ▲▼◄► & [ENTER], EDIT: +- & [MODE] A: ALARM M: MOTION C: CONTINUOUS Press the MODE button to select an editing mode.

  • Page 34: Back-Up

    HOLIDAY SETUP The settings of a holiday are the same as the settings for Sunday. Up to 100 days can be set as holiday. Press the MODE button and set the editing mode as EDIT HOLIDAY. Use direction keys to select and press ENTER to mark the day as a holiday. To clear the settings press MODE to set the editing mode to CLEAR ALL DATA or CLEAR MON DATA (clear data month by month).
  • Page 35 BURN Press BURN button to start backup. Use a blank CD. Do not format or reuse a CD even though it is rewritable. When choosing a backup size, leave 20MB as a buffer and do not use the full space of a CD.

  • Page 36: External Device

    8.2.5 EXTERNAL DEVICE TCP/IP SETUP EXTERNAL DEVICE Includes IP CONFIG SETUP, DDNS SETUP, TCP/IP SETUP CONNECTION SETUP, DHCP SETUP, RS-232 SETUP EVENT SERVER SETUP and NVS SETUP. PANTILT SETUP SPOT MONITOR SETUP RS-232 SETUP REMOTE CONTROLLER SETUP Not used. PANTILT SETUP Includes COMMAND SETUP and SPEED SETUP.
  • Page 37 IP CONFIG SETUP MAC ADDRESS IPC CONFIG SETUP Shows the unique MAC Address of the DVR. MAC ADDRESS 00-0A-04-01-02 This address has to be used when setting up the DVR at www.eytronserver.com. IP ADDRESS 192.168.001.002 IP PORT 50000 IP ADDRESS GATEWAY 192.168.001.001 Enter here the IP address of the DVR.
  • Page 38 Shows the remaining time until the next report to the server. LAST REGISTRATION DATE Shows the time of the last registration. Further information how to setup a DDNS account and connect an Eytron JPEG2000 Dual Codec DVR can be found at www.security-center.org. CONNECTION SETUP...
  • Page 39 GATEWAY Shows the gateway of the DVR received from the DHCP server. EVENT SERVER SETUP IP ADDRESS EVENT SERVER SETUP Enter here the IP address of PC that IP ADDRESS 192.168.001.002 executes EVENT SERVER PROGRAM. IP PORT 9998 EVENT SERVER TYPE IP PORT INTERVAL Enter here the...
  • Page 40 RS-232C SETUP This function is not used. RS-232C SETUP SPEED 19200 LENGTH STOP BIT PARITY NONE SELECT MENU ▲▼, CHANGE VALUE: + - PANTILT SETUP COMMAND SETUP PANTILT SETUP Here you can enter the settings to COMMAND SETUP communicate and control with a Pan-Tilt- SPEED SETUP Zoom (PTZ) camera.
  • Page 41 COMMAND, LENGTH, CODE Shows information about different PTZ commands. SPEED SETUP Here you can adjust the movement SPEED SETUP speed of the connected PTZ camera. PAN SPEED TILT SPEED ZOOM SPEED FOCUS SPEED SELECT MENU ▲▼, CHANGE VALUE: + - SPOT MONITOR SETUP SWITCHING INTERVAL SPOT MONITOR SETUP...

  • Page 42: Factory Default

    8.2.6 FACTORY DEFAULT Select here specific menus or ALL and FACTORY DEFAULT then press the RUN button to set factory default values. SCREEN DISPLAY CAMERA COLOR SETUP Entered password will not be affected. MOTION SETUP PANTILT SETUP SCHEDULE SETUP CONFIGURATION SELECT MENU ▲▼, &...

  • Page 43: Possible Recording Time

    10. Possible recording time 4-Channel recorder Possible recording time shown in hours Quality HDD Size (GB) High Super Hyper 14 KB 19 KB 24 KB 29 KB 32 KB 1.000 Possible recording time shown in hours Quality HDD Size (GB) High Super Hyper...

  • Page 44: Specifications

    11. Specifications Model 4 / 8 / 16-Channel JPEG2000 Dual Codec DVR 4 / 8 / 16-CH VIDEO IN 1.0 VP-P，75OHM (BNC TYPE) Video Input Video I/O Video Output 2 x (BNC TYPE) Monitor & Spot Monitor VGA Output Support TFT LCD Monitor (Optional) FULL: 720(H) ×...

  • Page 45: Faq (Frequently Asked Questions)

    VCR, Backup via IE ,CD-R back-up(Include CD Backup Back-up method Back-up player),USB backup RS485，supports PELCO D and other protocols PTZ Control RS232 Controls DVR host through RS232 4-CH: 4 Alarm Inputs Alarm Input 8-CH: 8 Alarm Inputs 16-CH: 16 Alarm Inputs Alarm Output 1 (Programmable alarm output duration) Remote Controller...
  • Page 46 Question: Is there any chance of viewing recorded data, after the HDD has been cleared? Answer: There is a chance of being able to view the deleted data, but the user will only be able to view, not to save data. Solution: During booting the DVR press and hold “PLAY”.
