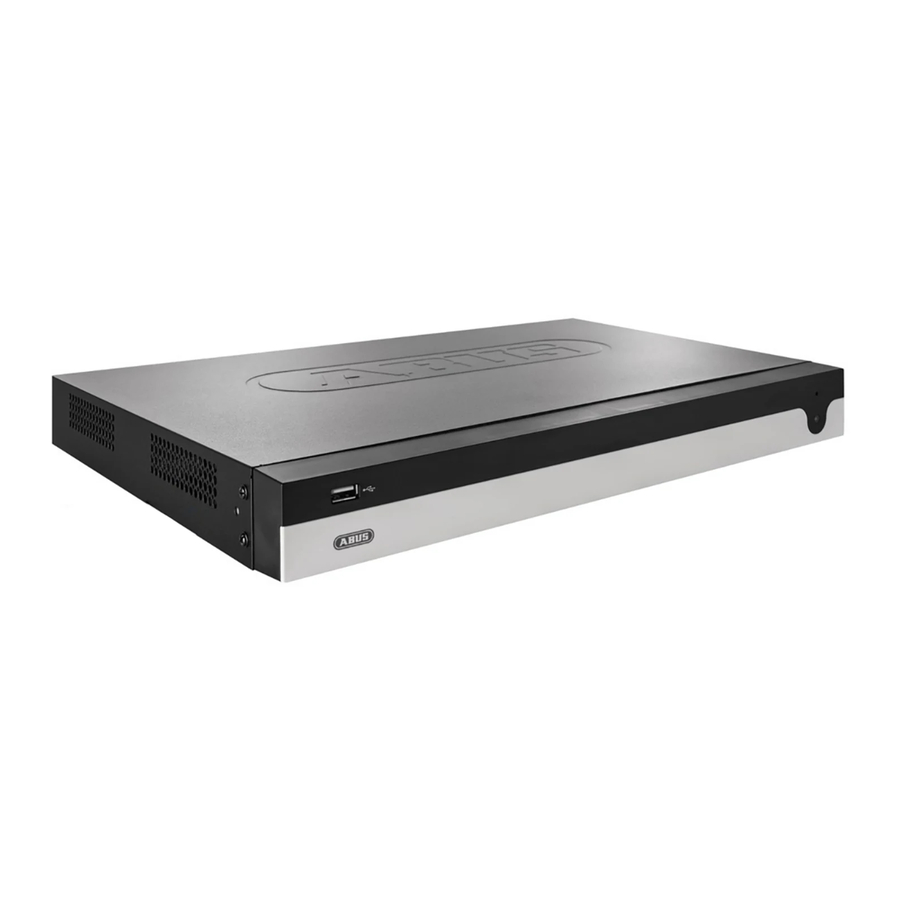

- Page 1 ABUS embedded NVR Web interface user manual Date: 19.12.2019 Firmware: 4.x.x...
- Page 2 This user manual contains important information on start- ing operation and using the device. Make sure that this user manual is handed over when the product is given to other persons. Keep this user manual to consult later. You will find a list of contents with the corresponding page numbers in the contents.
-
Page 3: Table Of Contents
Using IPv6 ..................................10 Dual-Stack and Dual-Stack Lite (DS Lite) ........................10 Setting up port forwarding (IPv4)........................... 10 Setting up the ABUS server (IPv4) ..........................11 DDNS for IPv6 (IPv6) ..............................11 Access to DS Lite connections (IPv6) ........................... 11 Logging in for the first time............................. - Page 4 Contents General information on local settings ..........................22 Live cast parameters ..............................22 Record file settings ................................ 22 Image/clip settings ................................. 23 Setting: System ................................24 General information on system ............................24 System settings ................................24 Overview ..................................24 Time settings ................................. 24 Output menu ..................................
-
Page 5: Important Safety Information
Important safety information Important safety information Explanation of symbols General The following symbols are used in this manual and on the Before using this recorder for the first time, please read device: the following instructions carefully and observe all warn- ing information, even if you are familiar with the use of Symbol Signal... -
Page 6: Installation
Note greatest of care. Should you identify any omis- sions or inaccuracies, please contact us at the ad- Compatible devices: dress shown on the back of the manual. ABUS NVR10010 Security-Center GmbH does not accept any liabil- NVR10020 ity for technical and typographical errors, and re-... -
Page 7: Compatibility
Compatibility Compatibility General Compatible recorders This manual describes the use of the ABUS embedded Device type Item number recorder via the integrated web server. Information on NVR10010, NVR10020, NVR10030, NVR10040, compatible cameras and other components can be NVR10050,NVR10020P, found either in the basic manual (local interface) or on NVR10030P the ABUS website. -
Page 8: Image Display Performance
Compatibility approach reduces the bandwidth and requires less Image display performance processing power for decryption on the PC. Select sub-stream In playback view, the cameras are played back in the corresponding quality of the recording (main stream). Depending on the application and camera type, this may mean that not all cameras can be displayed at once. -
Page 9: Introduction
PC. In simple cases, both the PC and the recorder are located on the same local network. Install the ABUS IP installer (Windows) on your PC and 192.168.0.5 start the program. The program searches your local net- 192.168.0.4... -
Page 10: External Access (Internet)
Setting up port forwarding (IPv4) tion. This means that the router provides access to the internet via both the IPv4 protocol and IPv6. The ABUS In order for the recorder (web interface) to be accessible embedded recorder supports both protocols as standard. -
Page 11: Setting Up The Abus Server (Ipv4)
IPv4 net- work (receiving point). Additional services must be used Instructions on how to set up your recorder for the ABUS to allow external access in such cases. server are stored in the downloads area for the recorder... -
Page 12: Logging In For The First Time
The "Static-Access.NET" service makes it possible to convert IPv4 data packets from an IPv4 network (receiv- Open file "ABUS Rekorder Web-Plugin.exe" to start the ing point) into IPv6 packets. These IPv6 packets can then installation. Once the plug-in is installed, the web inter- be provided to the recorder via normal port transfers on face and all of its functions can be used. - Page 13 Note: An Internet connection is essential for using this service. You can add devices in the “ABUS Link Station” app very easily by scanning the QR code of the device. This QR code is included in the scope of delivery or you can use the QR code displayed here in the menu.
-
Page 14: Live Cast
Live cast Live cast Logout Menu bar PTZ control Camera list Action bar View bar General information on live image Using the menu bar Live cast starts automatically once you have logged into The following options are available: the web interface. The live image function provides the Parameter Description option of displaying live images and executing camera... -
Page 15: Using The Action Bar
Live cast stream "2" if one of the two sides does not have enough bandwidth. • If you are intentionally accessing the recorder via the internet with very low bandwidth, you can ac- tivate transcoded stream "3" to request an image transfer with very low resolution and bit rate (e.g. -
Page 16: Ptz Control Menu
Parameter Description Move the camera in the desired direc- PTZ con- tion using the buttons. Manually ad- trol just the zoom , focus Select the audio output of the recorder for two-way and iris . The audio control via the web interface. button activates the horizontal scan. -
Page 17: Playback View
Playback view Playback view Logout Menu bar Archive list Calen- Playback stream View bar Action bar Playback controls Timeline Time tracker General information on playback Playback function areas Playback allows recorded video data from cameras on The playback view is divided into the following function the recorder to be played. -
Page 18: Using The Archive List
Playback view Using the archive list Using the playback controls The playback controls are the core element of playback. The basic functions for playing recorded data are pro- vided here. Meaning of the symbol tion The archive list contains the recordings of all cameras Reverse play connected to the recorder. -
Page 19: Export Functions
Playback view (4) Activate the e-PTZ function (depends on camera) Activate audio for selected camera (red frame) Using the timeline and calendar and adjust the volume The most important control element on the timeline is the (6) Download the recorded data from the recorder time tracker. -
Page 20: Image Export
Image export Image export Logout Menu bar Start download Select data Define filters Image export You can download the stored snapshot data from the re- corder hard disk drive directly to your PC from here. Se- lect one or more files and click the "Download" button to start the data transfer. -
Page 21: Settings
Settings Settings Menu bar Logout Configuration Configure VCA settings General settings The recorder system is configured in the "Settings" menu. Note The settings dialogues are divided into the following ar- Some of the functions described in this manual eas: may not be available for your recorder (e.g. moni- tor outputs), depending on the model. -
Page 22: Setting: Local
PC user. Encryption Key Here you can type in your verification code which is used for the video stream encryption (ABUS Link Station) Live cast parameters Fire Point Here you can choose between several... -
Page 23: Image/Clip Settings
Setting: Local Save down- Path for storing file downloads loaded files to Action: Image/clip settings Parameter Description Save snapshots Path for storing snapshots from live in live cast to cast Action: Save snapshots Path for storing recordings during playback Action: Save clips to Path for storing file downloads Action:... -
Page 24: Setting: System
Setting: System Setting: System Time synchronisation via the network General information on system using the NTP server. Important: The NTP time does not General system information can be displayed in this recognise time zones, so the time menu, and firmware updates can be carried out. The sys- zone must be adjusted every time. -
Page 25: Output Menu
Default Reset the recorder back to its default factory settings. Note Use the ABUS IP installer to search for cameras Export Export the device configuration and on your network. You can determine the neces- network camera lists (programmed cameras). -
Page 26: Quick Add
"ABUS". Port Specify the management port which is used to establish the connection between the camera and recorder. For ABUS cameras, use port 8000 or Enter the user name for the adminis- User name trator account for the camera. Password Enter the password for the adminis- trator account for the camera. -
Page 27: Managing Users
Setting: System Stream type All values below "Main stream" will be Managing users used for the main stream (live+record- ing). All values below "Sub-stream" will be used for the sub-stream (multi-view live). Sub-stream Enables the sub-stream. Type RTSP Transfer pro- Use the auto setting, provided that there tocol are no special requirements. -
Page 28: Fault Rectification
Fault rectification Fault rectification Before contacting the Service department, read the following information to determine the possible cause of any fault. Fault Cause Solution No power Power cable not connected Connect the power cable properly to the socket Power switch set to OFF Set power switch to ON If necessary, use another device at the No power supplied from socket... - Page 29 ABUS Embedded NVR Recorder Web interface user manual Manufacturer ABUS Security-Center GmbH & Co. KG Linker Kreuthweg 5 86444 Affing (Germany)
